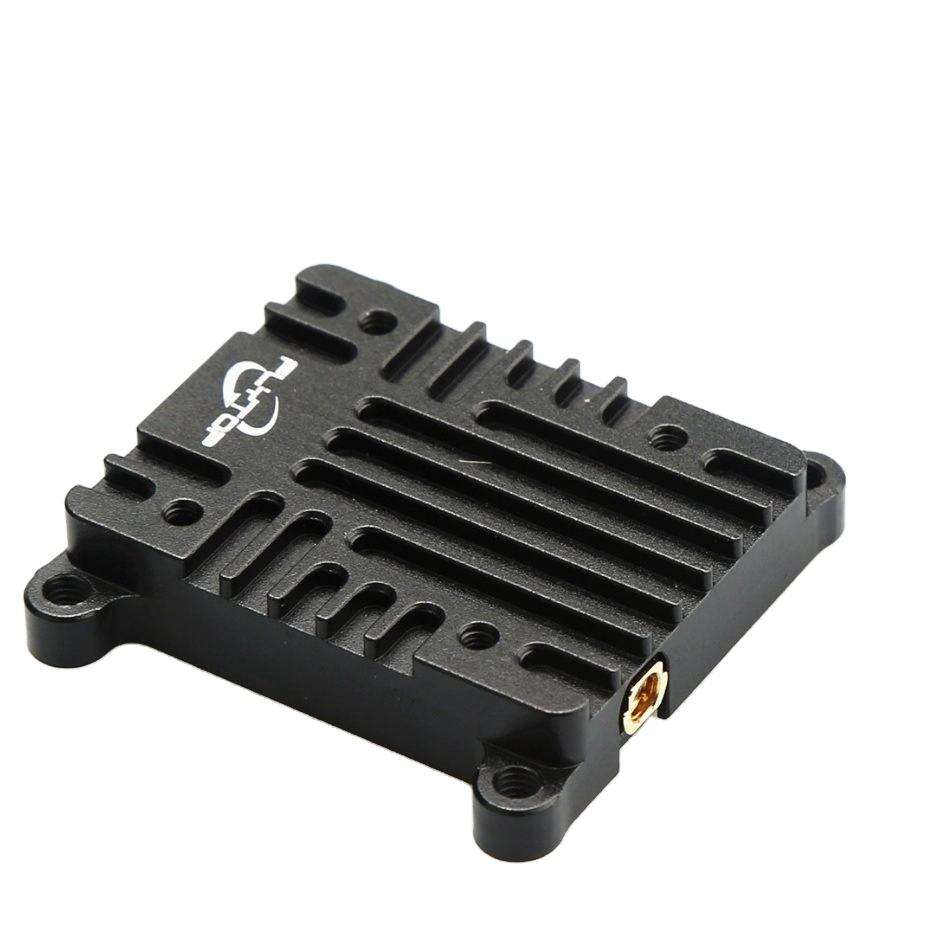

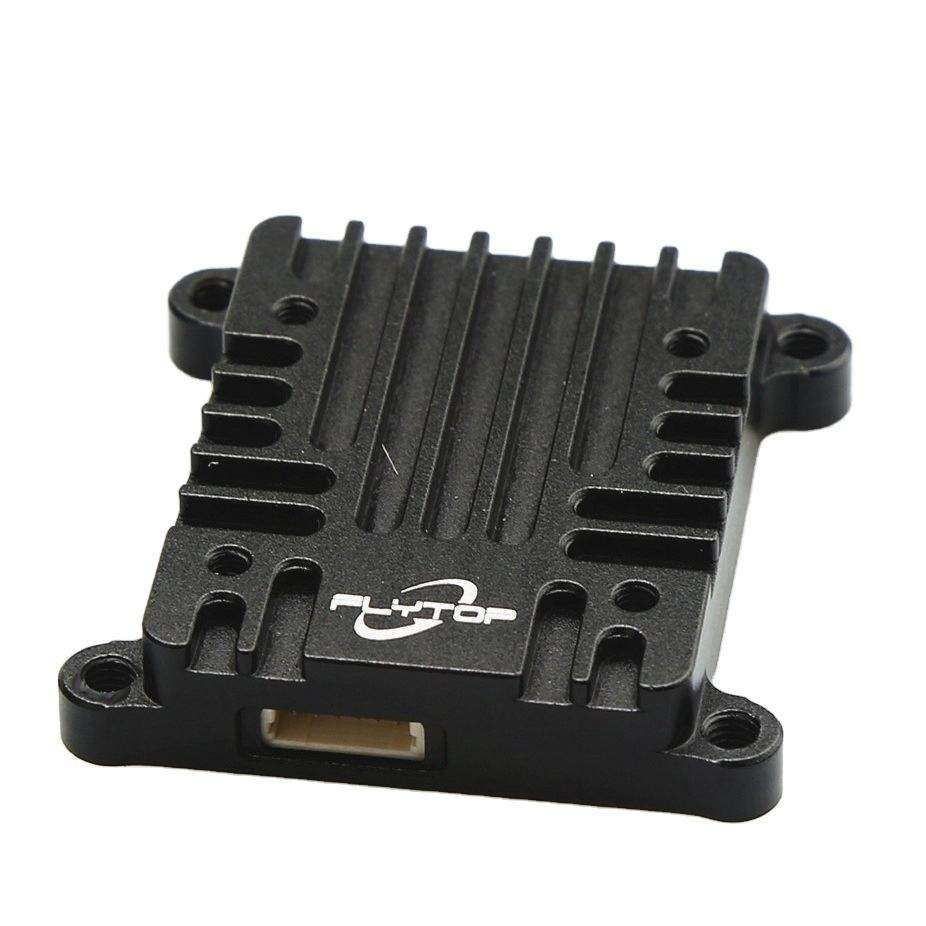

FLYTOP 4.9G 5.8G 2.5W 56CH OSD VTX
Specifications
Model: FLYTOP-VT25
Operating Frequency: 4.9GHz / 5.8GHz Dual-Band Adjustable
Output Power: 0mW, 25mW, 400mW, 800mW, 1500mW, 2500mW Multi-tier Adjustable
Input Voltage: 6V - 36V
Configuration Method: Physical Button / OSD Menu Control
Working Current: Less than or equal to 450mA @ 12V 800mW / Less than or equal to 800mA @ 12V 2500mW
Output Channels: 56 Channels (Covers A, B, E, F, R, X, L bands)
Antenna Connector: MMCX
Mounting Pattern: 20mm × 20mm and 30.5mm × 30.5mm Dual Compatibility
Weight: 14.9g (Without antenna and power cable)
Video Format: NTSC / PAL Auto-sensing
Dual-Band 4.9G and 5.8G versatility allows you to switch between standard 5.8GHz and ultra-clean 4.9GHz bands, bypassing heavy signal interference and crowded airwaves on the field.
2500mW Massive Punch drives an incredibly strong video link, cutting through concrete walls, foliage, and urban noise with total signal clarity for extreme long-range flights.
Dual-Spec Mounting Holes feature both 20x20mm and 30.5x30.5mm patterns on a single board, giving you ultimate freedom to mount this powerhouse in small racing quads or heavy-lift cinelifters.
14.9g Insanely Lightweight engineering packs top-tier 2.5W transmission power into a micro-sized frame footprint, ensuring your custom high-performance builds save crucial grams.
56 Comprehensive Channels stretch across A, B, E, F, R, X, and L bands, allowing you to easily pinpoint the clearest frequency and fly with multiple pilots without stomping on their feeds.
Flexible OSD Control integrates seamlessly with your flight controller stack, giving you the ability to shift channels, swap bands, or adjust power outputs straight from your radio sticks.

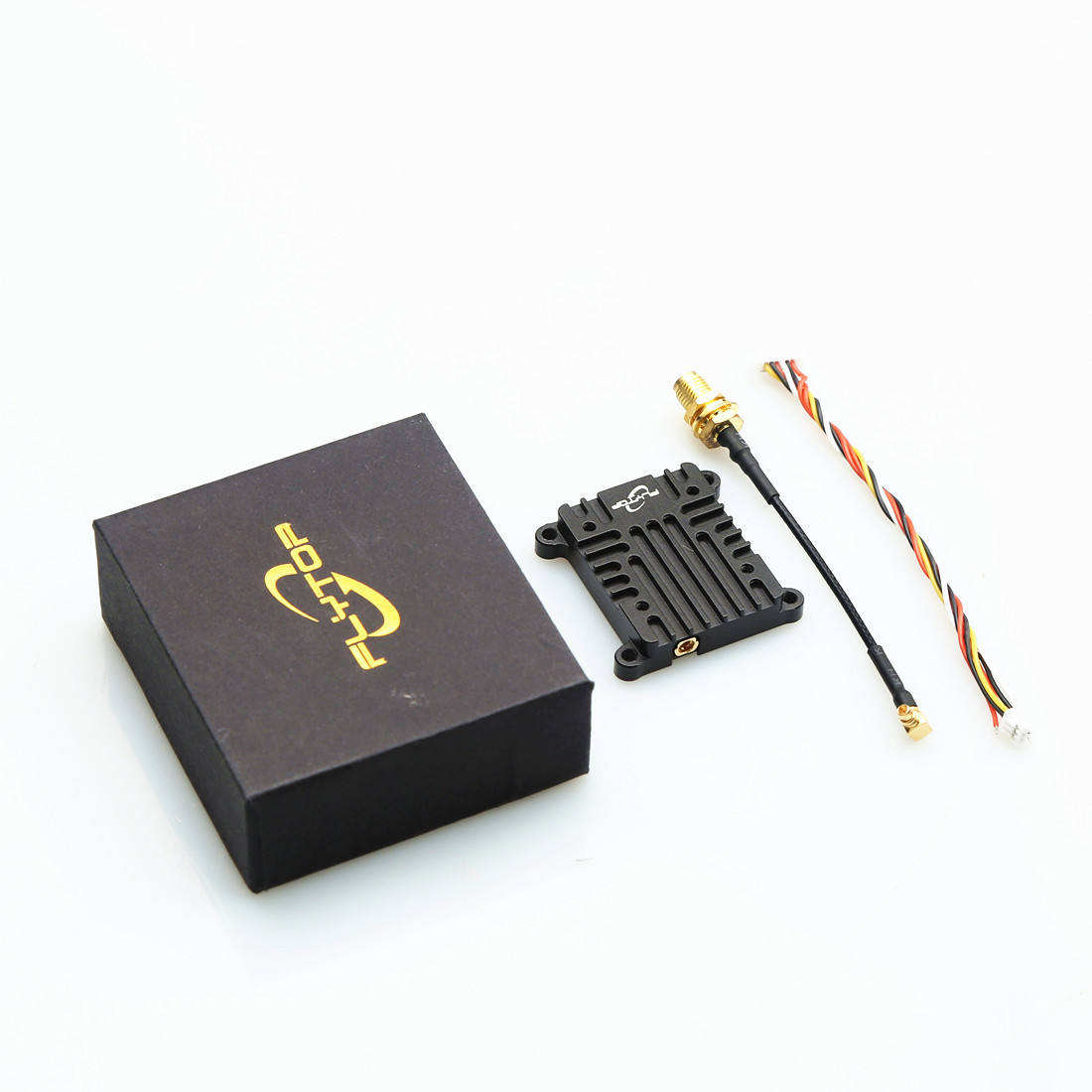

What is in the Box
1x FLYTOP 2.5W 4.9G/5.8G High Power FPV VTX Module
