4.9G 6.1G 5W 88CH SMA Long Range VTX
Specifications
Model: 4.9G 6.1G 5W VTX
Input Voltage: DC 7V - 36V (2S - 8S LiPo)
Working Current: 1.1A @ 20V
Operating Temperature: -10 to 65 degrees Celsius
Weight: 17.5g (Without antenna)
Dimensions: 38mm × 25.5mm × 13.5mm
Mounting Pattern: 30.5mm × 30.5mm (M3 Threaded Holes)
Channels: 88CH
Frequency Range: 4900MHz - 6100MHz
Output Power: 250mW, 500mW, 1W, 1.5W, 5W
Control Protocol: IRC Tramp (Supports OSD Adjustment)
Modulation Type: FM
Channel Bandwidth: 8MHz
Antenna Connector: SMA (External Thread Inner Hole)
Video Format: NTSC / PAL Auto-sensing
Maximum Launch Power: 36dBm plus or minus 1dBm MAX
5000mW Devastating Output delivers an unparalleled 5W of raw transmission power, blasting through thick concrete structures, deep mountain gaps, and urban interference for ultimate long-range dominance.
4900MHz to 6100MHz Frequency span unlocks an expansive 88-channel spectrum, allowing you to completely escape crowded 5.8GHz public airwaves and lock into dedicated ultra-clean bands.
Heavy-Duty SMA Antenna interface brings a full-sized, ultra-durable threaded connection to your rig, completely eliminating the fragile nature of micro-connectors and handling heavy long-range antennas with ease.
17.5g Insane Power-to-Weight ratio packs an industrial-grade 5W output into an incredibly lightweight footprint, ensuring your long-range cruisers or cinelifters retain maximum flight efficiency.
Up to 8S Direct Input handles high-voltage 7V to 36V power systems natively, letting you solder directly to your main power leads without relying on bulky external voltage regulators.
IRC Tramp Integration pairs perfectly with Betaflight, ArduPilot, or INAV, giving you the ability to manage your output power or switch channels straight from your radio transmitter OSD menu.
What is in the Box

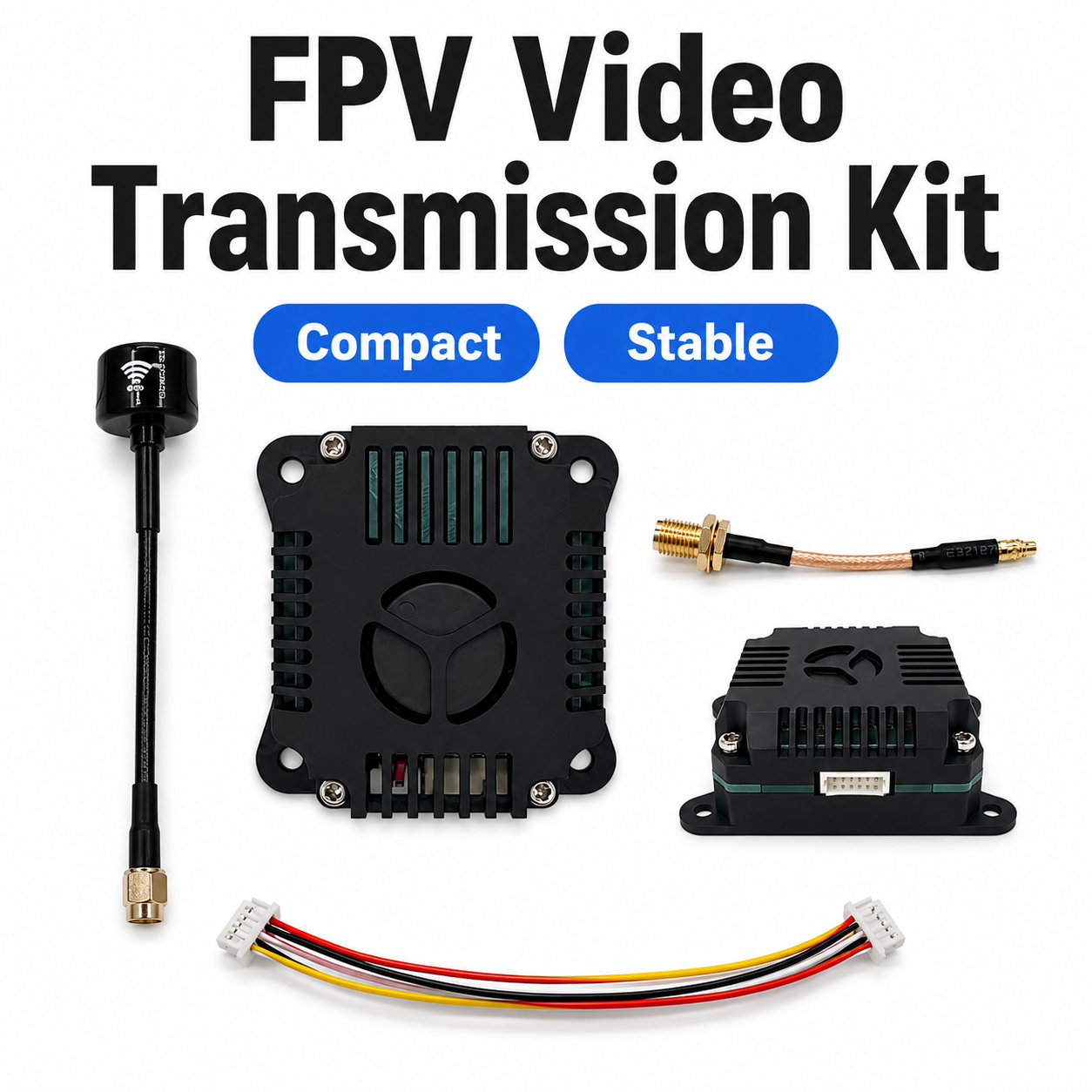

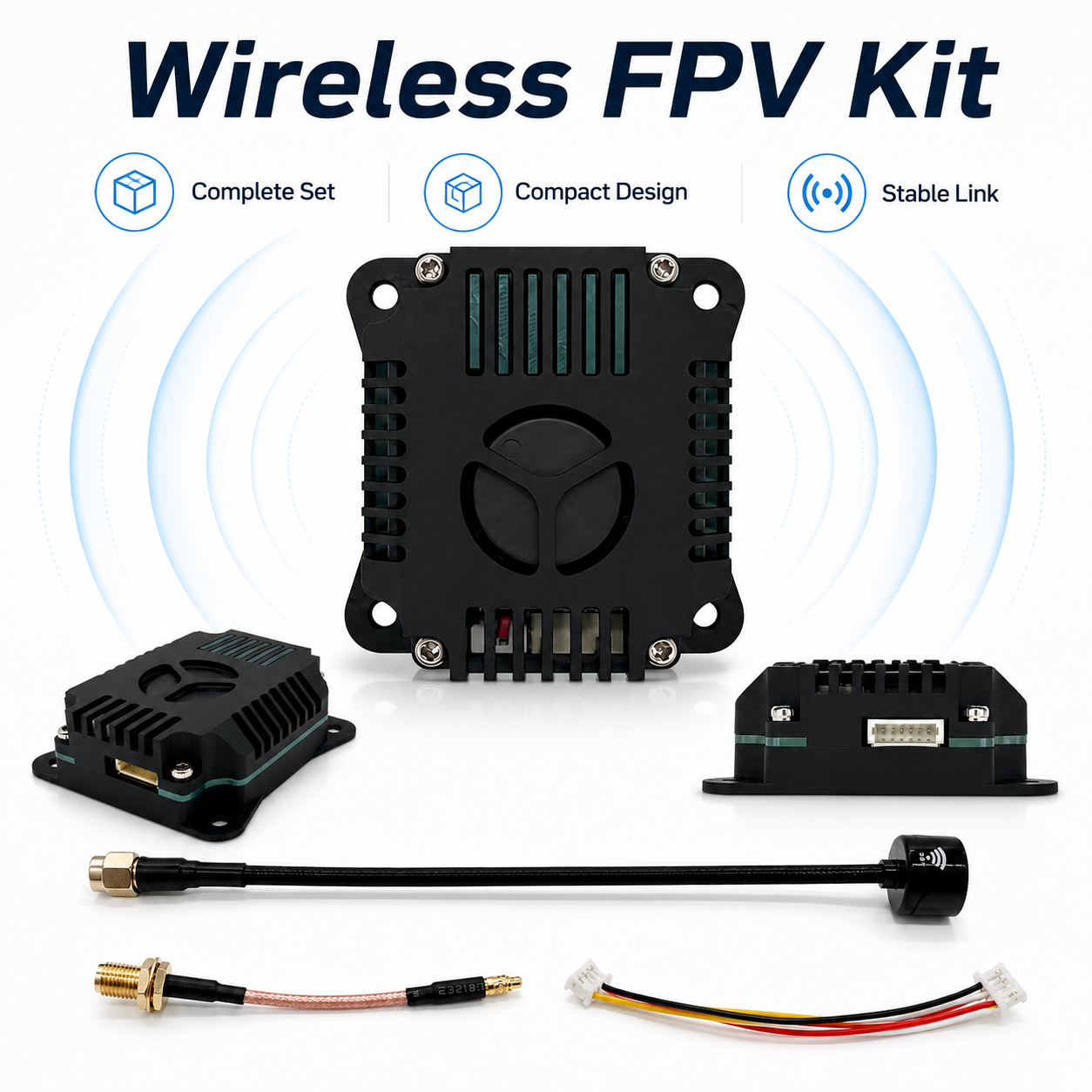

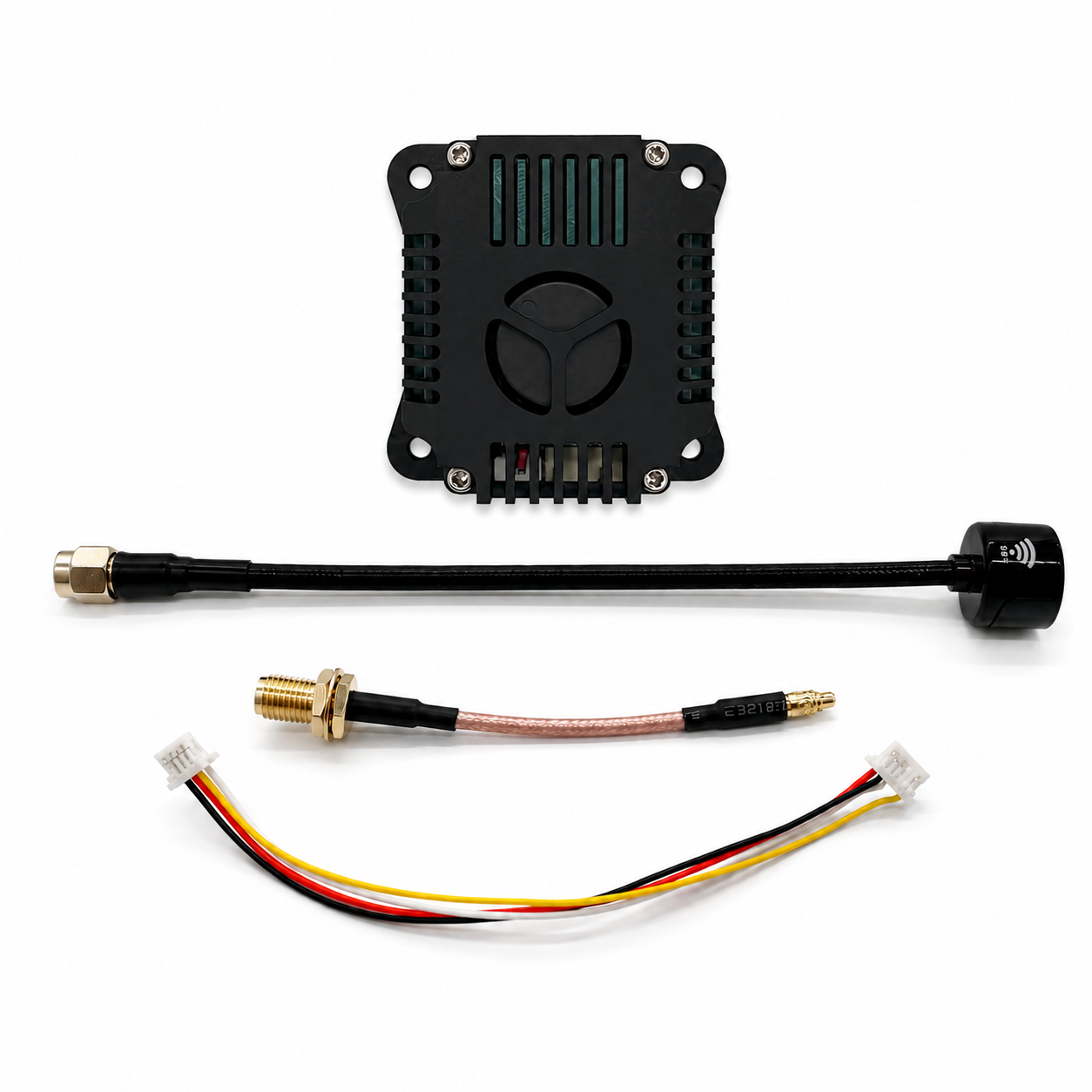

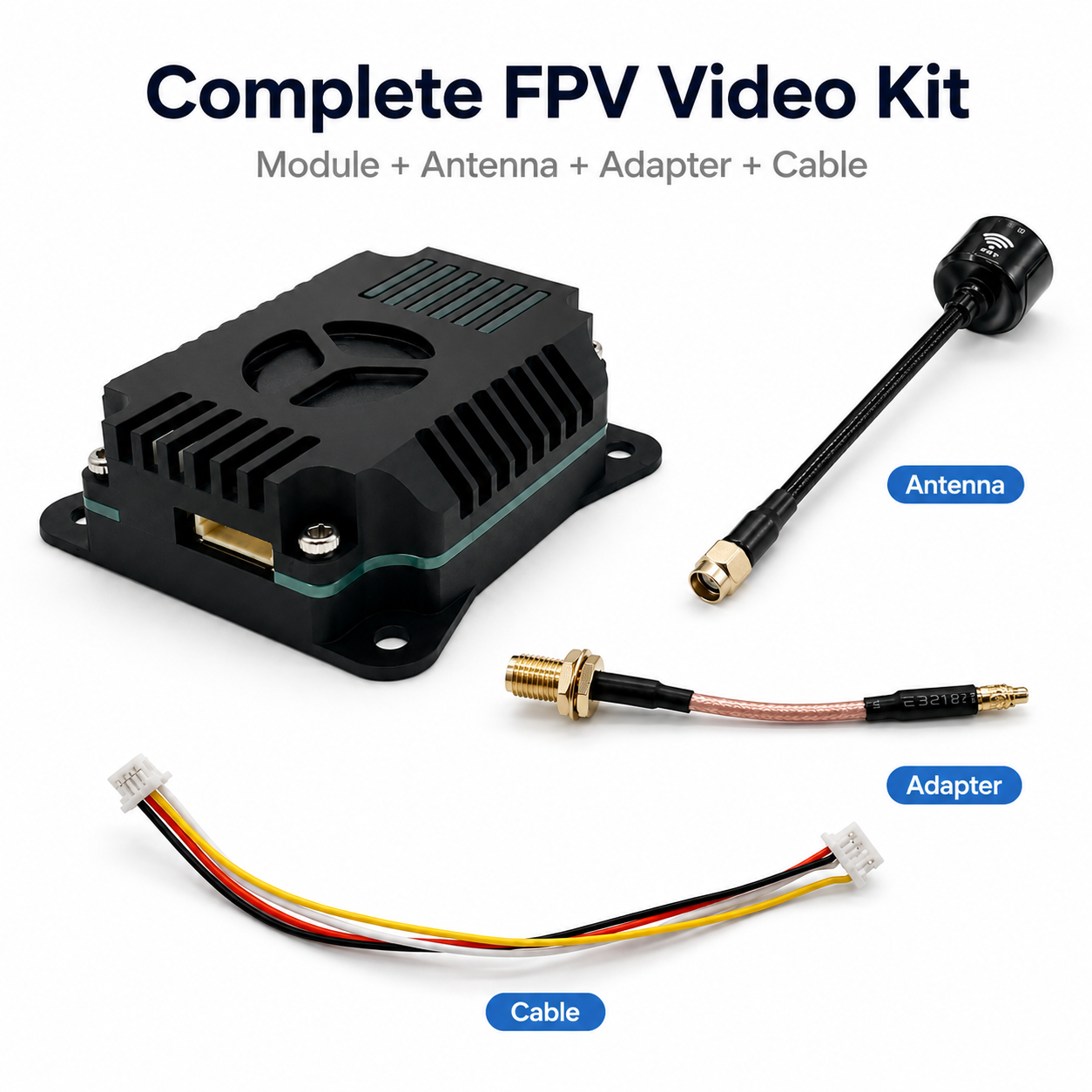

1x 4.9G/6.1G 5W High Power FPV VTX Module
1x Heavy Duty Connection Cable Harness
1x Hardware Mounting Pack
