5.8G 3W CNC Heat Sink Long Range VTX
Specifications
Model: 5.8G 2.5W VTX
Input Voltage: DC 7V - 36V (2S - 8S LiPo)
Working Current: 1.2A @ 12V (At 2500mW)
Operating Temperature: -10 to 60 degrees Celsius
Weight: 28g
Dimensions: 38mm × 38mm × 13mm
Mounting Pattern: 30.5 × 30.5mm (M3 holes)
Antenna Connector: MMCX
Video Format: NTSC / PAL Auto-sensing
Output Power: 25mW, 500mW, 1000mW, 2500mW, 3000mW
VTX Protocol: SmartAudio (TBS)
3000mW Insane Output Power unleashes the ultimate long-range penetration, smashing through dense concrete, deep valleys, and miles of airspace with absolute signal clarity.
Full CNC Metal Shell provides bulletproof armor against violent high-speed crashes while acting as a massive heavy-duty heatsink to keep power output rock-solid and prevent thermal throttling.
Up to 8S Voltage Support hooks up directly to 7V-36V power systems, eliminating the need for extra BEC regulators and keeping your build clean and weight-efficient.
PitMode and Clean Booting design locks frequencies instantly upon power-up, meaning you can plug in your battery on the bench without blasting out your buddies' video feeds.
Built-In Power Self-Check diagnostics monitor the transmission state in real time, giving you the ultimate peace of mind before launching into long-range exploration.
MMCX Antenna Connection delivers a heavy-duty, snap-lock RF interface that is significantly more durable than fragile U.FL connectors, preventing accidental pop-offs during hard freestyle maneuvers.

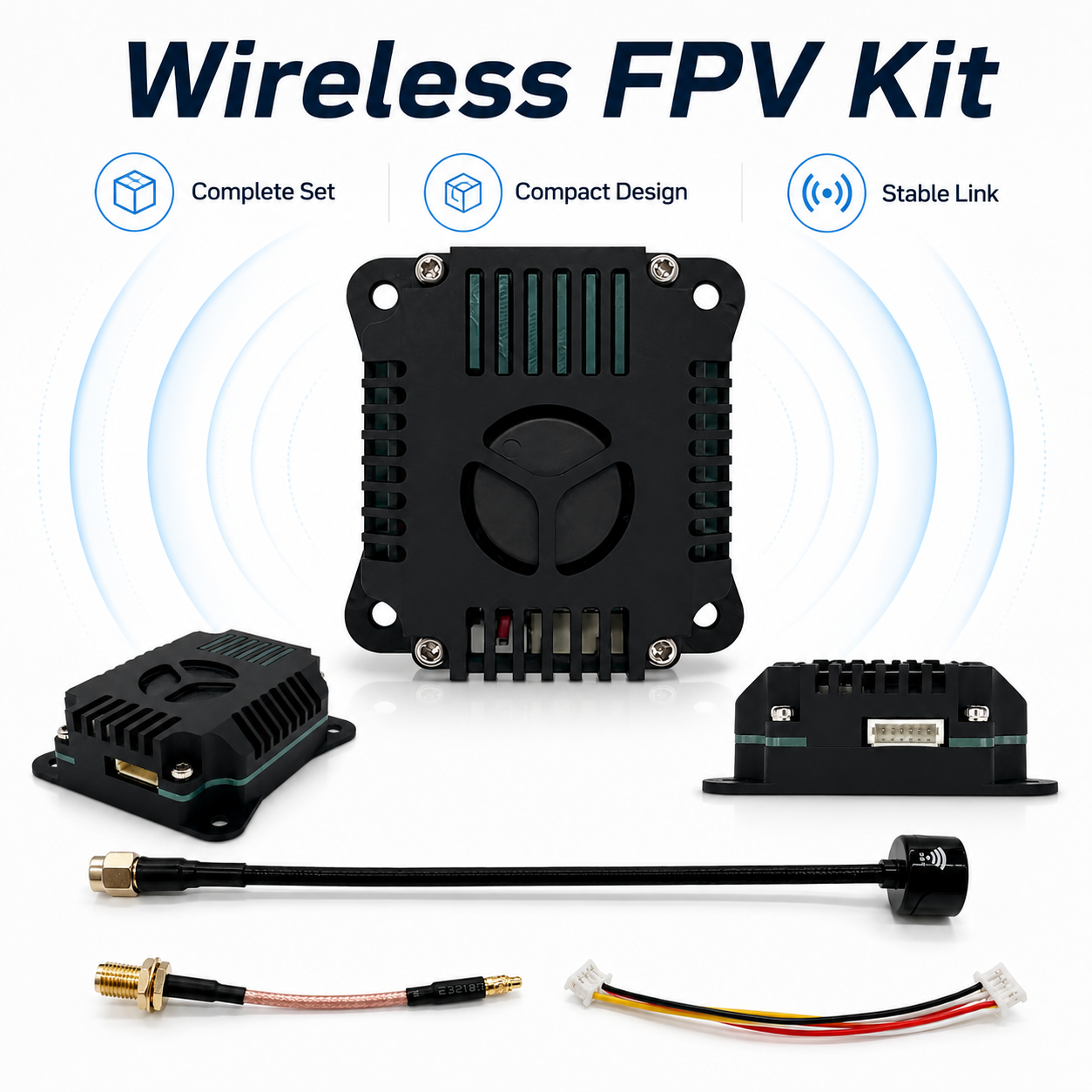

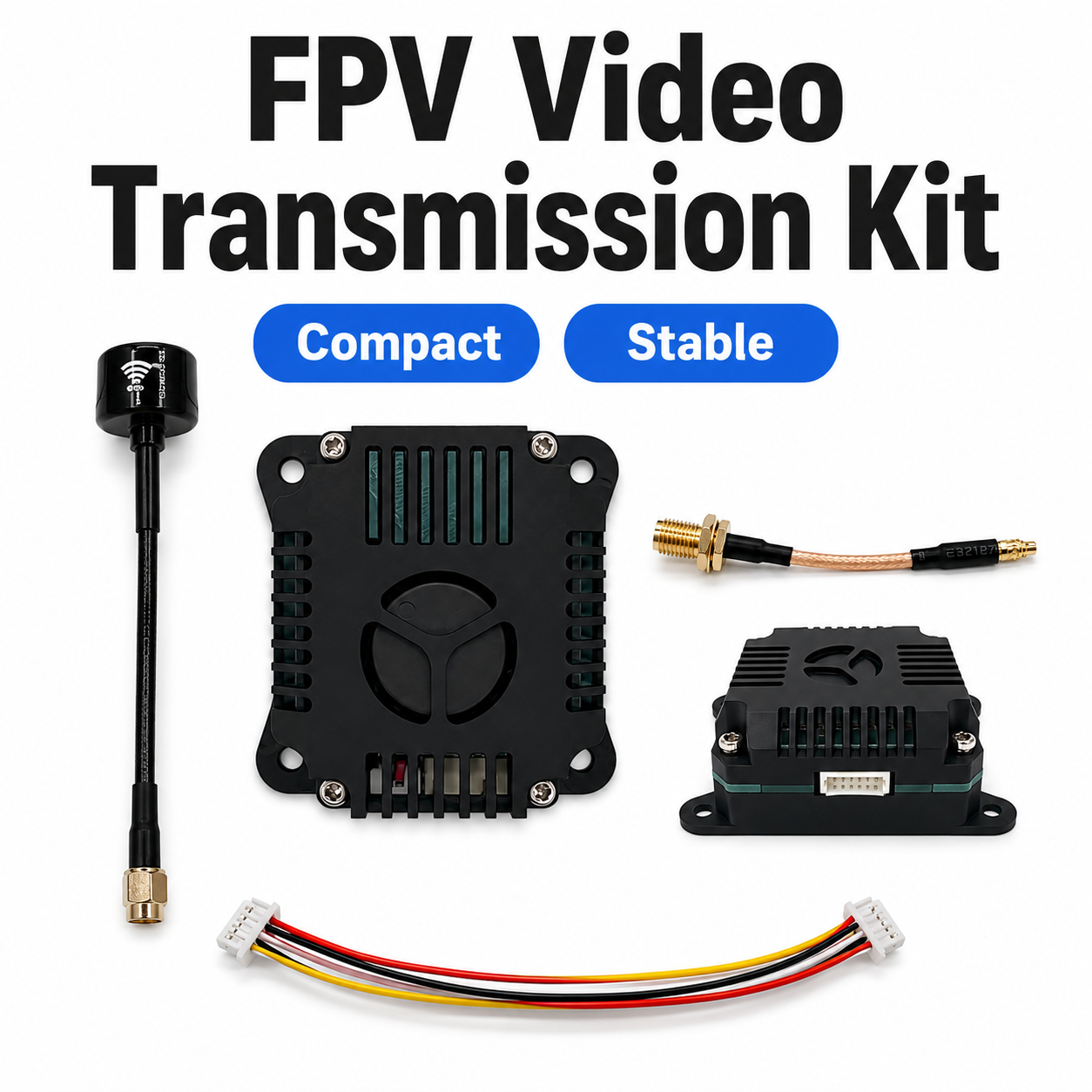

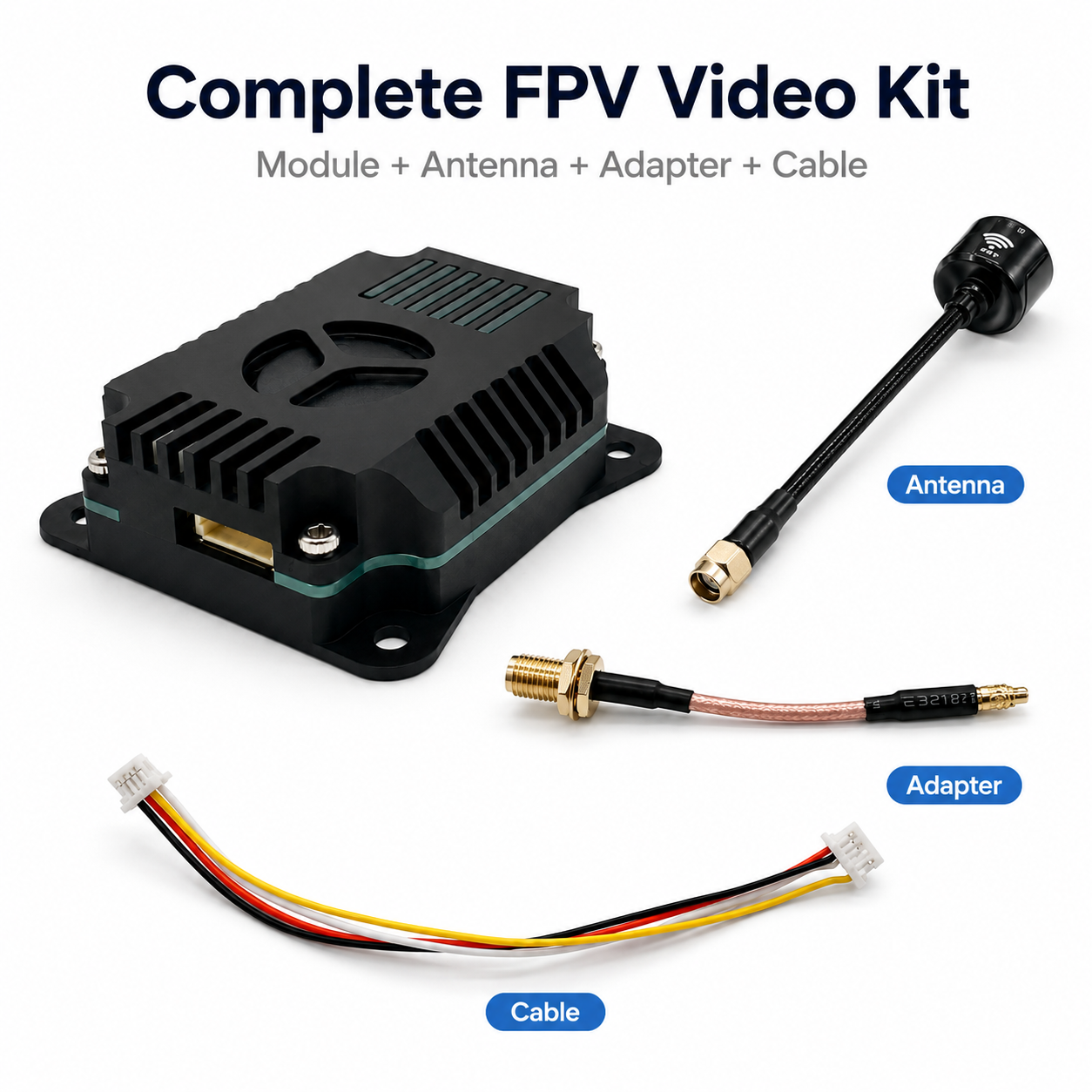

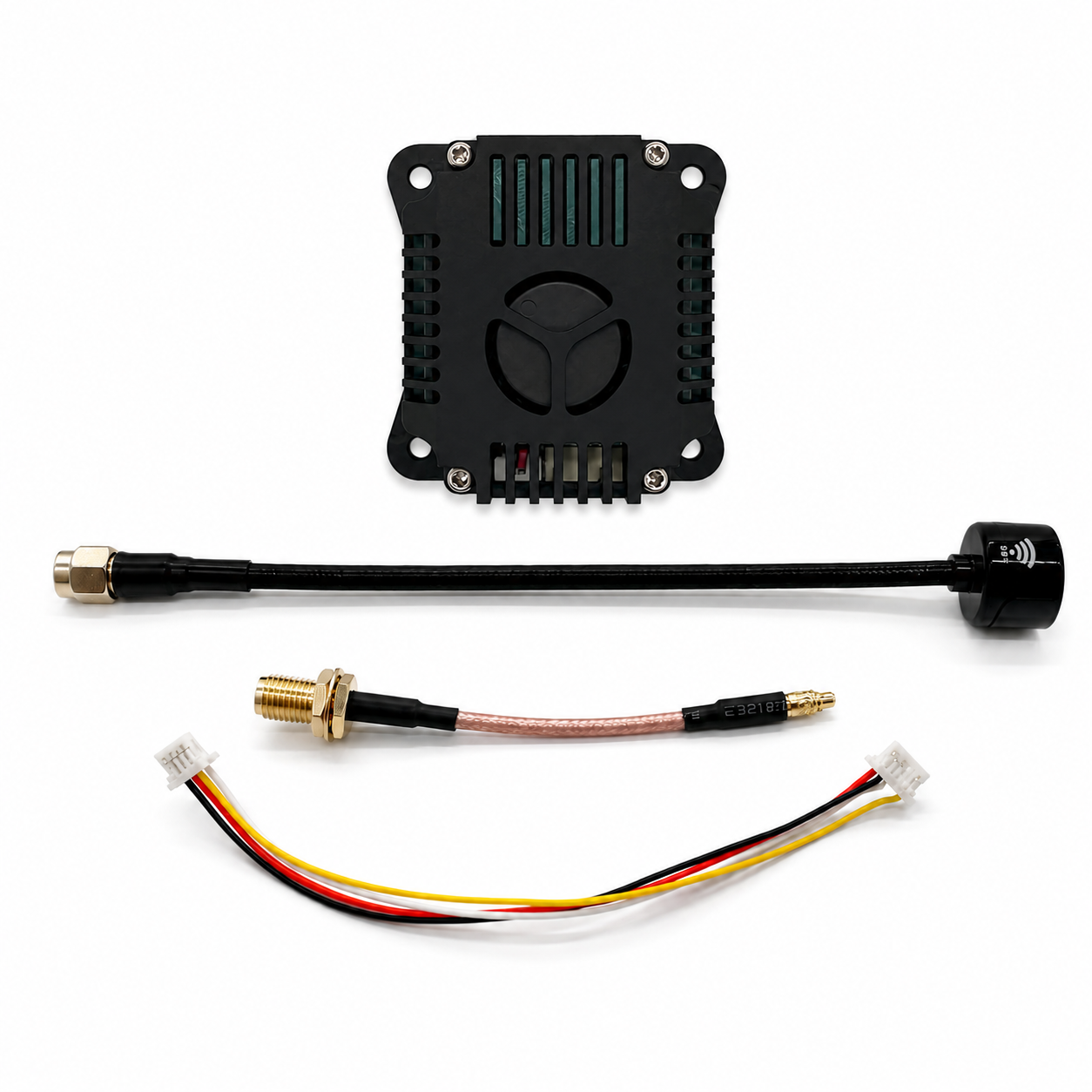

What is in the Box
1x 5.8G 2.5W High Power FPV VTX Module
1x Heavy Duty Wiring Harness
1x Hardware Mounting Pack
