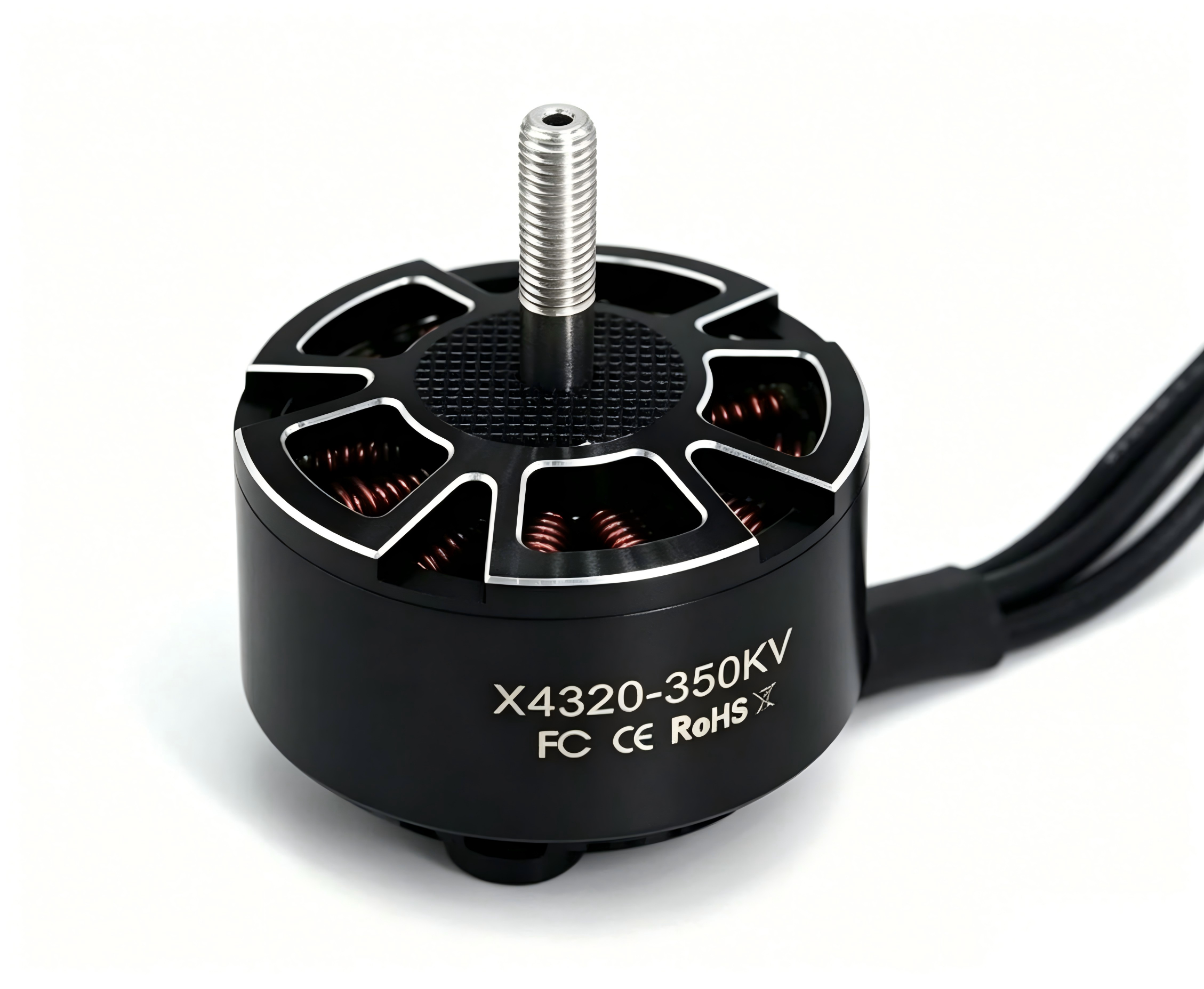

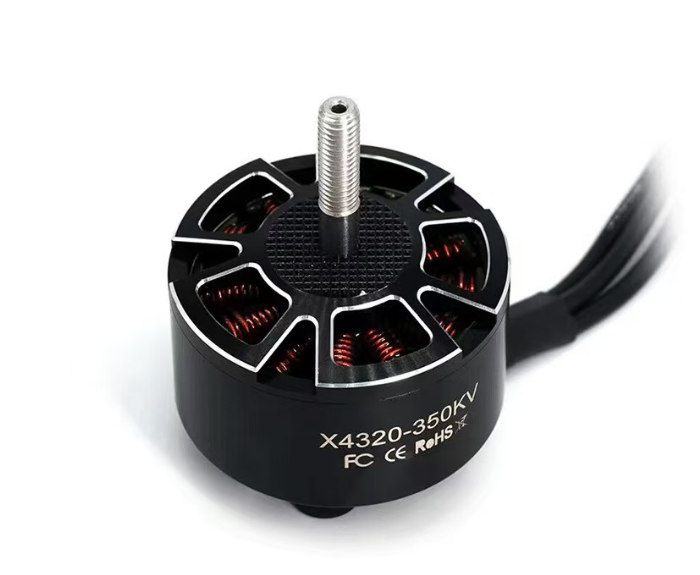

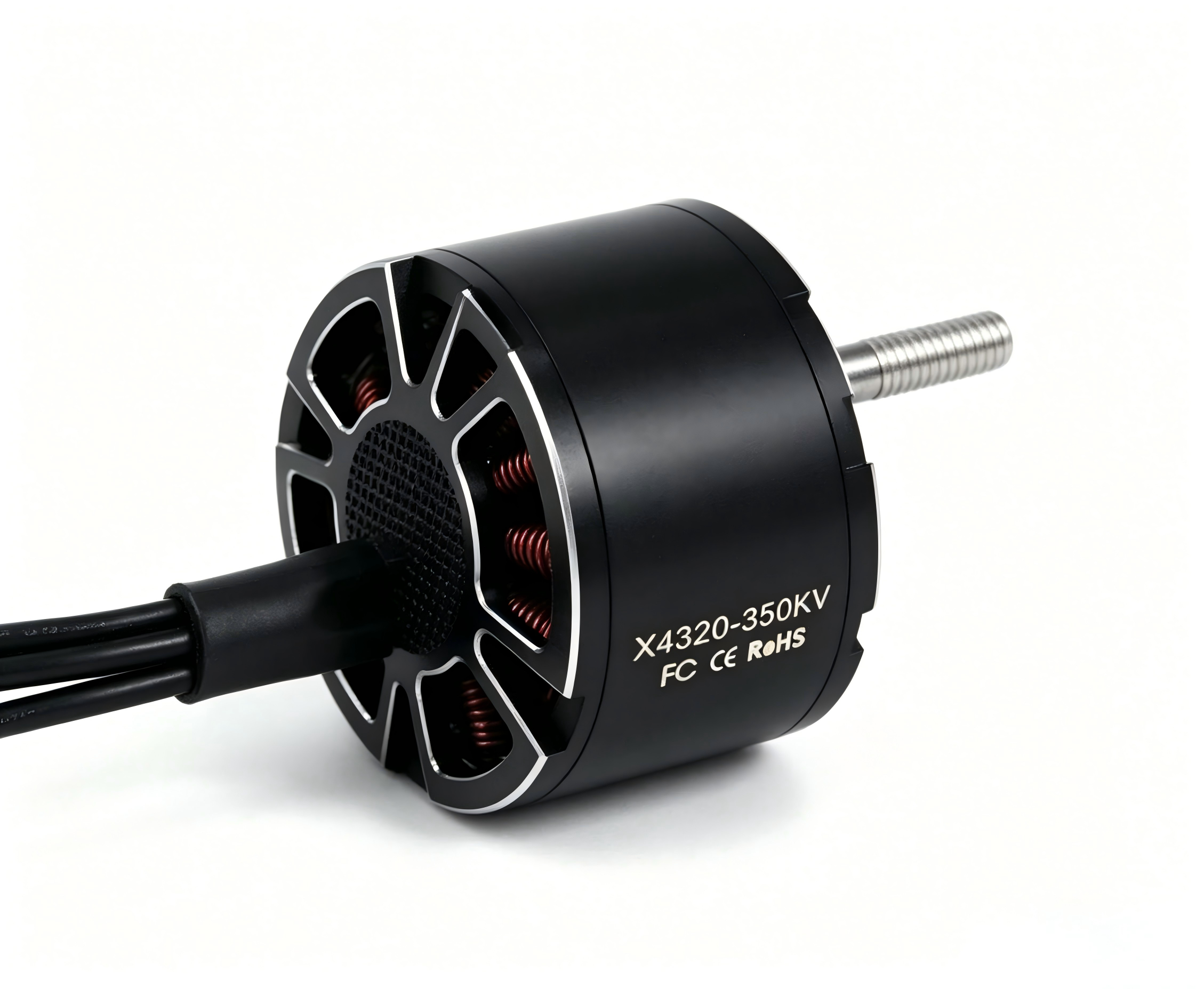

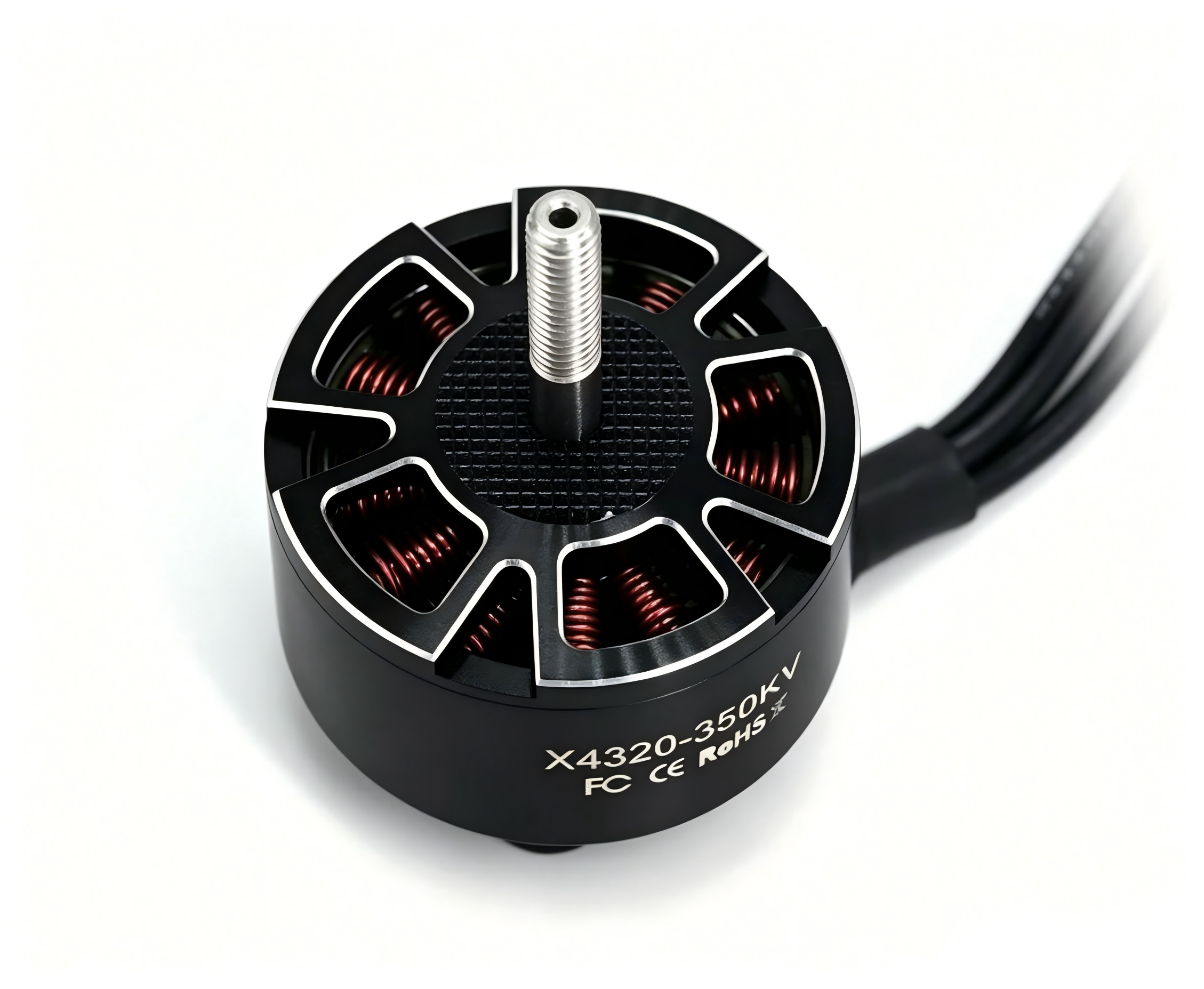

X4320 350KV Industrial Motor 3683W For 15" FPV
Specifications
Model: X4320 350KV
Operating Rated Voltage: 6S - 8S LiPo
Bearing Shaft Diameter: 6.0mm
Maximum Power: 3683W @ 12S
Motor Weight: 297g Without Silicone Wire
Lead Wire Specification: 14 AWG American Standard, 400mm Length
Motor Dimensions: 51mm × 40.5mm
No-Load Current: 1.4A @ 10V
Stator Rotor Specification: 12 Slots, 14 Poles
Peak Current: 80A @ 12S
Motor Resistance: 46mΩ
Compatible Propeller: HQ15x7x3 Three-Blade Prop
3683W Blistering Maximum Power places this motor into a league of its own, supplying immense, unrelenting raw thrust capable of hauling heavy professional cinema camera rigs with absolute authority.
6.0mm Oversized Bearing Shaft provides industrial-grade structural reinforcement, completely eliminating shaft flex under high centrifugal force and surviving severe operational stress on heavy platforms.
80A Peak Current Handling utilizes ultra-thick premium copper windings to withstand prolonged, brutal power demands without thermal breakdown or power sagging.
Generous 400mm 14AWG Leads ship pre-soldered using heavy-duty American standard wire, ensuring effortless routing and clean installations on massive, wide-format multirotor frame arms.
297g Kinetic Powerhouse Chassis features advanced open-airflow cooling geometry to maximize heat dissipation, keeping motor temperatures low and magnetic performance peak during long hovering missions.
HQ15x7x3 Prop Optimization profile delivers the ultimate aerodynamic sweet spot, matching perfectly with 15-inch heavy-lift three-blade propellers for massive low-frequency stability and ultra-smooth cinematic flight lines.
What is in the Box ?
1x X4320 350KV Brushless Motor 1x Hardware Mounting Screw Pack Set
