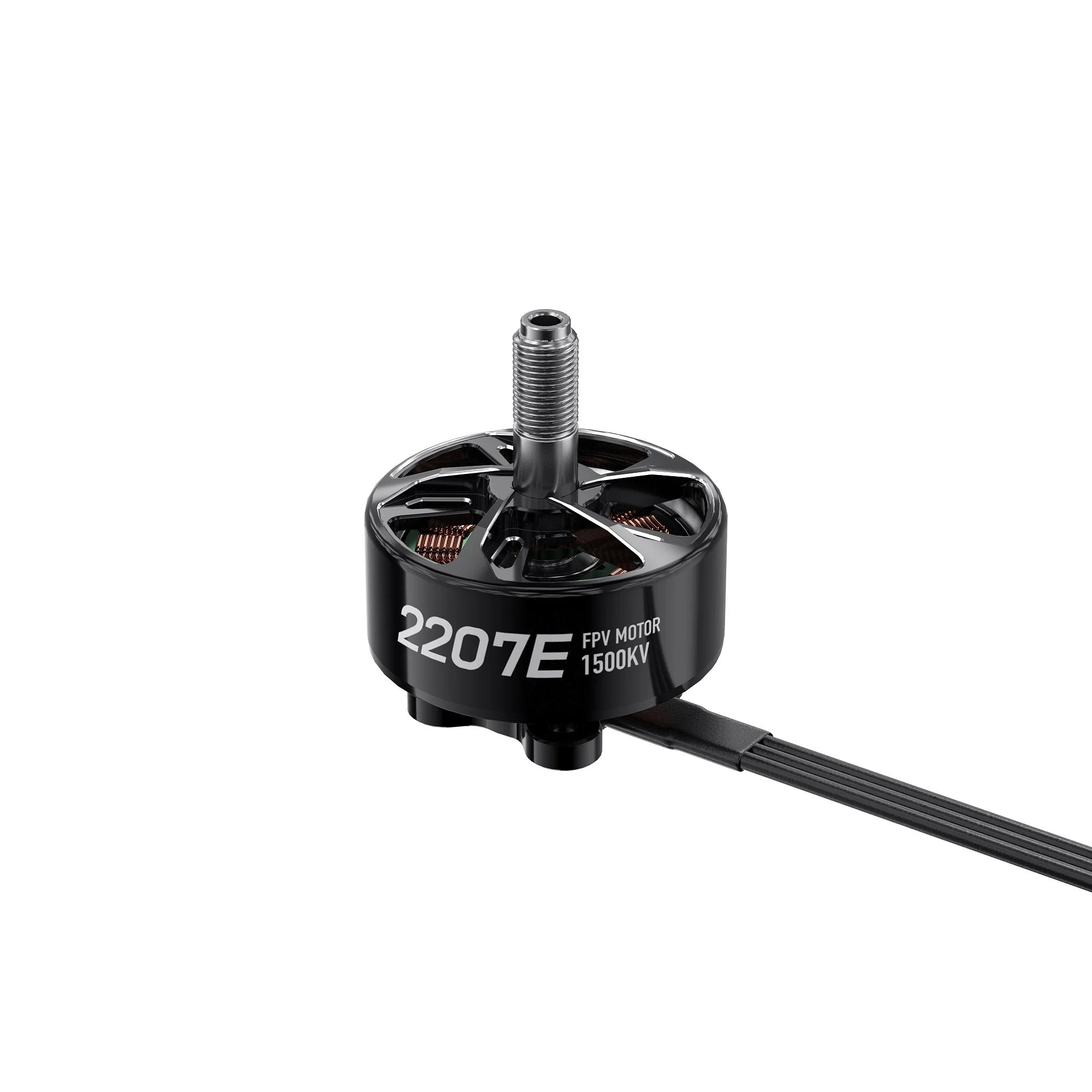

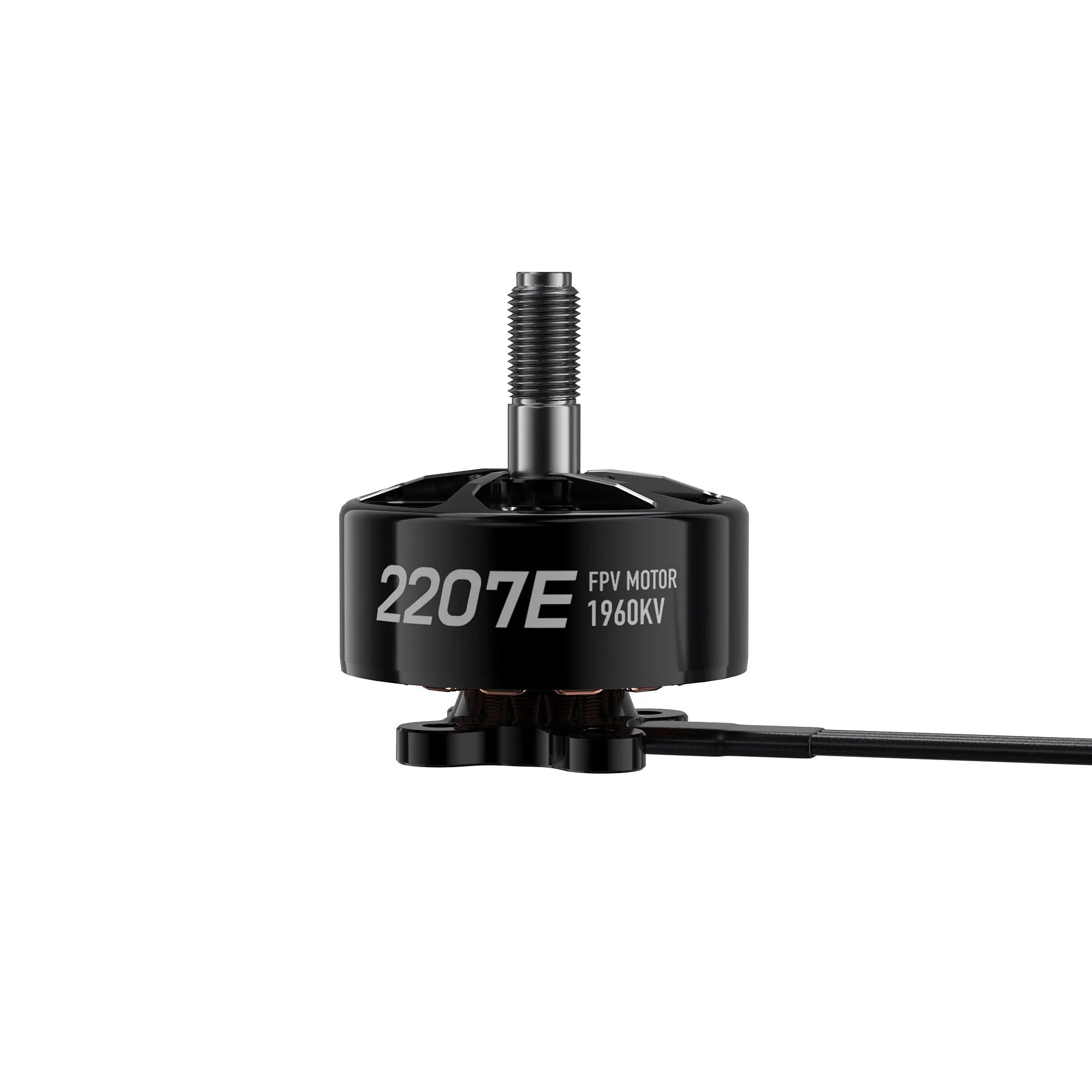

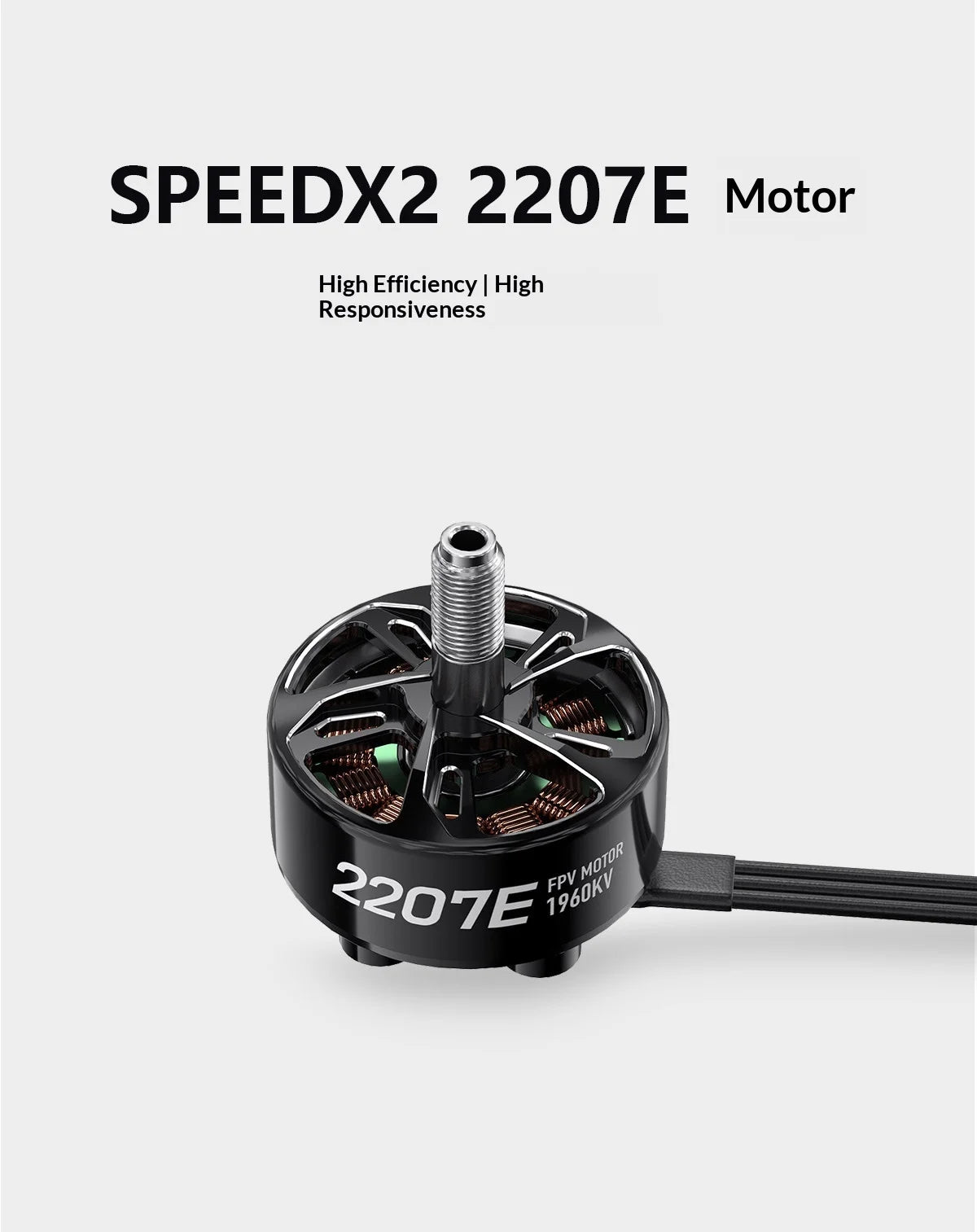

GEPRC SPEEDX2 2207E Brushless FPV Motor
Product Description

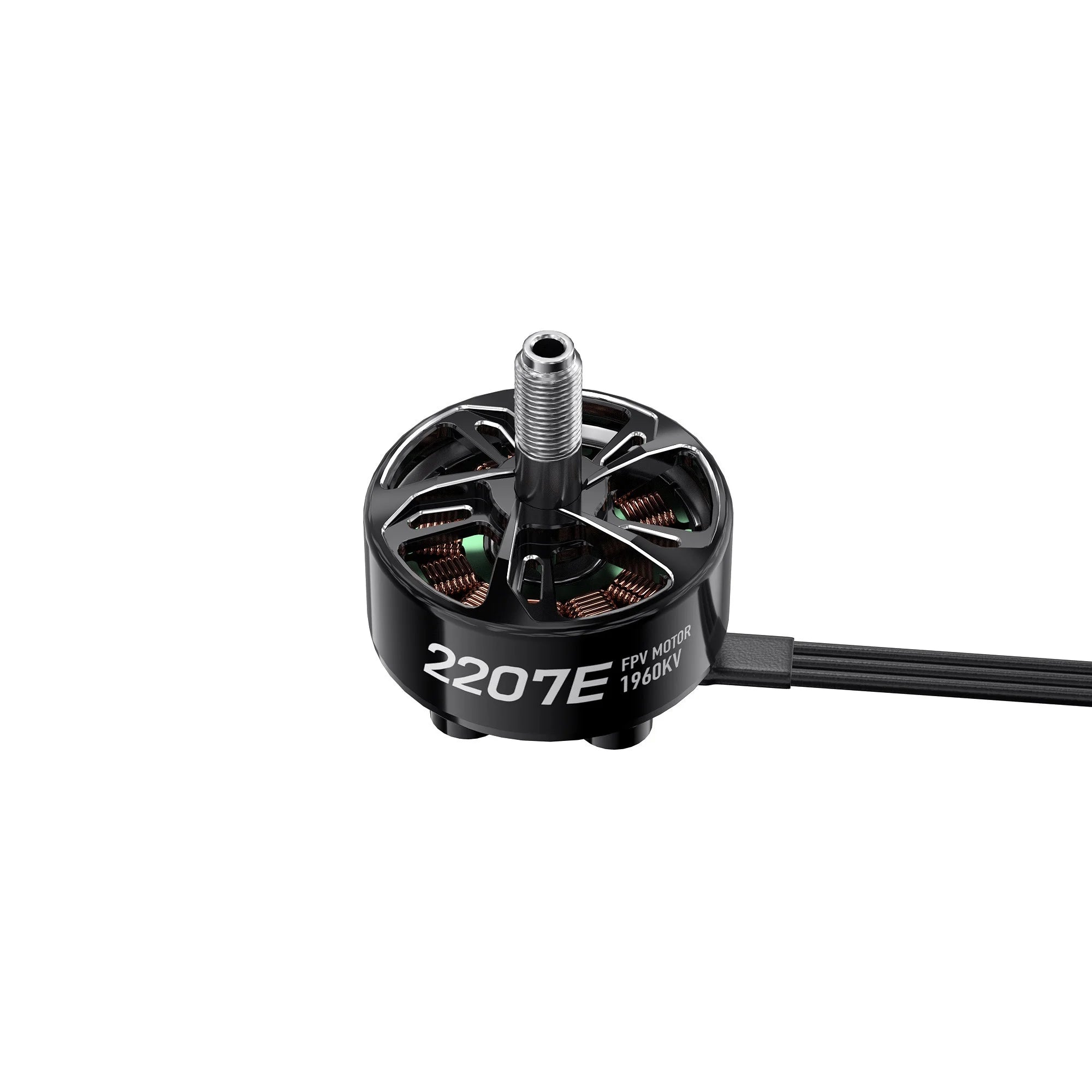

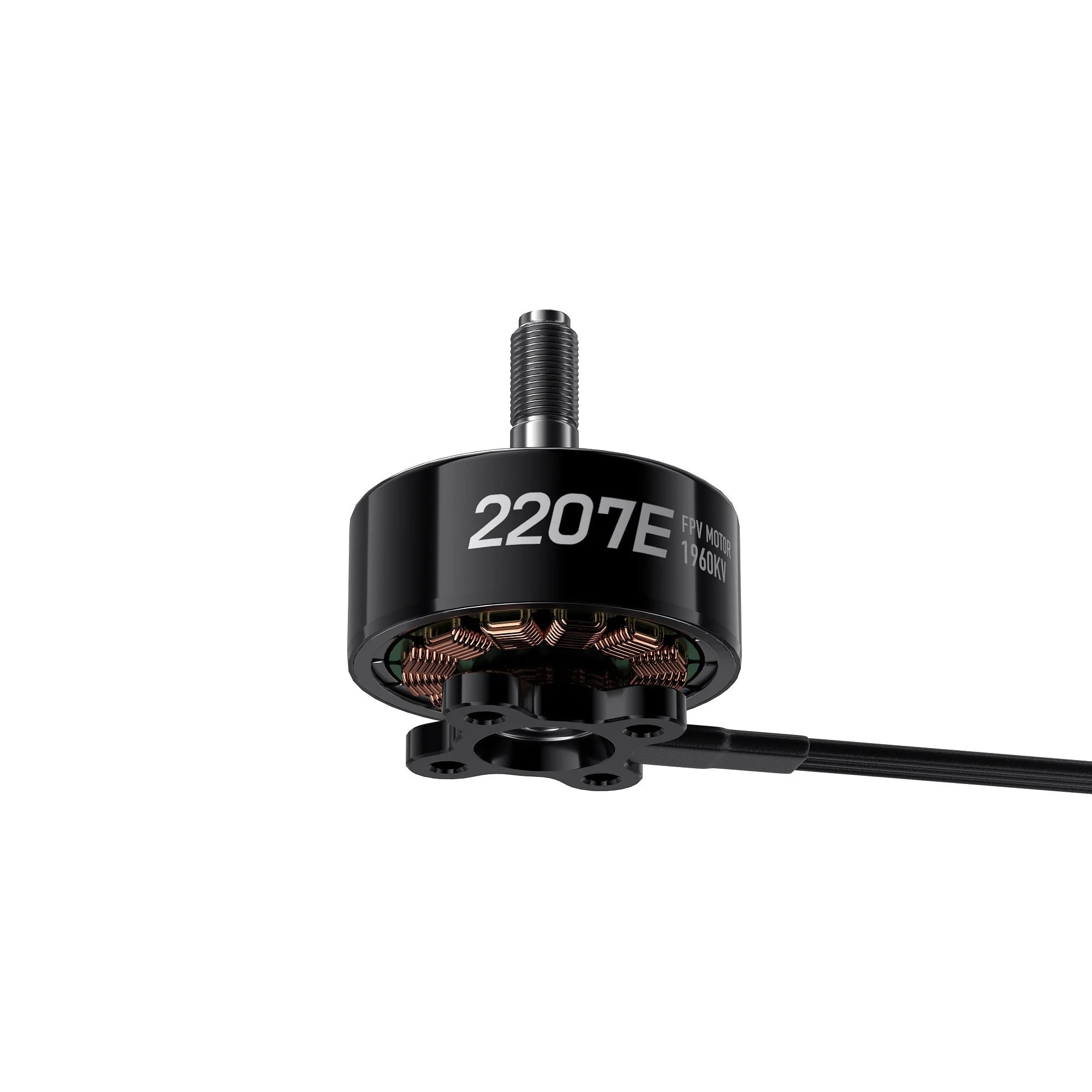

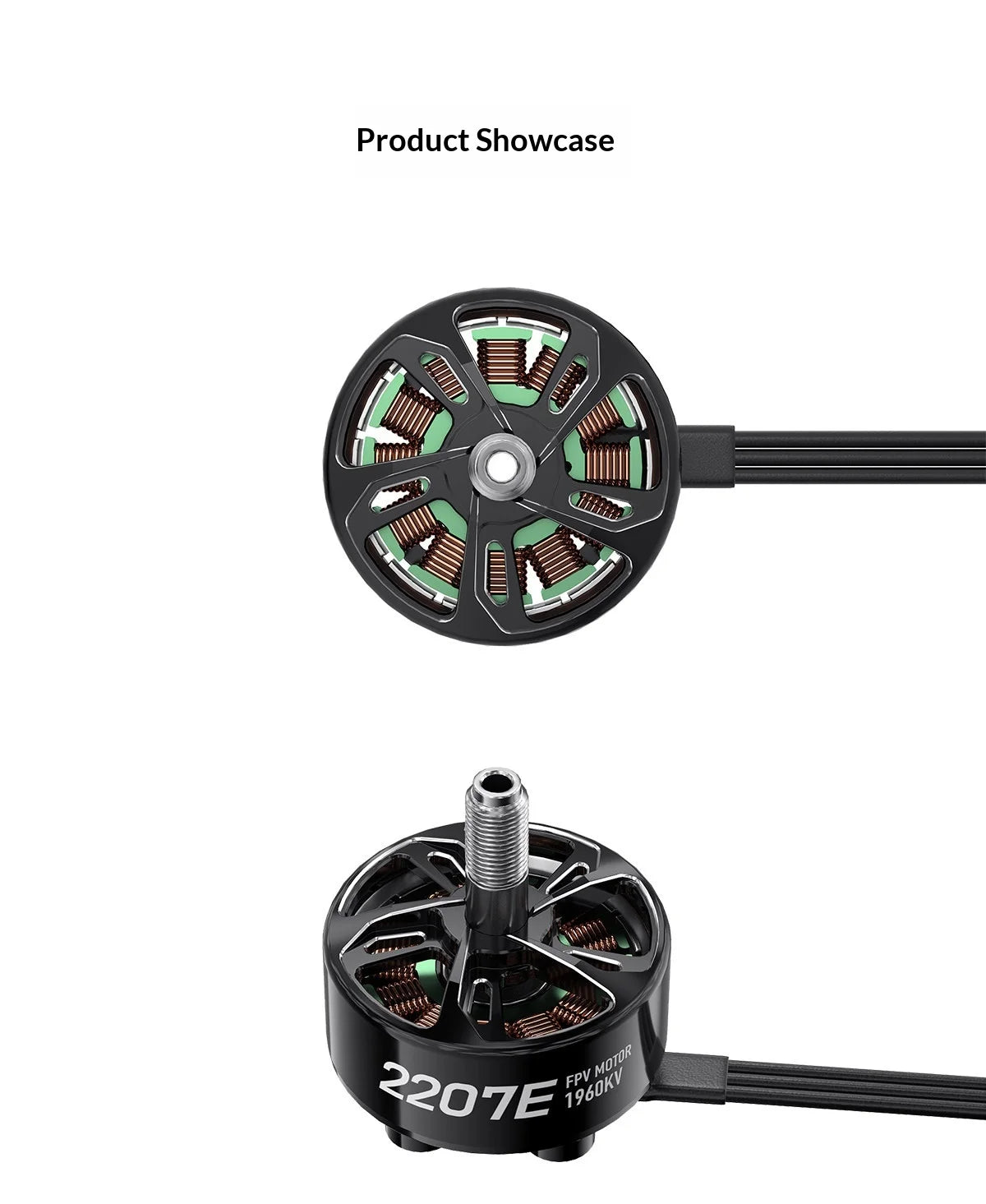

The GEPRC SPEEDX2 2207E Brushless Motor is a lightweight, high-efficiency motor designed for FPV freestyle, racing, crossover, and multirotor aircraft. Available in 1500KV, 1960KV, and 2020KV versions, it provides flexible power options for both 6S and 8S LiPo FPV builds.
Featuring powerful N52H magnets, a 12N14P stator configuration, NMB/NSK bearings, and a durable 5mm output shaft, the SPEEDX2 2207E delivers responsive throttle performance, efficient power conversion, and reliable operation. At only 34.5g including wires, it offers an excellent balance of power and weight for high-performance 4–5 inch FPV drones.
Key Features
1. Three KV Options
Available in 1500KV, 1960KV, and 2020KV, providing flexible configurations for different battery voltages and flight styles.
2. Up to 1108.7W Maximum Power
The 1500KV version delivers up to 1108.7W maximum power, while the 1960KV and 2020KV versions provide up to 1104.7W and 1068.3W, respectively.
3. 6S & 8S LiPo Options
The 1500KV version supports 8S LiPo (33.6V), while the 1960KV and 2020KV versions are designed for 6S LiPo (25.2V).
4. Optimized for 4–5 Inch Propellers
Designed for 4–5 inch 3-blade propellers, making the motor suitable for responsive FPV freestyle, racing, and crossover builds.
5. High-Performance N52H Magnets
Uses powerful N52H magnets to provide strong magnetic performance and responsive motor output for demanding FPV flights.

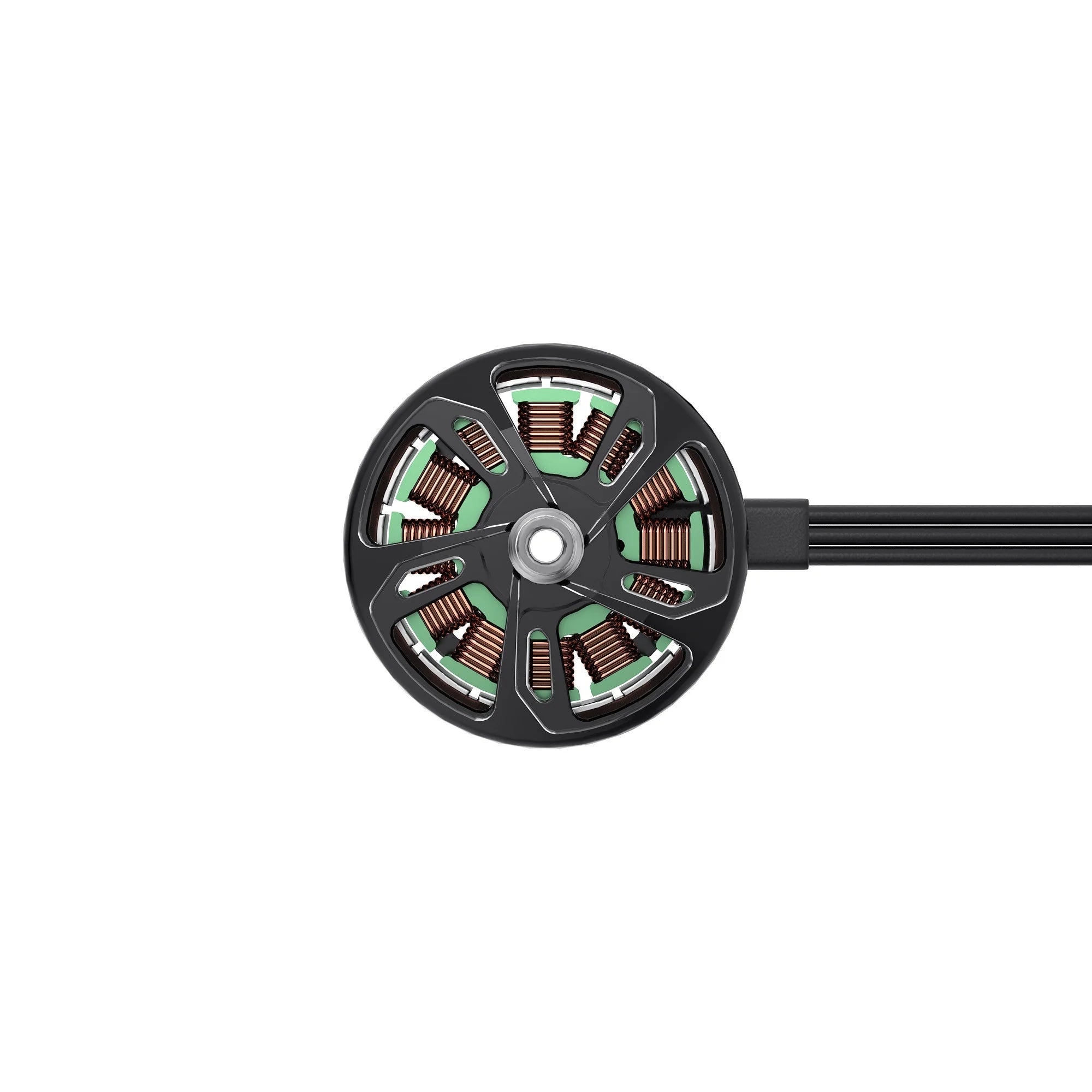

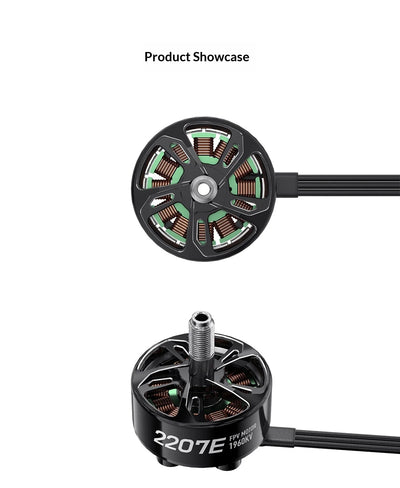

6. 12N14P Motor Configuration
The 12N14P stator and rotor configuration delivers smooth operation, responsive acceleration, and efficient power delivery.
7. Durable NMB/NSK Bearings
Equipped with quality NMB/NSK bearings for smooth rotation, reliability, and extended service life.

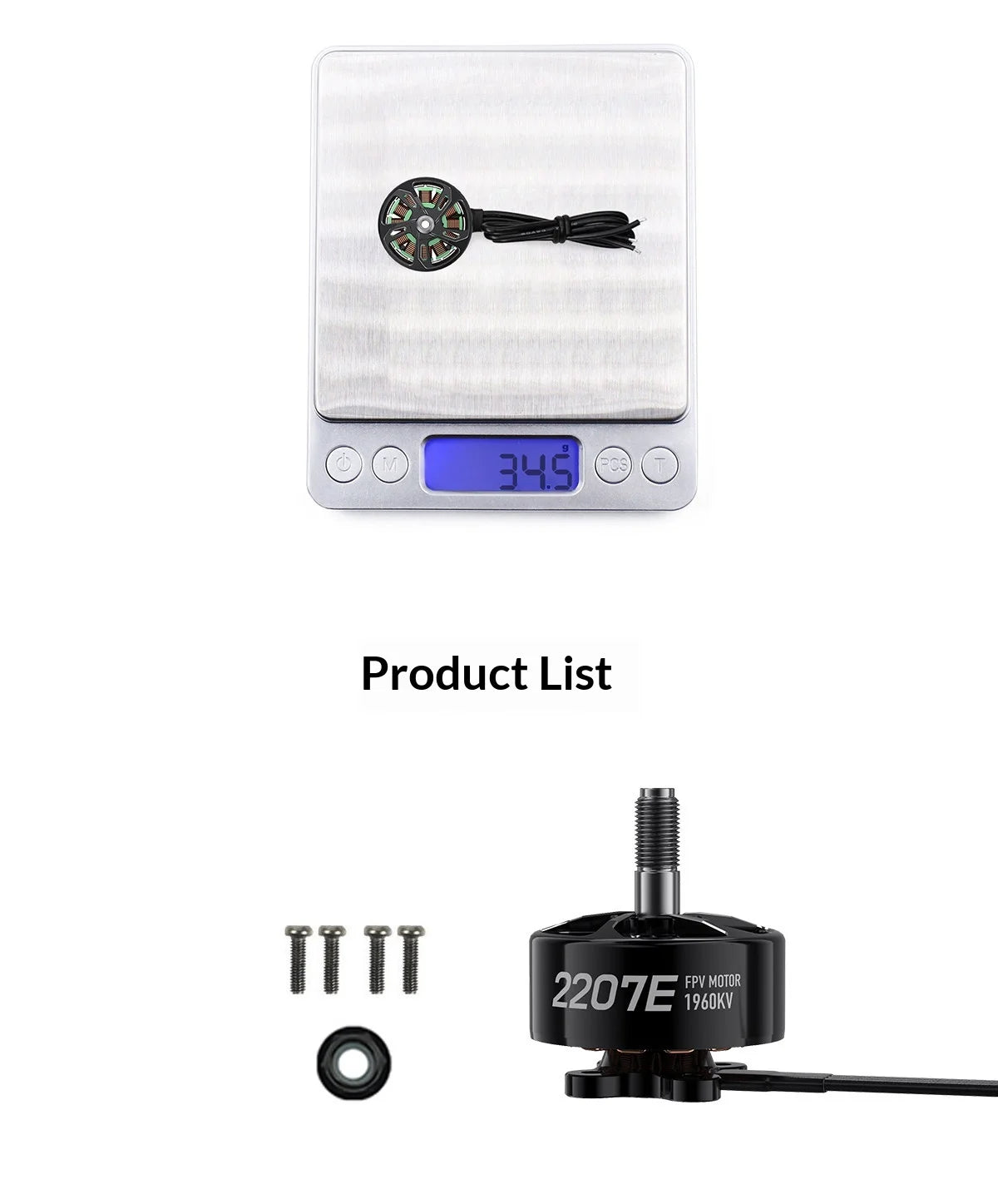

8. Lightweight 34.5g Design
Weighing approximately 34.5g including wires, the SPEEDX2 2207E keeps weight under control while delivering high power output.
9. Robust 5mm Output Shaft
Features a 5mm output shaft with a 13.5mm extension length, providing a durable connection for compatible FPV propellers.
10. 16×16mm Motor Mounting Pattern
The standard 16×16mm mounting hole pattern allows convenient installation on compatible FPV drone frames.

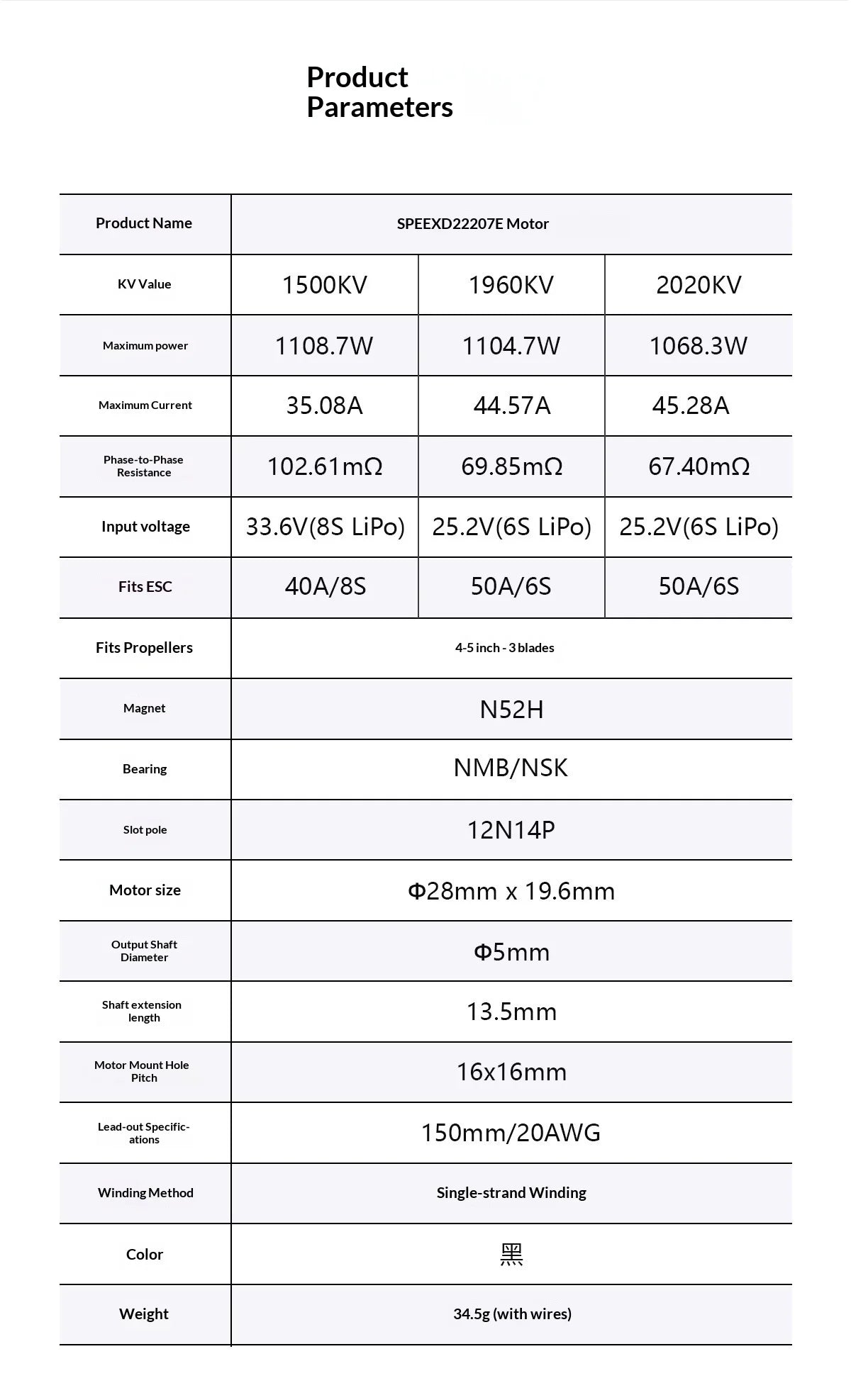

Specifications
| Specification | 1500KV | 1960KV | 2020KV |
|---|---|---|---|
| Model | SPEEDX2 2207E | SPEEDX2 2207E | SPEEDX2 2207E |
| KV Rating | 1500KV | 1960KV | 2020KV |

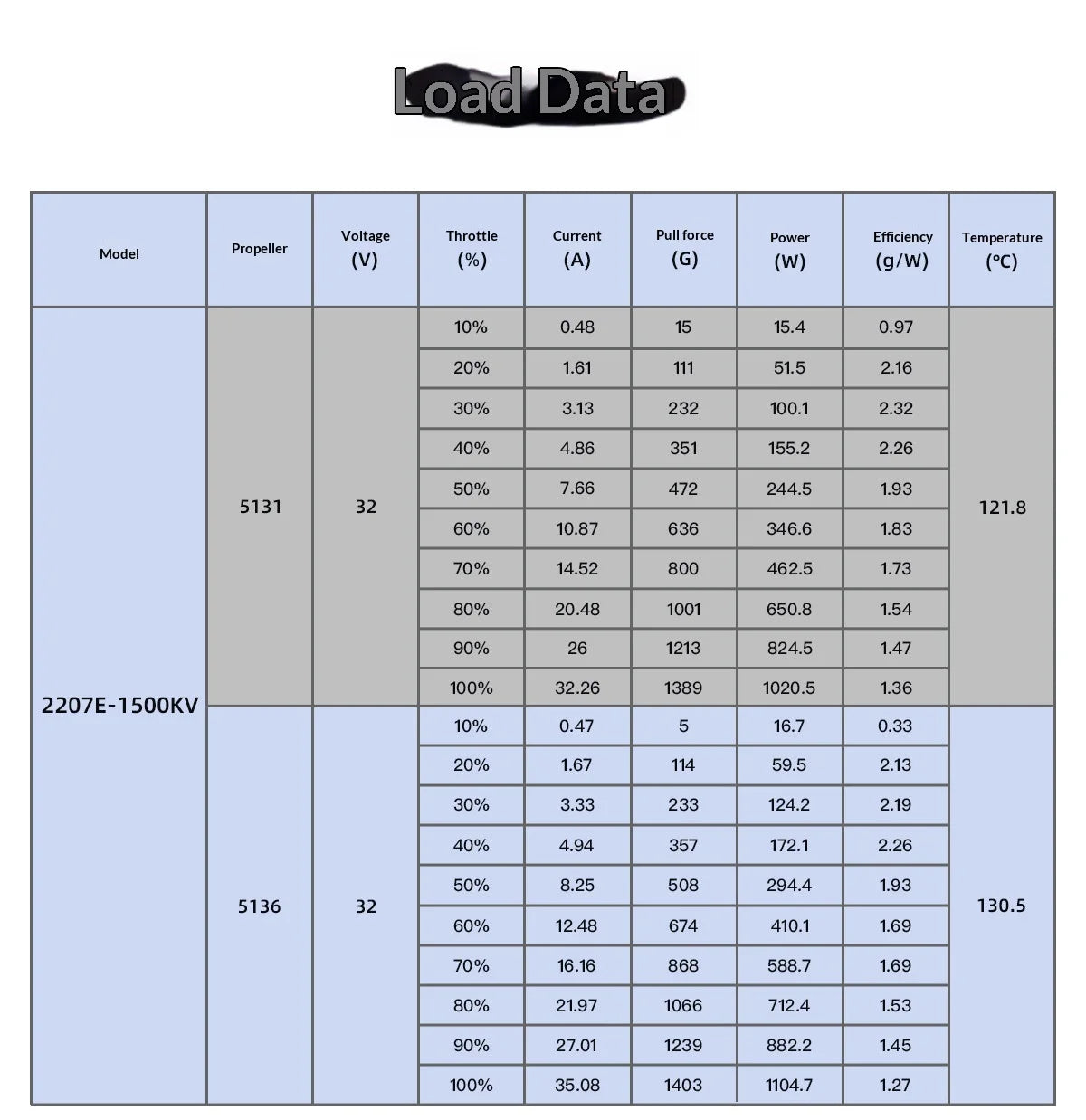

| Maximum Power | 1108.7W | 1104.7W | 1068.3W |
| Maximum Current | 35.08A | 44.57A | 45.28A |
| Phase-to-Phase Resistance | 102.61mΩ | 69.85mΩ | 67.40mΩ |
| Input Voltage | 33.6V / 8S LiPo | 25.2V / 6S LiPo | 25.2V / 6S LiPo |
| Recommended ESC | 40A / 8S | 50A / 6S | 50A / 6S |
| Recommended Propeller | 4–5 Inch 3-Blade | 4–5 Inch 3-Blade | 4–5 Inch 3-Blade |
Common Specifications
| Item | Specification |
| Brand | GEPRC |
| Series | SPEEDX2 |
| Model | 2207E |
| Motor Type | Brushless Motor |
| Magnet | N52H |
| Bearing | NMB / NSK |
| Stator Configuration | 12N14P |

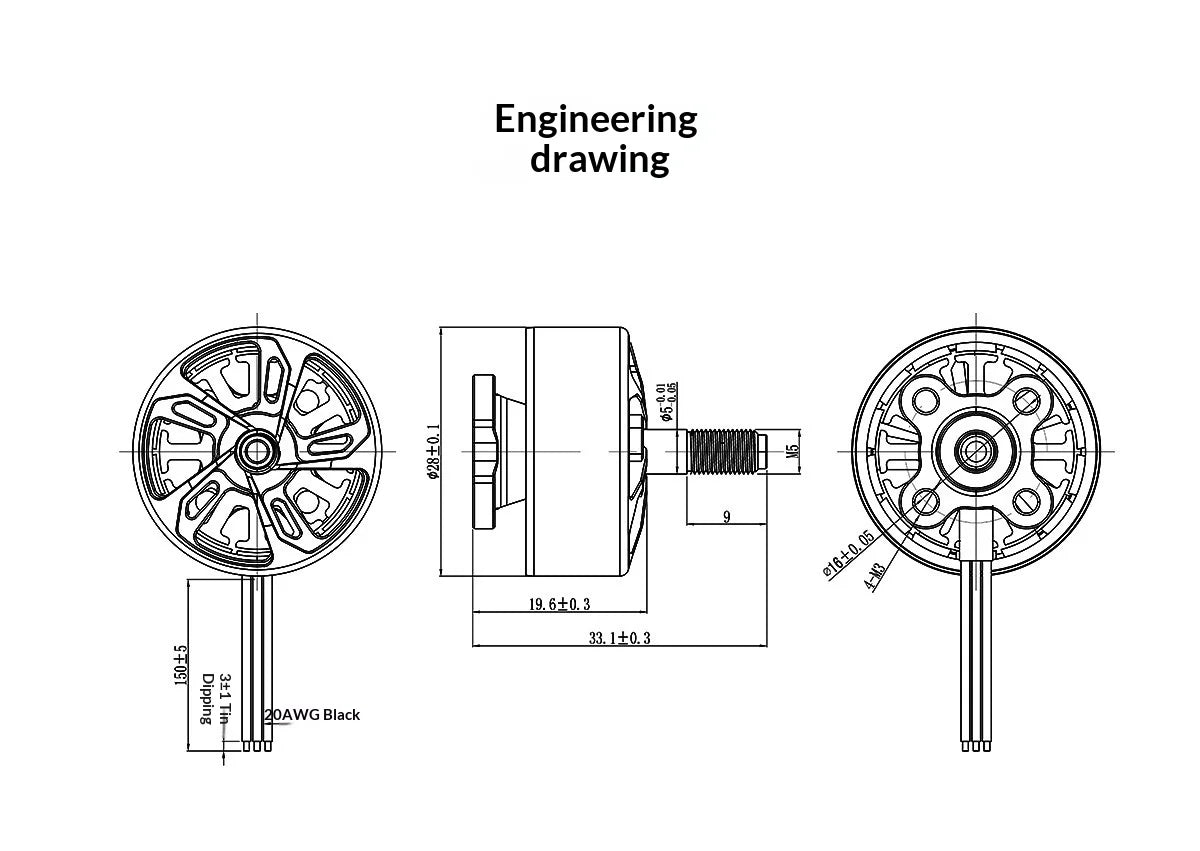

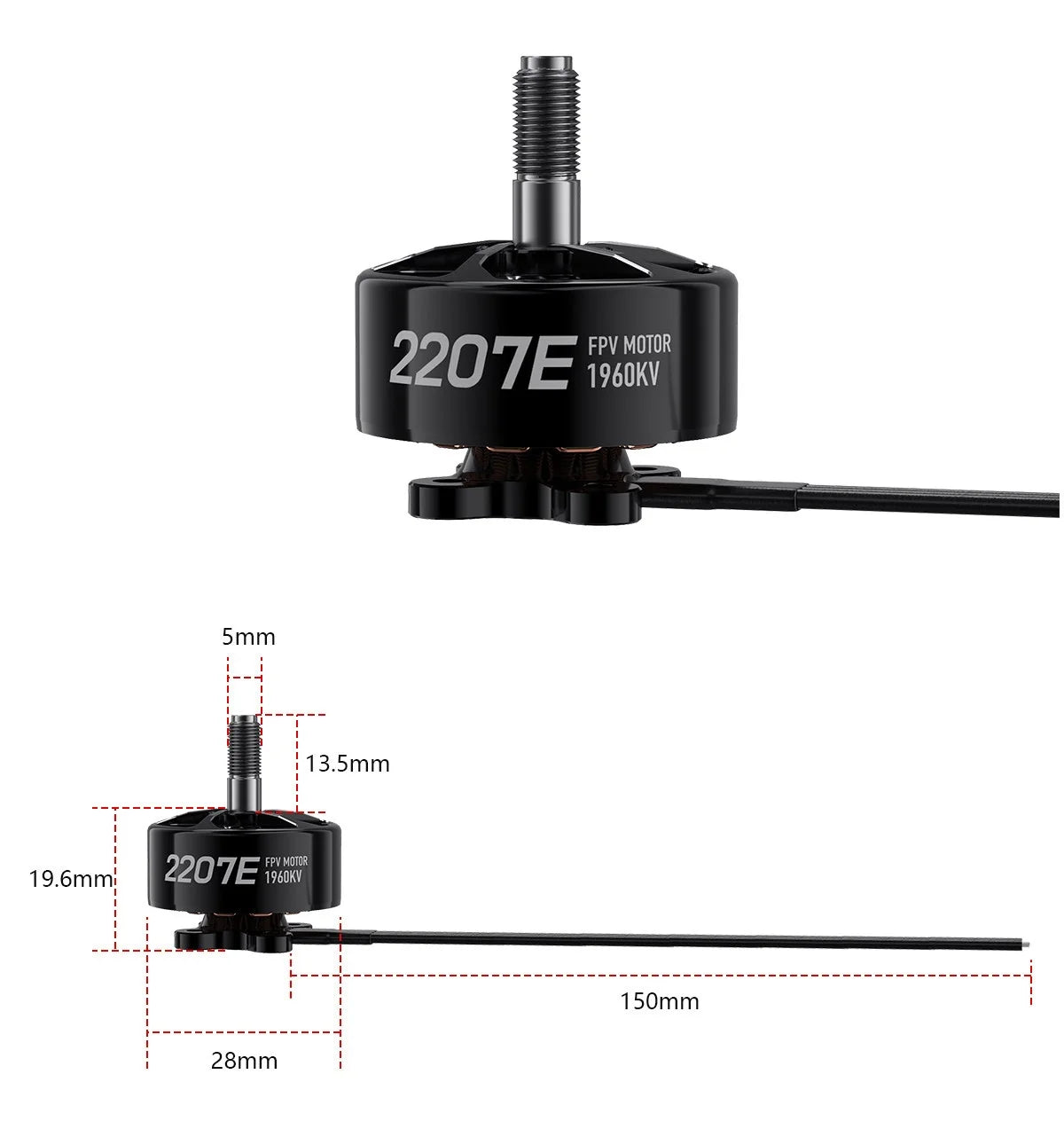

| Motor Size | Φ28 × 19.6mm |
| Output Shaft Diameter | Φ5mm |
| Shaft Extension Length | 13.5mm |
| Motor Mount Hole Pitch | 16 × 16mm |

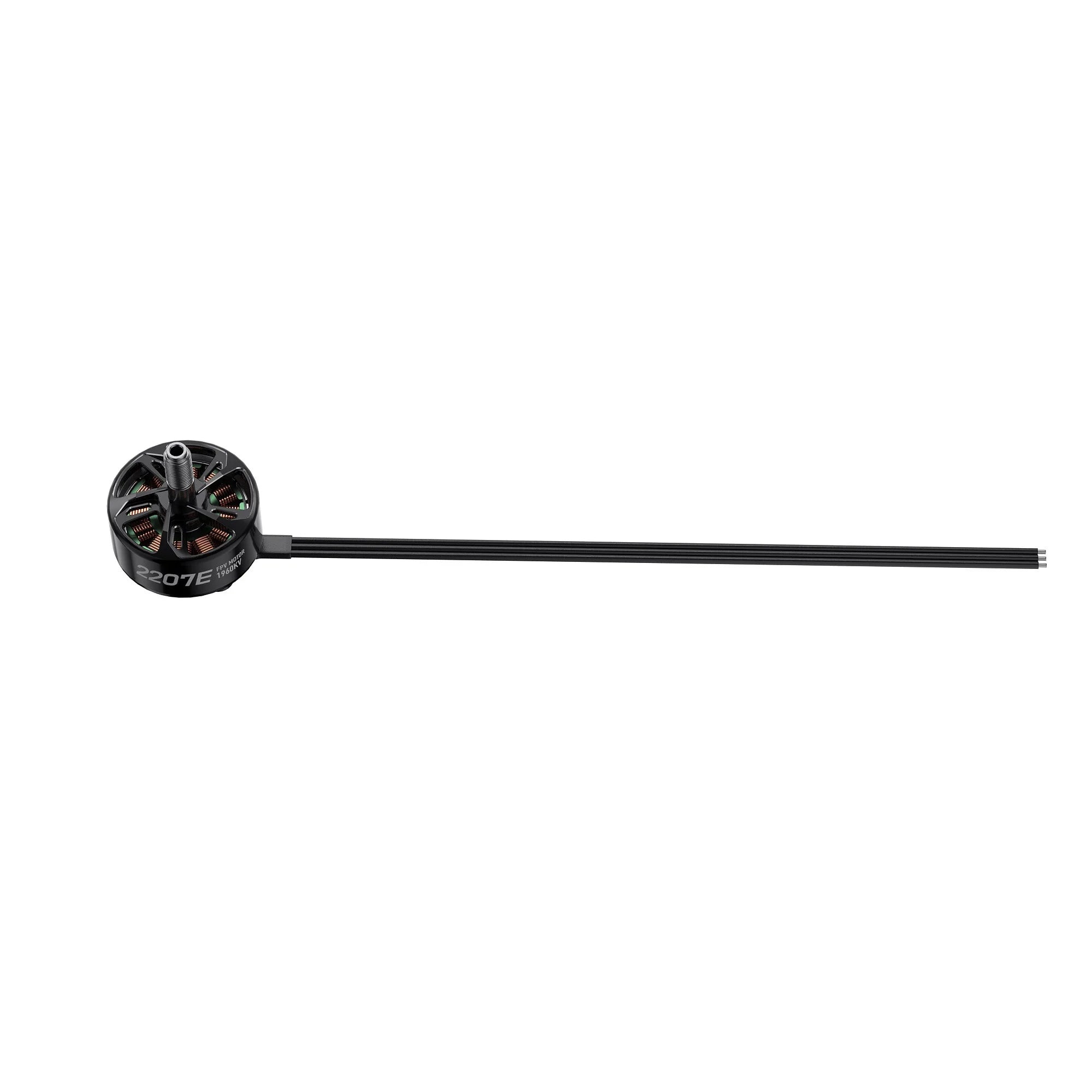

| Lead Wire | 150mm / 20AWG |
| Winding Method | Single-Strand Winding |
| Color | Black |
| Weight | 34.5g (with wires) |
| Application | FPV / Freestyle / Racing / Multirotor |
