Pocket FPV Radio EdgeTX ELRS CC2500
Specifications
Model: Pocket Portable Radio Controller
Folded Dimensions: 156.6mm × 65.1mm × 125.3mm
Unfolded Dimensions: 156.6mm × 73.1mm × 154.8mm
Weight: 288g (Without battery)
Color Options: Transparent / Charcoal
Internal RF Options: CC2500 Multi-Protocol or ExpressLRS 2.4GHz
RF Power Output: CC2500 Max 20dBm / ELRS FCC Max 24dBm / ELRS EU-LBT Max 20dBm
Operating Voltage: DC 6.6V - 8.4V
Control Distance: More than 2km at 20dBm (Environment dependent)
Operating System: EdgeTX
Channel Count: Up to 16 Channels (Receiver dependent)
Display Screen: 128 × 64 Monochrome LCD Screen
Battery Compatibility: Dual 18650 Li-Ion Batteries (Batteries sold separately)
Charging Method: Built-In USB-C QC3 Fast Charging Support
Firmware Upgrade: Supported via USB Interface or Included SD Card
Gimbal Type: High Precision Hall Sensor Gimbals
Expansion Module Bay: Nano Size Specification (Fits RadioLink Nano, TBS Nano Crossfire, and Nano Tracer modules)

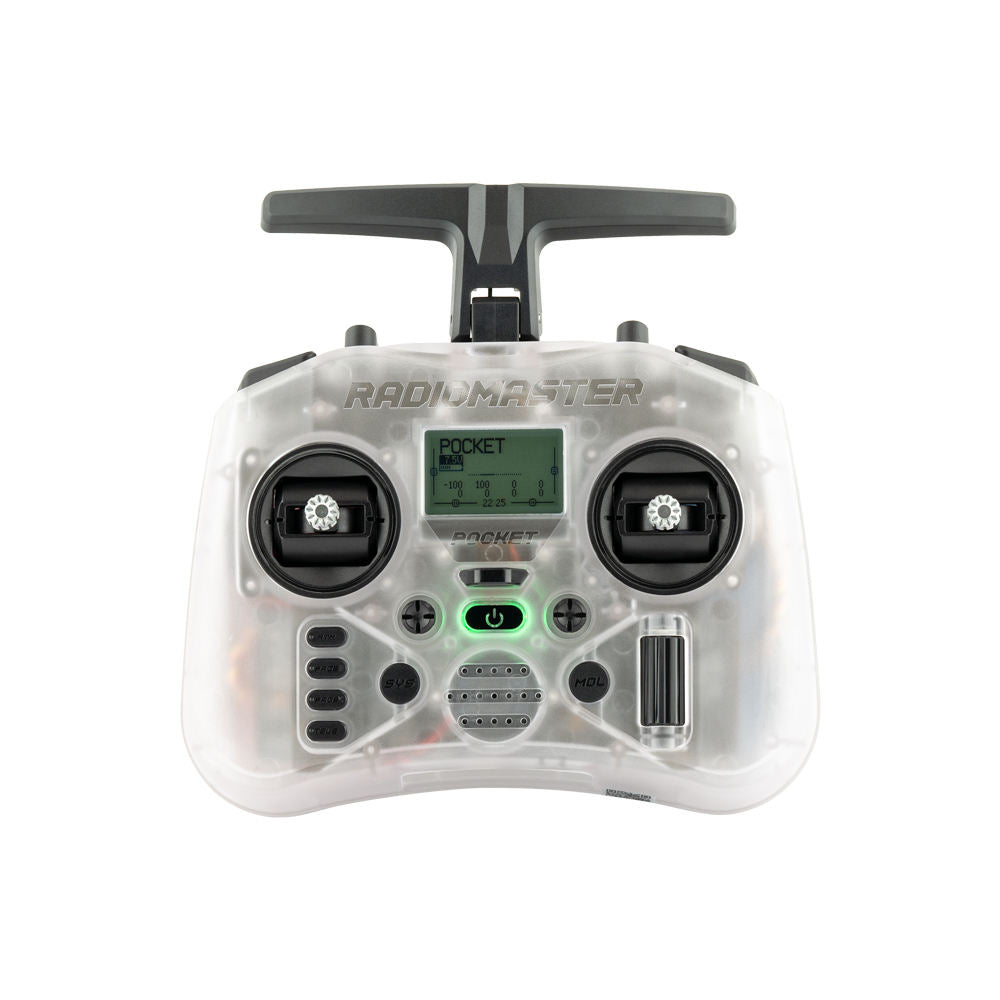

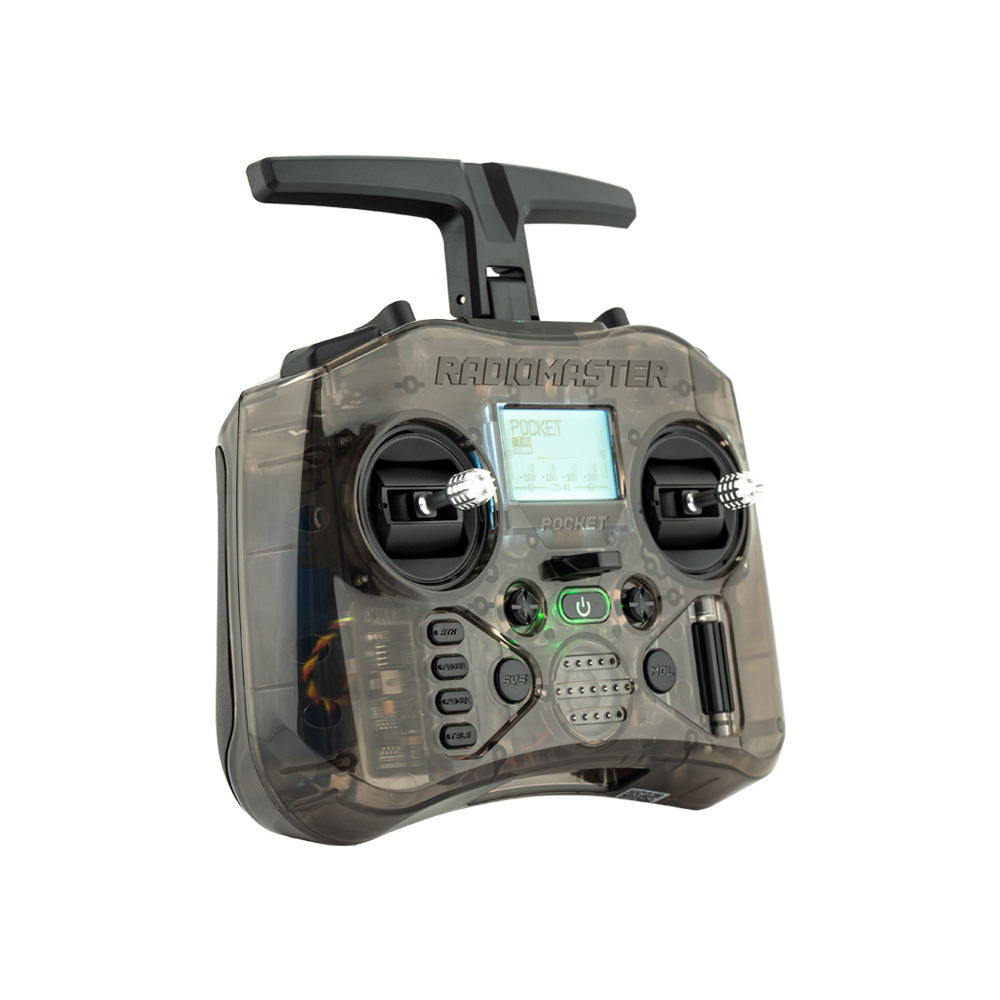

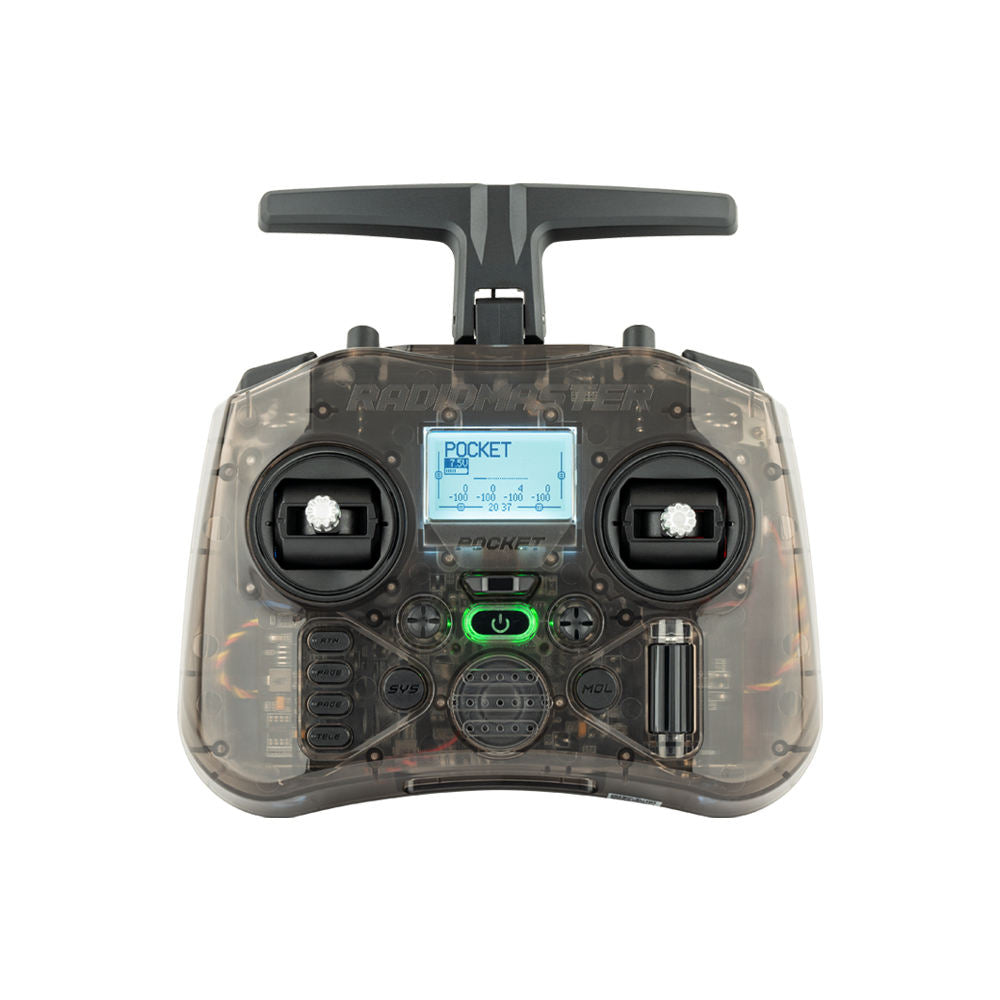

Transparent and Charcoal Shells bring a striking, high-tech aesthetic to your flight gear, letting tech-savvy pilots choose between a retro crystal-clear look or a sleek, stealthy dark crystalline finish.
288g Ultra-Compact Footprint utilizes a collapsible layout with folding antenna and stick guards, allowing the entire radio to slide effortlessly into tight pockets or everyday carry bags for travel.
Dual Internal Protocol Options let you spec your radio with either a universal CC2500 chip for legacy multi-protocol setups or a cutting-edge 2.4GHz ExpressLRS circuit for industry-leading low latency.

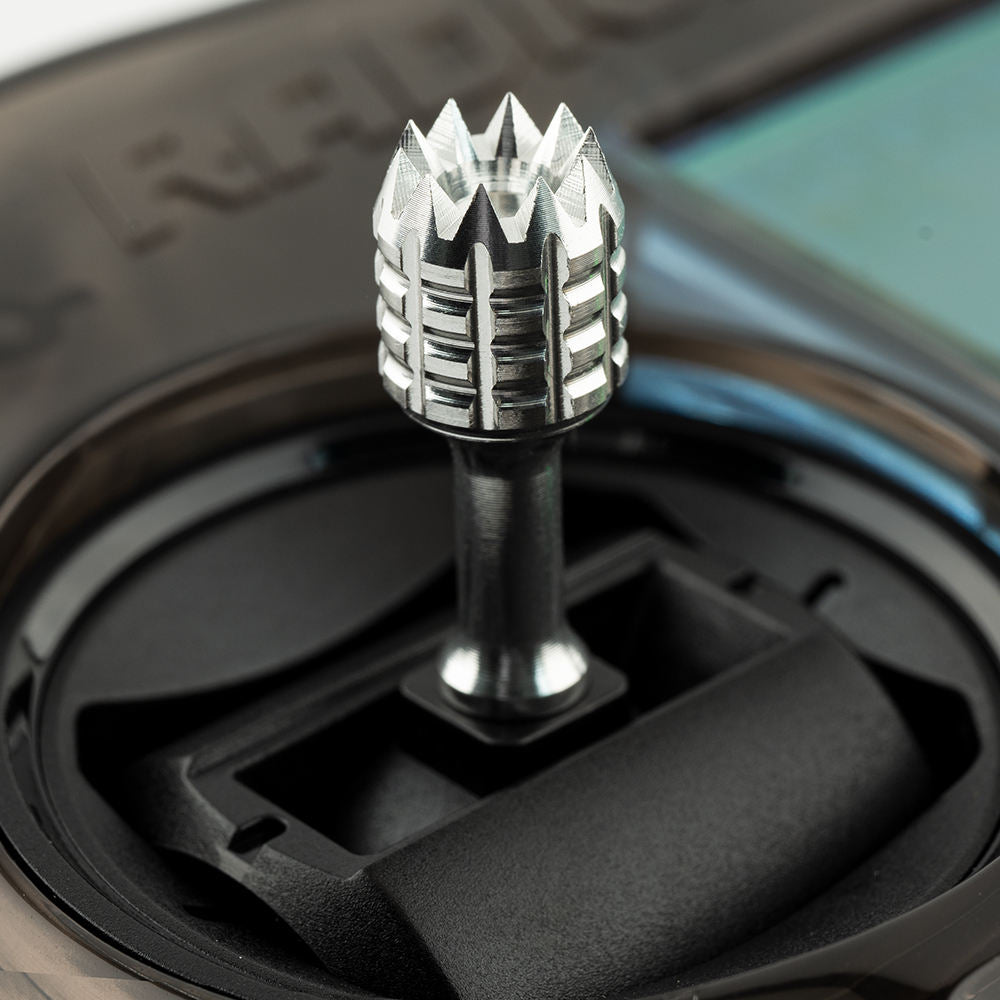

Contactless Hall Sensor Gimbals supply incredibly fluid stick translation and flawless centering control, bypassing the friction wear of old analog pots to shield you from unexpected stick drift.
Integrated QC3 Fast Charging relies on a modern USB-C architecture to rapidly power up dual internal 18650 cells, cutting down bench assembly times and eliminating standalone balance chargers.

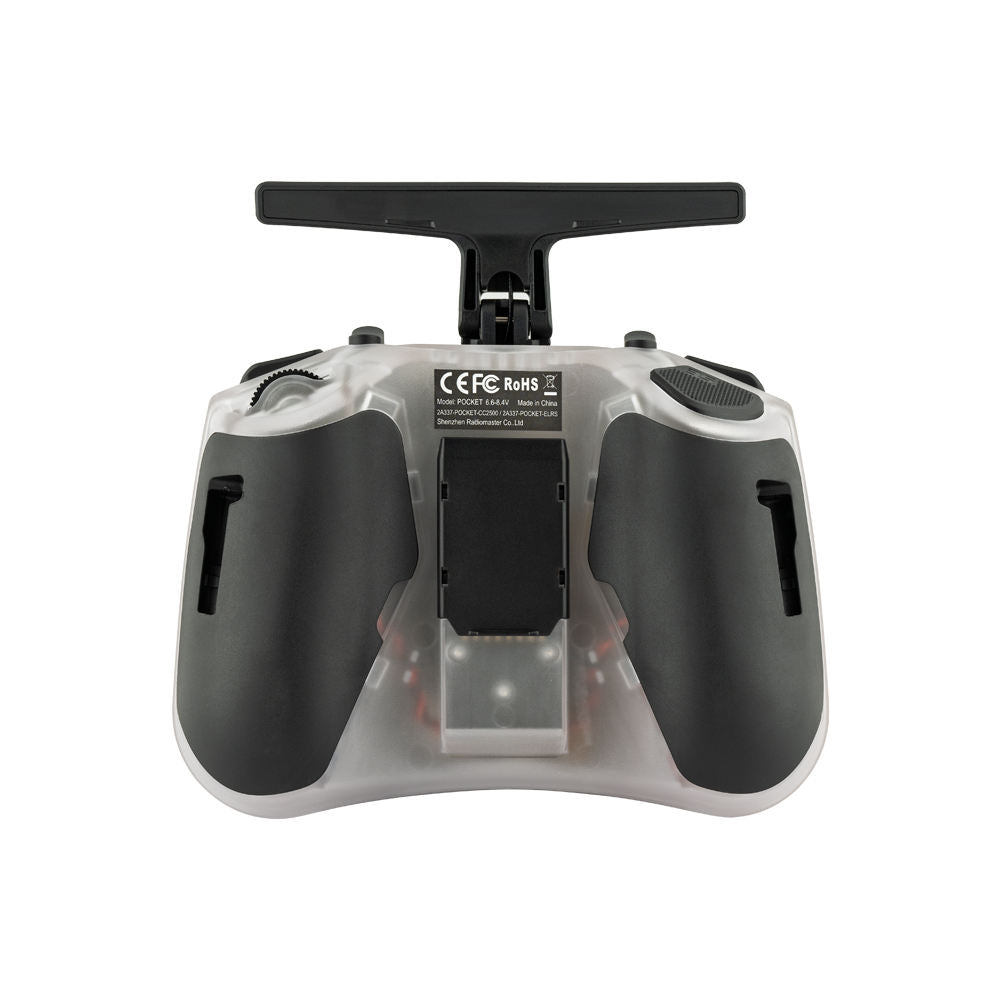

Standard Nano Module Cradle is molded directly into the back cover, offering instant plug-and-play expansions for external high-power TBS Nano Crossfire links, Nano Tracer units, or custom transmitter hardware.
What is in the Box
1x Pocket Portable FPV Radio Controller (In Selected Protocol and Color)
1x USB-C QC3 Fast Charging Cable
1x Micro SD Storage Card
1x User Configuration Manual
