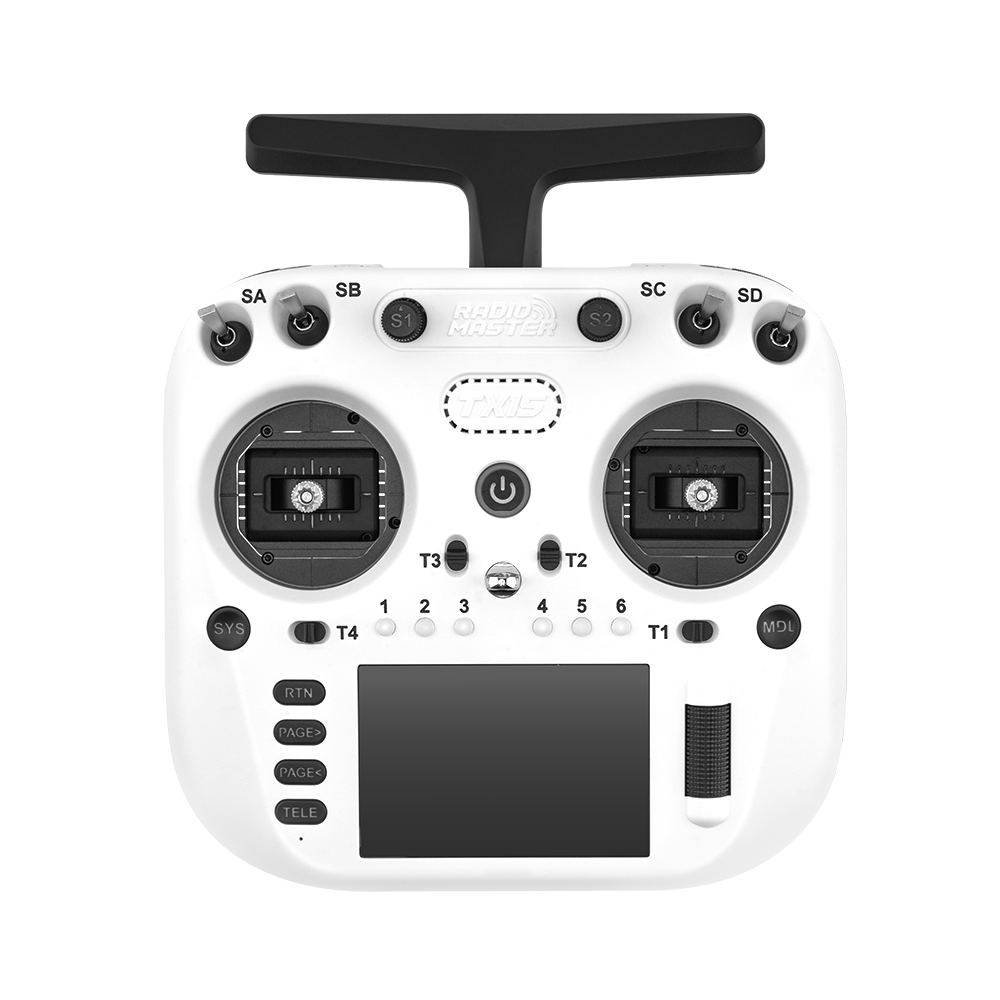

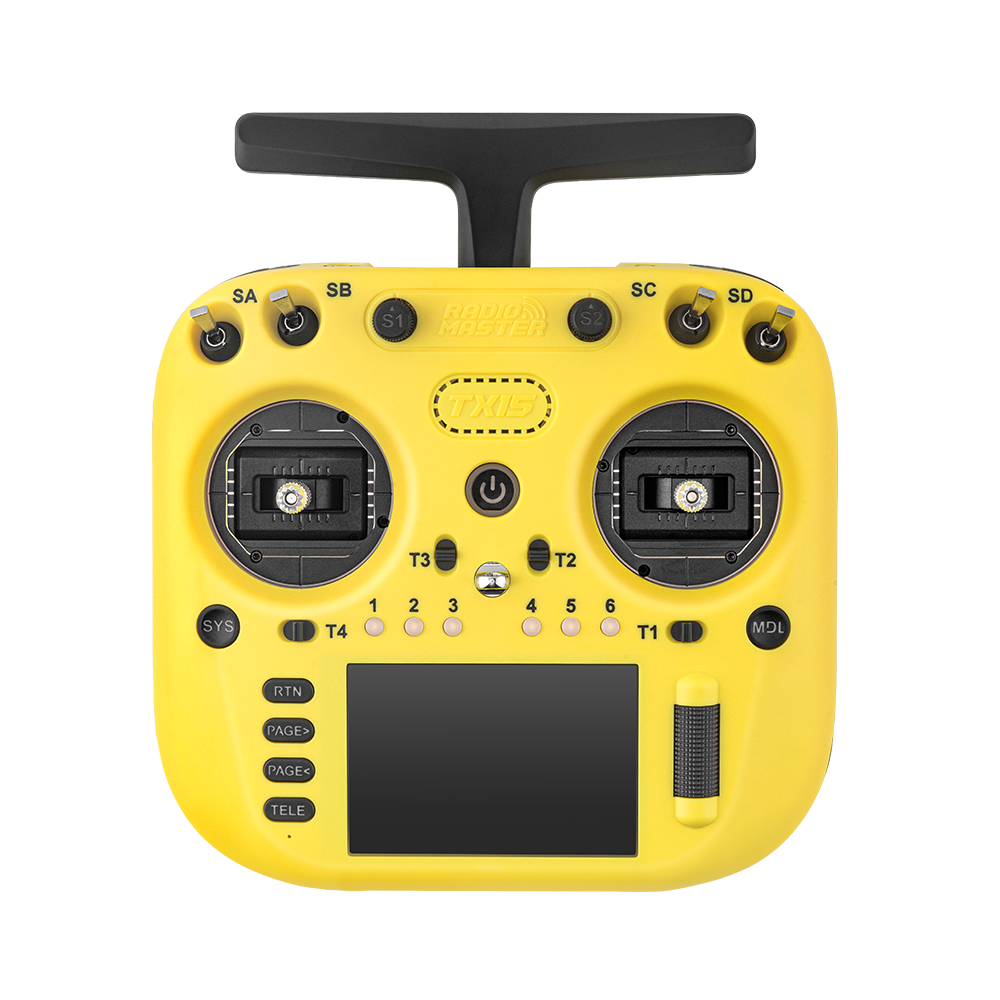

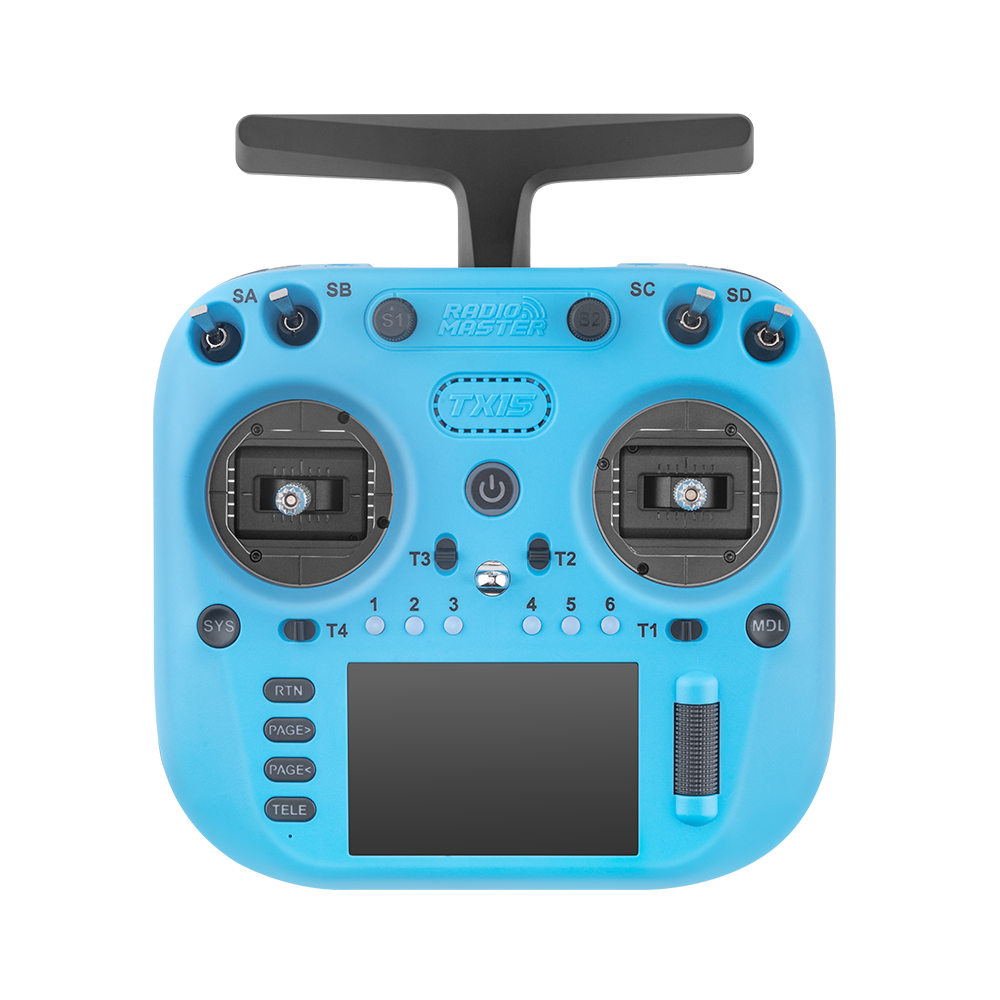

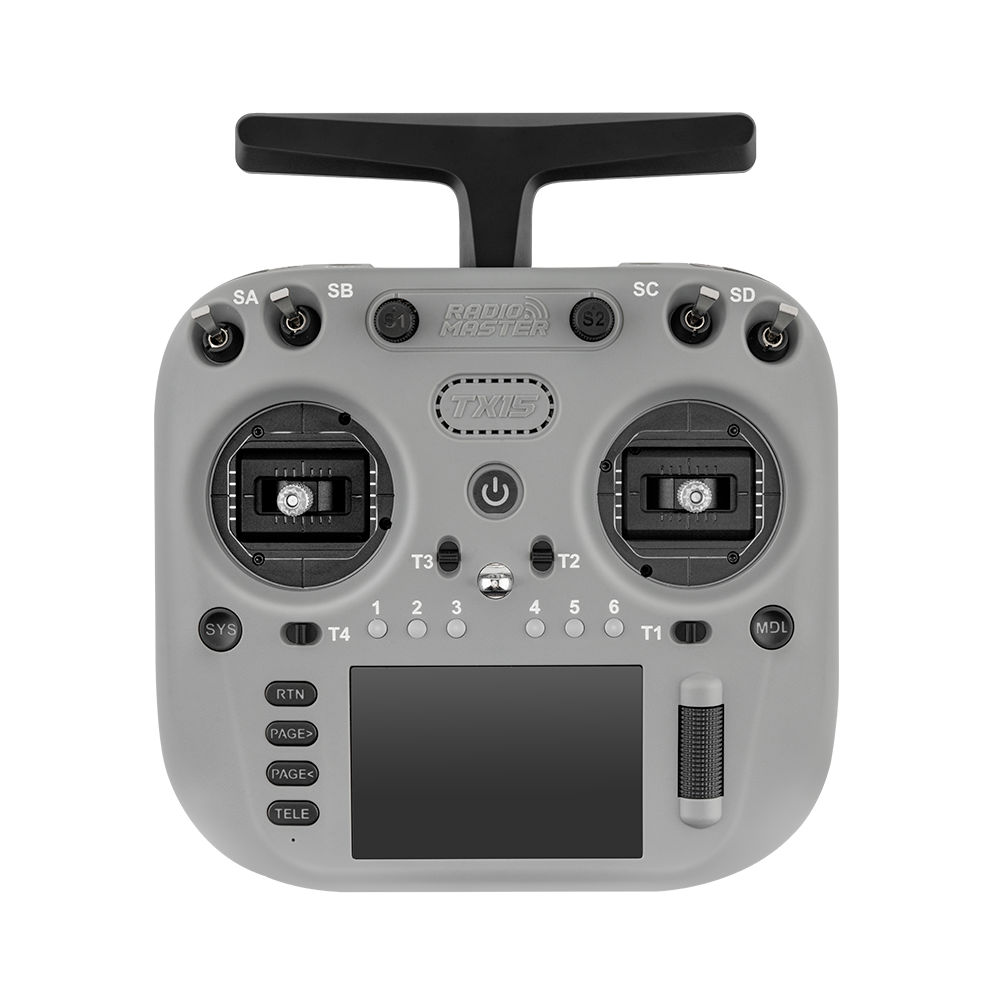

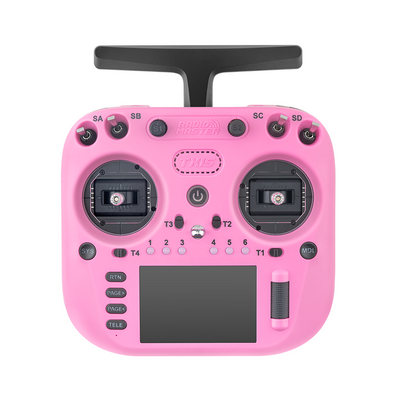

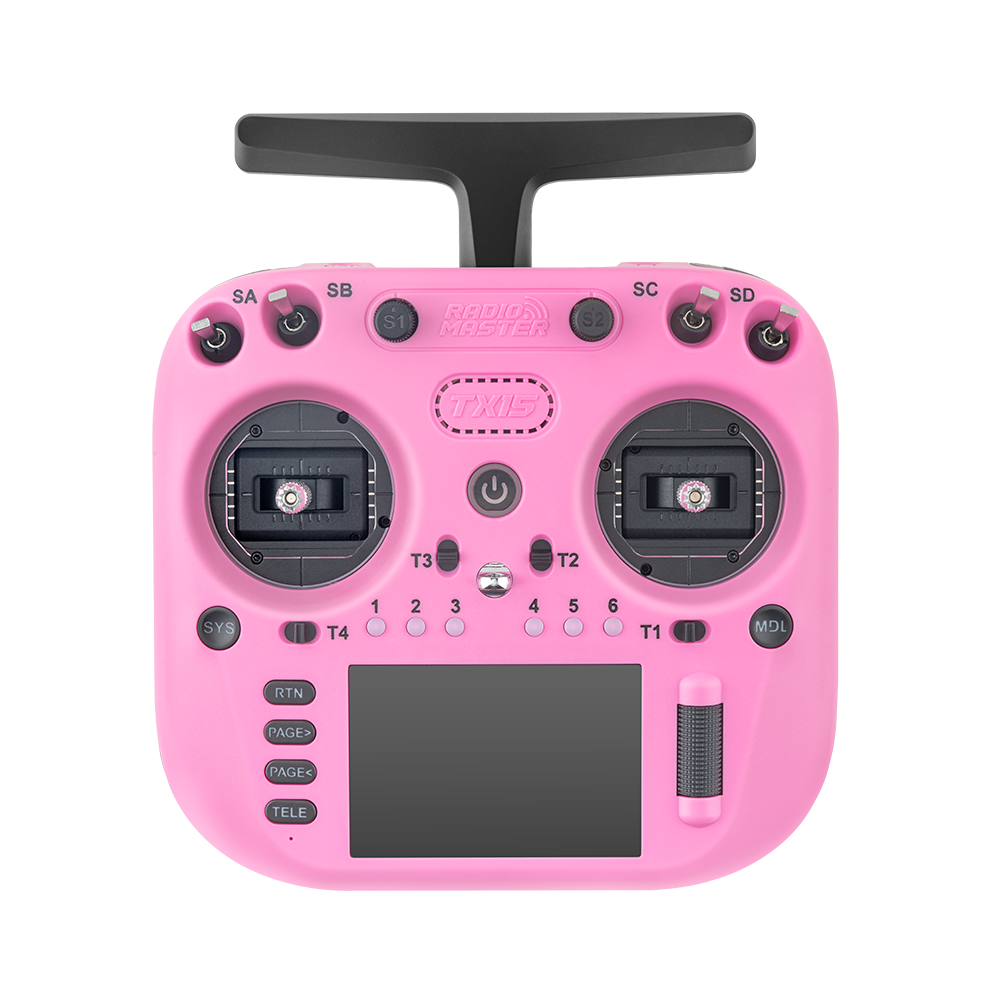

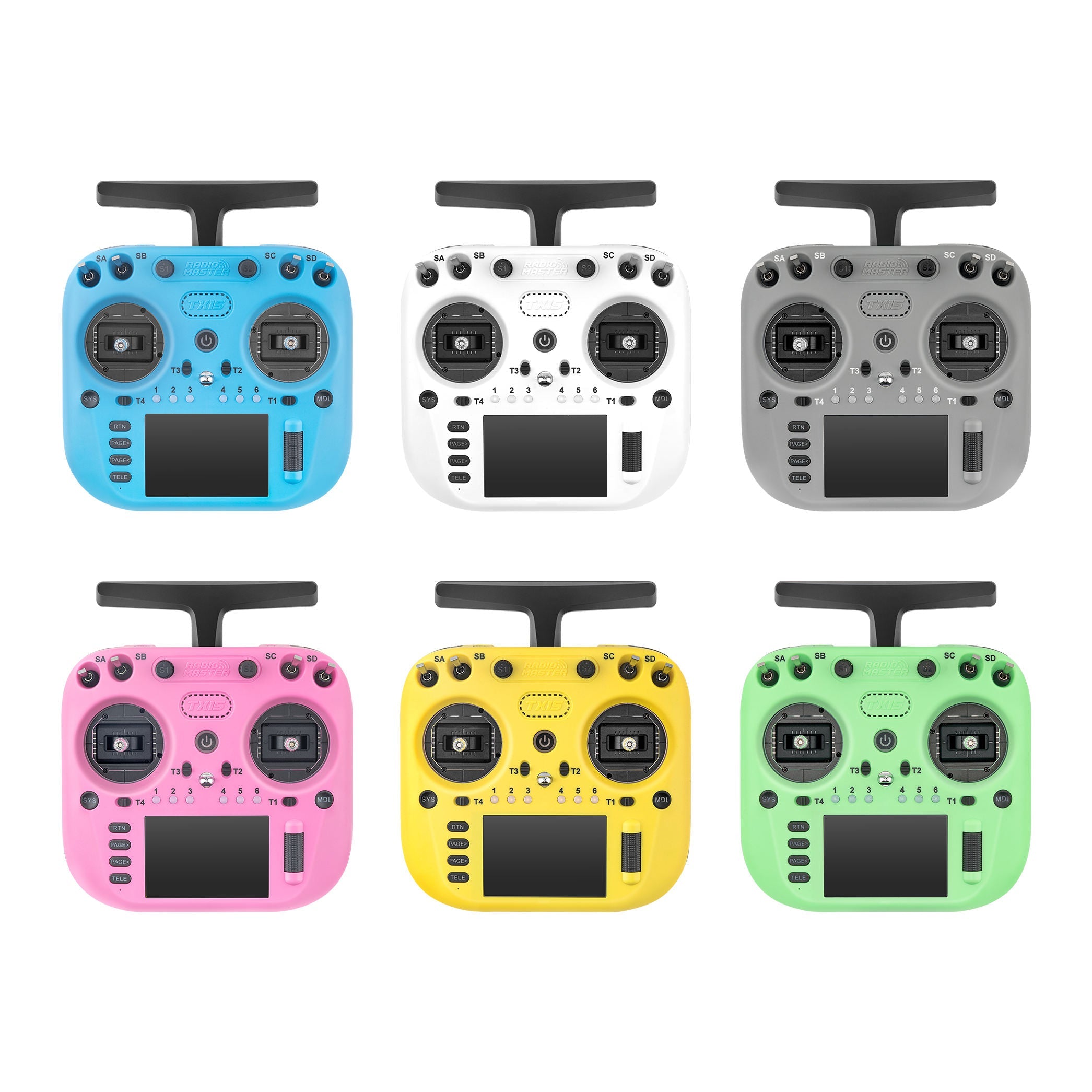

TX15 EdgeTX ELRS Radio w/ 3.5" Touchscreen Hall
Specifications
Model: TX15 Radio Controller
Dimensions: 178mm × 168mm × 81mm
Weight: 605g (Without battery)
Operating Frequency: 2.400GHz or Sub-GHz 900MHz Configuration Options
Internal RF Module: Built-In ExpressLRS (ELRS 2.4GHz / 900MHz Dual-Core Support)
Supported Protocols: ExpressLRS
Cooling System: Built-In Active Cooling Fan
Onboard Flash Memory: 4GB Storage
Micro SD Card Slot: Supports up to 32GB FAT32 Format (Disables internal flash when inserted)
Antenna Gain: 2dB Adjustable Transmission Power
Working Current: 875mA Max at Maximum Power Output
Operating Voltage: DC 6.6V - 8.4V
Radio OS Firmware: EdgeTX Operating System (Requires Version 3.0.0 or above)
RF Module Firmware: ExpressLRS Official Ecosystem
Channel Count: Up to 16 Channels (Receiver dependent)
Display Screen: 3.5-Inch IPS Color Touchscreen (480 × 320 Resolution)
Battery Compatibility: 7.4V 2S LiPo, Dual 3.7V 18650, or 21700 5000mAh Battery Packs (Batteries sold separately)
Connectivity Interface: USB-C For Charging and Simulator Play
Gimbal Type: Standard V5.0 High Precision Hall Sensor Gimbals
Gimbal Stick End Threads: M4 Specifications
Firmware Upgrade Mode: USB-C Interface via UF2 Bootloader Mode
Expansion Bay: Standard JR Module Bay Compatible
3.5-Inch IPS Touchscreen provides a vibrant 480x320 color interface, making it incredibly fast and intuitive to swipe through menus, adjust models, and navigate EdgeTX settings on the fly.
V5.0 Precision Hall Gimbals deliver butter-smooth stick movement and ultra-accurate centering performance, utilizing frictionless magnetic sensors to eliminate classic stick drift completely.
Active Cooling Fan System pulls heat away from the internal high-power ExpressLRS transmitter transmitter chip, allowing you to push high packet rates and wattage during extreme long-range missions safely.
EdgeTX and ELRS Ecosystem brings a lethal open-source combo pre-flashed out of the box, supporting up to 16 low-latency channels and full LUA script control straight from your handset.
4GB Onboard Storage Storage gives you massive room for model profiles, voice packs, and telemetry logs, with an extra Micro SD slot ready to adapt to your preferred custom asset layout.
Standard JR Expansion Bay sits right on the back of the controller, allowing you to seamlessly snap on high-end external multi-protocol modules, crossfire systems, or ultra-power RF hardware.
What is in the Box 1x TX15 ExpressLRS EdgeTX Radio Controller (In Selected Color) 1x USB-C Data and Charging Cable 1x User Manual and Sticker Set
