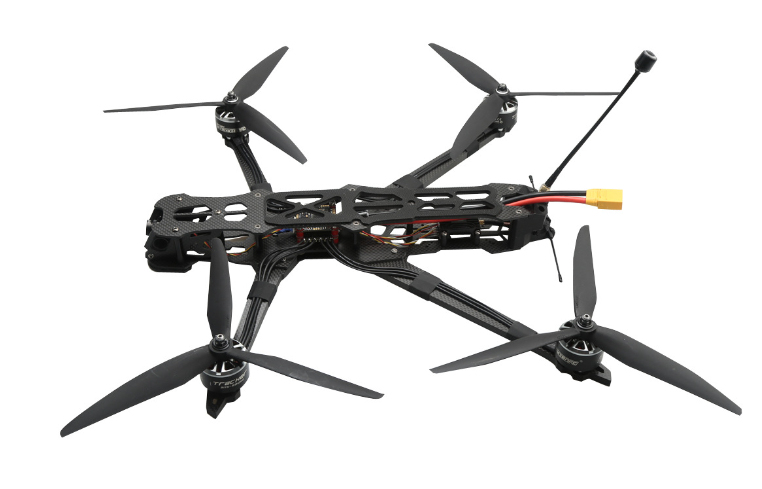

13" Heavy Lift LR FPV Drone Bundle (8S ELRS 915)
13" Heavy Lift LR FPV Drone Bundle (8S ELRS 915)

Vendor:FpvSupplyCo

13" Heavy Lift LR FPV Drone Bundle (8S ELRS 915)

$0.00
OVERALL SYSTEM PERFORMANCE
  • Airframe Class: 13-inch FPV Long-Range Quadcopter
  • Payload: 3.5-6kg
  • Flying Time (With Load): 8-15 min
  • Flying Time (No Load): 25 min
  • Battery: 16000mAh 8S
  • Image Transmission Distance: 5-10km (Open environment, no interference)
  • Flying Distance: 5-10km
  • Max Speed: 100km/h

PRODUCT OVERVIEW
Designed for heavy-lift commercial and cinematic operations, this high-performance 13-inch long-range FPV drone delivers a 25min unladen flight time or 8-15min carrying massive 3.5-6kg cinematic payloads on an ultra-powerful 8S propulsion system.
Powered by a massive 3000mW (3W) analog VTX, a GT-E2 starlight night vision FPV camera, and an ExpressLRS 915MHz receiver, it guarantees absolute signal confidence up to 5-10km at speeds up to 100km/h for demanding heavy-lift FPV and long-range cinematic filming.

CORE HIGHLIGHTS
  • Premium T700 True DC Carbon Frame
Milled with military-grade T700 carbon fiber and 7mm thick arms to eliminate high-frequency oscillations during heavy-lift flights. Symmetrical DeadCat (True DC) structure keeps propellers completely out of the camera's view.
  • Massive 3W Ultra-Power VTX
Blast through signal interference with a selectable VTX output scaling up to 3000mW (3W) running the IRC Tramp protocol. Paired with a Lollipop 4+ 150mm antenna for maximum analog signal penetration.
  • GT-E2 Night Vision Camera
Master low-light scouting and twilight filming. The built-in GT-E2 features an ultra-low minimum illumination of 0.01Lux @ F1.2 and a wide D160 lens (160-degree FOV) for crystal-clear night operations.
  • Sub-GHz ELRS 915MHz Link
Utilizing the ESP8285 MCU and SX1276 RF chip running the low-latency CRSF protocol, this setup ensures unmatched control range and supports convenient WIFI firmware updates.

SPECIFICATIONS

  1. Frame
  • Structure & Wheelbase: True DC (DeadCat) / 550mm
  • Material & Thickness: Premium T700 Carbon Fiber / 7mm Arms, 2mm Top & 3mm Bottom Plates
  • Stack Mount Dimensions: M3 x 30.5mm flight stack holes / M2 x 20/25.5mm & M3 x 30.5mm VTX holes
  • Spacing & Clearances: 20mm FPV camera spacing / Max 13.0 inch propeller frame clearance
  • Motor Mounting Pattern: 16mm x 16mm / 19mm x 19mm
  • Plate Dimensions: Top Plate 33.5 x 6.5cm / Bottom Plate 33.5 x 6.5cm
  • Height of Electronic Device Layer: 25mm

  1. Motor
  • Model & KV: 4215 Cinematic Edition / 480KV
  • Operating Voltage & Cells: 6-8S LiPo
  • Configuration & Size: 12N14P / Diameter 49 x 32.5mm
  • Motor Weight: 246g
  • No-load Current: 2.8A @ 20V
  • Phase Resistance: 48 mOhm
  • Maximum Current: 60A
  • Maximum Power: 1760W
  • Maximum Thrust: 4850g

  1. Flight Controller (FC - F722)
  • MCU: STM32F722RET6
  • Gyroscope: ICM42688
  • Barometer: DPS310 or SPL06
  • Blackbox: 16M
  • On-Screen Display: AT7456 (SPI Control)
  • Onboard BEC outputs: 9V regulated (max 2A) / 5V regulated (max 2A)
  • Input Voltage: 12-50V (Supports up to 8S LiPo setups)
  • System Interfaces: M1-M8 Motor support, Serial Ports (6 groups), CR (Current), M1 (Camera tune), VI (Camera input), VO (VTX output), LED, B-/B+ (Buzzer), RC (SmartPort), Rssi
  • Dimensions & Weight: 40.6 x 40.6 x 9.8mm / 19.6g
  • Mounting Hole Spacing: 30.5mm M3 holes

  1. ESC (80A 8S)
  • Model & Firmware: BLHeli_S 4IN1 80A (Firmware Name: Q H 40_24_V0.19.2)
  • Power Capability: 80A Continuous Current / 90A Burst Current (10s)
  • Battery Compatibility: 4-8S LiPo (No BEC / Integrated Current Sensor)
  • Current Ratio Value: 200
  • ESC Telemetry: Not supported
  • Size & Weight: 57 x 56 x 6mm / 28g
  • Mounting Hole Spacing: 30.5 x 30.5mm

  1. Camera (Night Vision)
  • Model & Image Sensor: GT-E2 (E2) / 1/3" CMOS (16:9 aspect ratio)
  • Resolution & Format: 1280H x 720V / NTSC/PAL Switchable
  • Lens Optics & FOV: 2.1mm focal length / D160 diagonal Field of View (160-degree FOV)
  • Low-Light Capability: Min. Illumination 0.01Lux @ F1.2 / S/N Ratio >52dB (AGC OFF)
  • Synchronization: Internal Electronic Sync
  • Electronic Shutter: PAL: 1/50 - 100,000s / NTSC: 1/60 - 100,000s
  • Video Output: CVBS

  1. VTX & Antenna
  • VTX Transmission Power: PIT / 25mW (13.95dBm) / 3000mW (34.04dBm)
  • VTX System Protocols: IRC Tramp / Standard 72 Channels (Customizable within 4867-6100MHz range)
  • Supported Voltage & BEC: 7-36V Input / 5V 500mA Output
  • Form Factor: 38.5 x 35.5 x 10.76mm (30.5 x 30.5mm mounting) / Weight: 15.6g / MMCX interface
  • Lollipop 4+ Long Antenna: 150mm stem length / High-impact PC+ABS shell / Root reinforcement with 360-degree protection

  1. Receiver (RX)
  • Model & Protocol: ELRS 915MHz / CSRF Protocol (915MHz or 868MHz frequency range)
  • Chipset Stack: ESP8285 MCU + SX1276IMLTRT RF Transceiver
  • Operating Voltage: 5V (100mA current draw) / IPEX1 antenna connector
  • Size & Weight: 12mm x 12mm x 3mm / Ultra-light 0.6g (without antenna) / WIFI update supported
  • Telemetry Output Power: <17dBm

  1. Propellers
  • Model & Specs: Gemfan 1308 Tri-Blade Props / Pitch 8 inch / 6mm Center Hole
  • Weight & Material: 39g per prop / High-strength Fiberglass Nylon

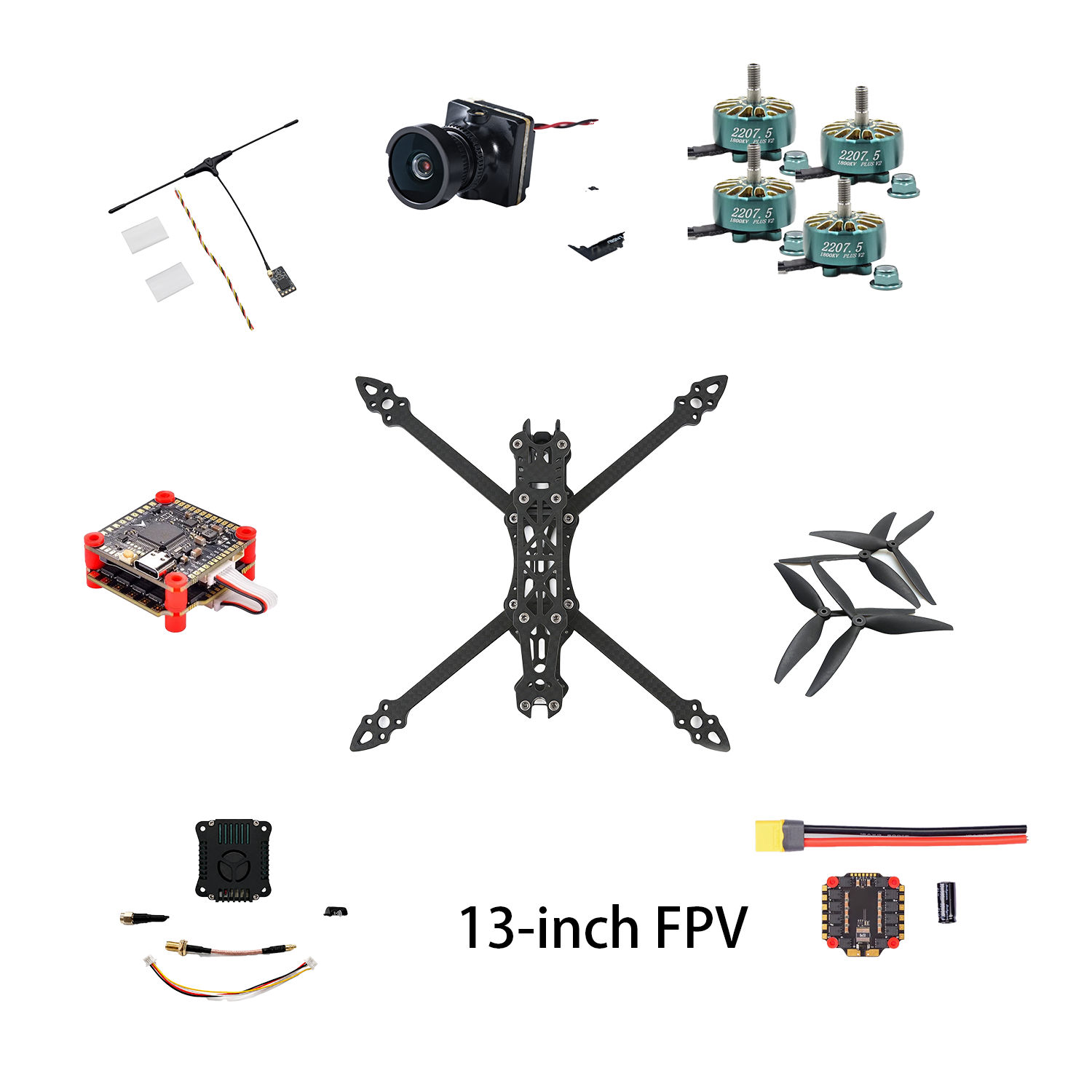

PACKAGE INCLUDES
  • 1x 13" True-DC FPV Drone Frame (550mm Wheelbase, T700 Carbon, 7mm Arms)
  • 1x F722 Flight Controller (30.5 x 30.5mm Mounting)
  • 1x 80A BLHeli_S 4-in-1 ESC (8S, Current Sensor Included)
  • 4x 4215 480KV Brushless Motors
  • 1x GT-E2 Low-Light Night Vision FPV Camera (Pre-installed)
  • 1x 5.8GHz 3W Analog Video Transmitter (VTX, Pre-installed)
  • 1x ExpressLRS 915MHz Long-Range Receiver (Pre-installed)
  • 1x Lollipop 4+ Long-Stem 150mm Antenna (MMCX, Pre-installed)
  • 4x Gemfan 1308 Tri-Blade Propellers (2x CW, 2x CCW)
