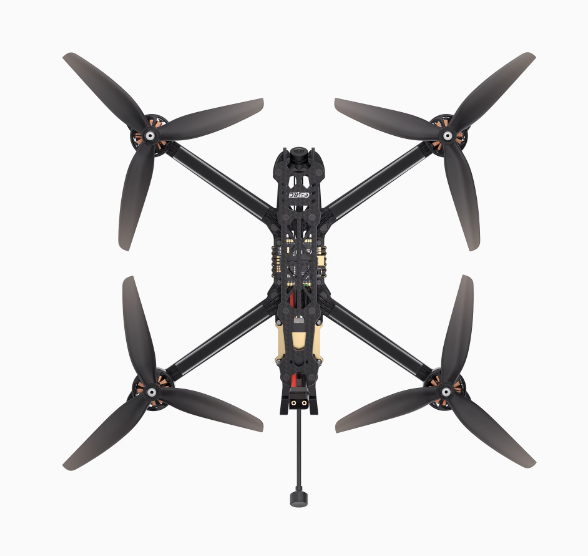

5" Heavy Lift LR FPV Drone Bundle (6S ELRS 915)
5" Heavy Lift LR FPV Drone Bundle (6S ELRS 915)

Vendor:FpvSupplyCo

5" Heavy Lift LR FPV Drone Bundle (6S ELRS 915)

$0.00
OVERALL SYSTEM PERFORMANCE

  • Airframe Class: 5-inch FPV Long-Range Quadcopter
  • Payload: 1-2kg
  • Flying Time (With Load): 8-10 min
  • Flying Time (No Load): 20 min
  • Battery: 1500mAh - 2200mAh 6S 22.2V
  • Image Transmission Distance: 5-10km (Open environment, no interference)
  • Flying Distance: 5-20km
  • Max Speed: 150km/h

PRODUCT OVERVIEW

Built for professional creators, this high-performance 5-inch long-range FPV drone delivers a 20min unladen flight time or 8-10min carrying a heavy 1-2kg cinematic payload on a robust 6S propulsion system. Powered by a massive 2500mW (2.5W) analog VTX, a GT-E2 starlight night vision FPV camera, and an ExpressLRS 915MHz receiver, it guarantees absolute signal confidence up to 5-10km (max range 5-20km) at speeds up to 150km/h for demanding freestyle FPV and cinematic missions.

CORE HIGHLIGHTS

  • Premium T700 True H Carbon Frame:
Milled with military-grade T700 carbon fiber and 5mm thick arms to eliminate high-frequency oscillations during high-speed flights.
  • Massive 2.5W High-Power VTX:
Delivers up to 2500mW (34.04dBm) output paired with a Lollipop 4+ 150mm antenna for maximum signal penetration.
  • GT-E2 Night Vision Camera:
Features an ultra-low minimum illumination of 0.01Lux @ F1.2 and a wide D160 lens (160-degree FOV) for crystal-clear night operations.
  • Sub-GHz ELRS 915MHz Link:
Utilizing the ESP8285 MCU and SX1276 RF chip, this setup ensures unmatched control range and supports convenient WIFI firmware updates.

SPECIFICATIONS
1. Frame
  • Structure & Wheelbase: True H / 225mm
  • Material & Thickness: Premium T700 Carbon Fiber / 5mm Arms, 2mm Top & Bottom Plates
  • Stack Mount Dimensions: M3 * 30.5mm flight stack holes / M2 * 20/25.5mm & M3 * 30.5mm VTX holes
  • Spacing & Clearances: 20mm FPV camera spacing / Max 10.0 inch propeller frame clearance
  • Motor Mounting Pattern: 16mm x 16mm / 19mm x 19mm

2. Motor
  • Model & KV: 2207.5 Cinematic Edition / 1800KV
  • Operating Voltage & Cells: 3-6S LiPo
  • Configuration & Size: 12N14P / 28.7 x 31.3mm
  • Performance Metrics: Max Continuous Power (60S) 809W / Internal Resistance 68 mOhm / Idle Current 1.0A @ 10V

3. Flight Controller (FC - F405)
  • Dimensions: 37 x 37mm (30.5 x 30.5mm mounting)
  • Onboard BEC outputs: 9V regulated (max 2A) / 5V regulated (max 3A) / 4.5V (Receiver power, USB only)
  • System Interfaces: CR (Current), M1 (Camera tune), VI (Camera input), VO (VTX output), LED, B-/B+ (Buzzer), RC (SmartPort), Rssi

4. ESC (50A 6S)
  • Model & Firmware: BLHeli_S 4IN1 50A
  • Power Capability: 50A Continuous Current / 60A Burst Current (10s)
  • Battery Compatibility: 2-6S LiPo (No BEC / Integrated Current Sensor)
  • Form Factor: 37 x 42.7mm (30.5 x 30.5mm mounting) / Weight: 21.5g

5. Camera (Night Vision)
  • Model & Optical Sensor: GT-E2 (E2) / 1/3" CMOS (16:9 aspect ratio)
  • Resolution & Format: 1280H x 720V / NTSC/PAL Switchable
  • Lens Optics & FOV: 2.1mm focal length / D160 diagonal Field of View (160-degree FOV)
  • Low-Light Capability: Min. Illumination 0.01Lux @ F1.2 / S/N Ratio >52dB (AGC OFF)

6. VTX & Antenna
  • VTX Transmission Power: PIT / 25mW (13.95dBm) / 2500mW (34.04dBm)
  • VTX System Protocols: TBS SmartAudio / Standard 40 Channels (A/B/E/F/R/L/V/U/H)
  • Form Factor: 38 x 38 x 13mm (30.5 x 30.5mm mounting) / Weight: 28g / MMCX interface
  • Lollipop 4+ Long Antenna: 150mm stem length / High-impact PC+ABS shell / Root reinforcement with 360-degree protection

7. Receiver (RX)
  • Model & Protocol: ELRS 915MHz / CSRF Protocol (915MHz or 868MHz frequency range)
  • Chipset Stack: ESP8285 MCU + SX1276IMLTRT RF Transceiver
  • Operating Voltage: 5V (100mA current draw) / IPEX1 antenna connector
  • Size & Weight: 12mm x 12mm x 3mm / Ultra-light 0.6g (without antenna) / WIFI update supported

8. Propellers
  • Model & Specs: T5146 Tri-Blade Props / Pitch 4 / 5mm Center Hole
  • Weight & Material: 24.5g (per full set of 2CW+2CCW) / High-strength Polycarbonate (PC)

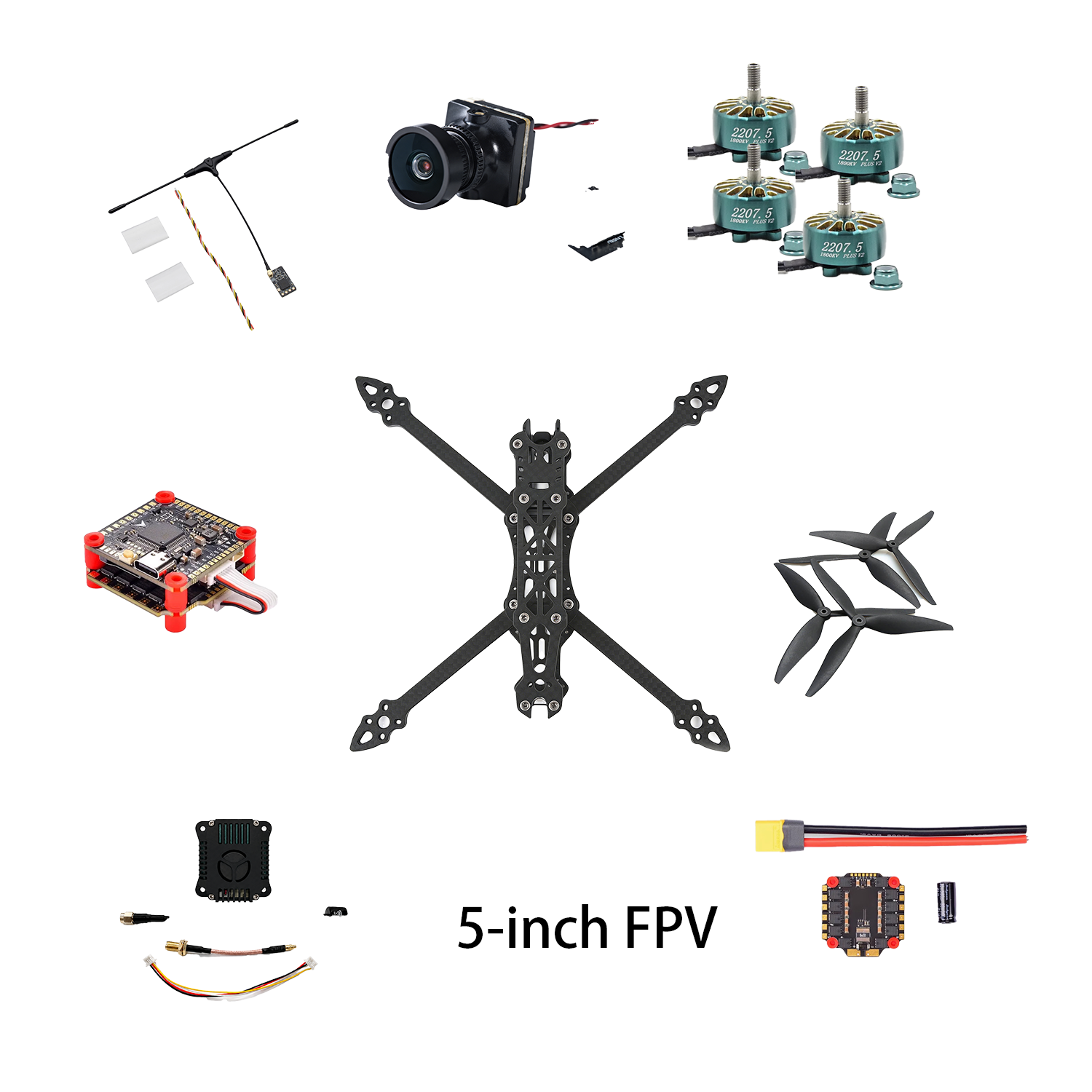

PACKAGE INCLUDES
  • 1 × 5" True-H FPV Drone Frame (225mm Wheelbase, T700 Carbon)
  • 1 × F405 Flight Controller (30.5×30.5mm Mounting)
  • 1 × 50A BLHeli_S 4-in-1 ESC (2–6S, Current Sensor Included)
  • 4 × 2207.5 1800KV Brushless Motors
  • 1 × GT-E2 Low-Light Night Vision FPV Camera
  • 1 × 5.8GHz 2.5W Analog Video Transmitter (VTX)
  • 1 × ExpressLRS 915MHz Long-Range Receiver
  • 1 × Lollipop 4+ Long-Stem 150mm Antenna (MMCX)
  • 4 × T5146 Tri-Blade Propellers (2 Clockwise + 2 Counter-Clockwise)
