7" Heavy Lift LR FPV Drone Bundle (6S ELRS 915)
7" Heavy Lift LR FPV Drone Bundle (6S ELRS 915)

Vendor:FpvSupplyCo

7" Heavy Lift LR FPV Drone Bundle (6S ELRS 915)

$0.00
OVERALL SYSTEM PERFORMANCE

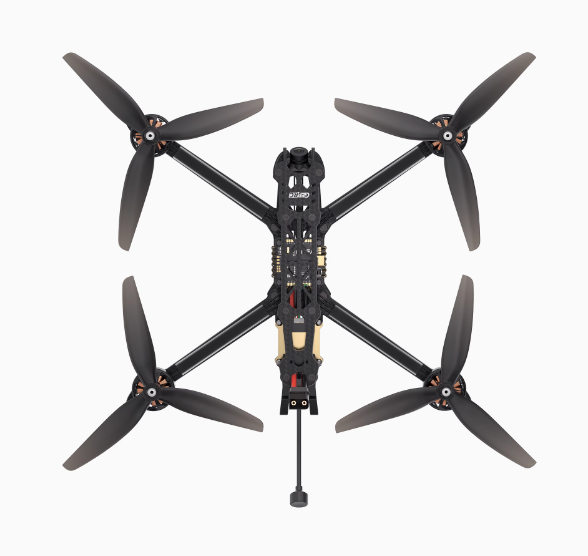

  • Airframe Class: 7-inch FPV Long-Range Quadcopter
  • Payload: 2-3kg
  • Flying Time (With Load): 8-15 min
  • Flying Time (No Load): 30 min
  • Battery: 8000mAh 6S 22.2V
  • Image Transmission Distance: 5-10km (Open environment, no interference)
  • Flying Distance: 5-20km
  • Max Speed: 150km/h

PRODUCT OVERVIEW

Designed for demanding commercial and cinematic operations, this high-performance 7-inch long-range FPV drone delivers an efficient 30min unladen flight time or 8-15min carrying heavy 2-3kg payloads on a robust 6S propulsion system.

Equipped with a high-power 2500mW (2.5W) 5.8G analog VTX, GT-E2 starlight night vision FPV camera, and a deep-penetration ELRS 915MHz receiver, it ensures absolute signal confidence up to 5-10km (max range 5-20km) at speeds up to 150km/h for heavy-lift freestyle and long-range cinematic filming.

HIGHLIGHTS

  • T700 Carbon Frame & Reinforced 7mm Arms
Milled with premium T700 carbon fiber featuring ultra-thick 7mm arms to eliminate high-frequency oscillations and secure maximum rigidity during high-speed heavy-lift flights.
  • Massive 2.5W Ultra-Power VTX
Blast through obstacles with up to 2500mW (34.04dBm) output paired with a Lollipop 4+ 150mm antenna for industry-leading analog signal penetration.
  • GT-E2 Night Vision FPV Camera
Master low-light scouting and night operations. Boasts an ultra-low minimum illumination of 0.01Lux @ F1.2 and a wide D160 lens (160-degree FOV).
  • Sub-GHz ELRS 915MHz Receiver Link
Powered by an ESP8285 MCU and SX1276 RF chip running the low-latency CRSF protocol, ensuring unmatched control range with support for WIFI firmware updates.


SPECIFICATIONS

1.Frame
  • Structure & Wheelbase: True H / 295mm
  • Material & Thickness: Premium T700 Carbon Fiber / 7mm Arms, 2mm Top & Bottom Plates
  • Electronic Space Height: 25mm
  • Stack Mount Dimensions: M3 * 30.5mm flight stack holes / M2 * 20/25.5mm & M3 * 30.5mm VTX holes
  • Spacing & Clearances: 20mm FPV camera spacing / Max 10.0 inch propeller frame clearance
  • Motor Mounting Pattern: 16mm x 16mm / 19mm x 19mm

2.Motor
  • Model & KV: 2810 Cinematic Edition / 1500KV
  • Operating Rated Voltage: 6S
  • No-load Current: 1A / 10V
  • Phase Resistance: 45 mOhm
  • Motor Weight: 47.9g
  • Maximum Current: 55A
  • Maximum Power: 900W
  • Maximum Thrust: 2655g
  • Motor Size: Diameter 33.5 x 17.5mm

3.Flight Controller (FC - F405)
  • Dimensions: 37 x 37mm (30.5 x 30.5mm mounting spacing)
  • Onboard BEC outputs: 9V regulated (max 2A) / 5V regulated (max 3A) / 4.5V (Receiver power, USB only)
  • System Interfaces: CR (Current), M1 (Camera tune), VI (Camera input), VO (VTX output), LED, B-/B+ (Buzzer), RC (SmartPort), Rssi

4.ESC (60A 6S)
  • Model & Firmware: BLHeli_S 4IN1 60A V1
  • Continuous Current: 60A
  • Burst Current (10s): 70A
  • BEC: No
  • Current Sensor: Yes
  • Battery Cells: 2-6S LiPo
  • Weight: 21.5g
  • Size: 37 x 42.7mm (30.5 x 30.5mm mounting spacing)

5.Camera (Night Vision)
  • Model & Optical Sensor: GT-E2 (E2) / 1/3" CMOS (16:9 aspect ratio)
  • Resolution & Format: 1280H x 720V / NTSC/PAL Switchable
  • Lens Optics & FOV: 2.1mm focal length / D160 diagonal Field of View (160-degree FOV)
  • Low-Light Capability: Min. Illumination 0.01Lux @ F1.2 / S/N Ratio >52dB (AGC OFF)

6.VTX & Antenna
  • Supported Voltage: 7-36V
  • BEC Output: 5V / 500mA
  • VTX Transmission Power: PIT / 25mW (13.95dBm) / 2500mW (34.04dBm)
  • VTX System Protocols: TBS SmartAudio / Standard 40 Channels (A/B/E/F/R/L/V/U/H)
  • Form Factor: 38 x 38 x 13mm (30.5 x 30.5mm mounting) / Weight: 28g / MMCX interface
  • Lollipop 4+ Long Antenna: 150mm stem length / High-impact PC+ABS shell / Root reinforcement with 360-degree protection

7.Receiver (RX)
  • Model & Protocol: ELRS 915MHz / CSRF Protocol (915MHz or 868MHz frequency range)
  • Chipset Stack: ESP8285 MCU + SX1276IMLTRT RF Transceiver
  • Operating Power Input: 5V (100mA current draw) / IPEX1 antenna connector
  • Size & Weight: 12mm x 12mm x 3mm / Ultra-light 0.6g (without antenna) / WIFI update supported
  • Telemetry Output Power: <17dBm

8.Propellers
  • Model & Specs: 7040 Tri-Blade Props / Pitch 4 / 5mm Center Hole
  • Weight & Material: 9.1g per prop / High-strength Polycarbonate (PC)

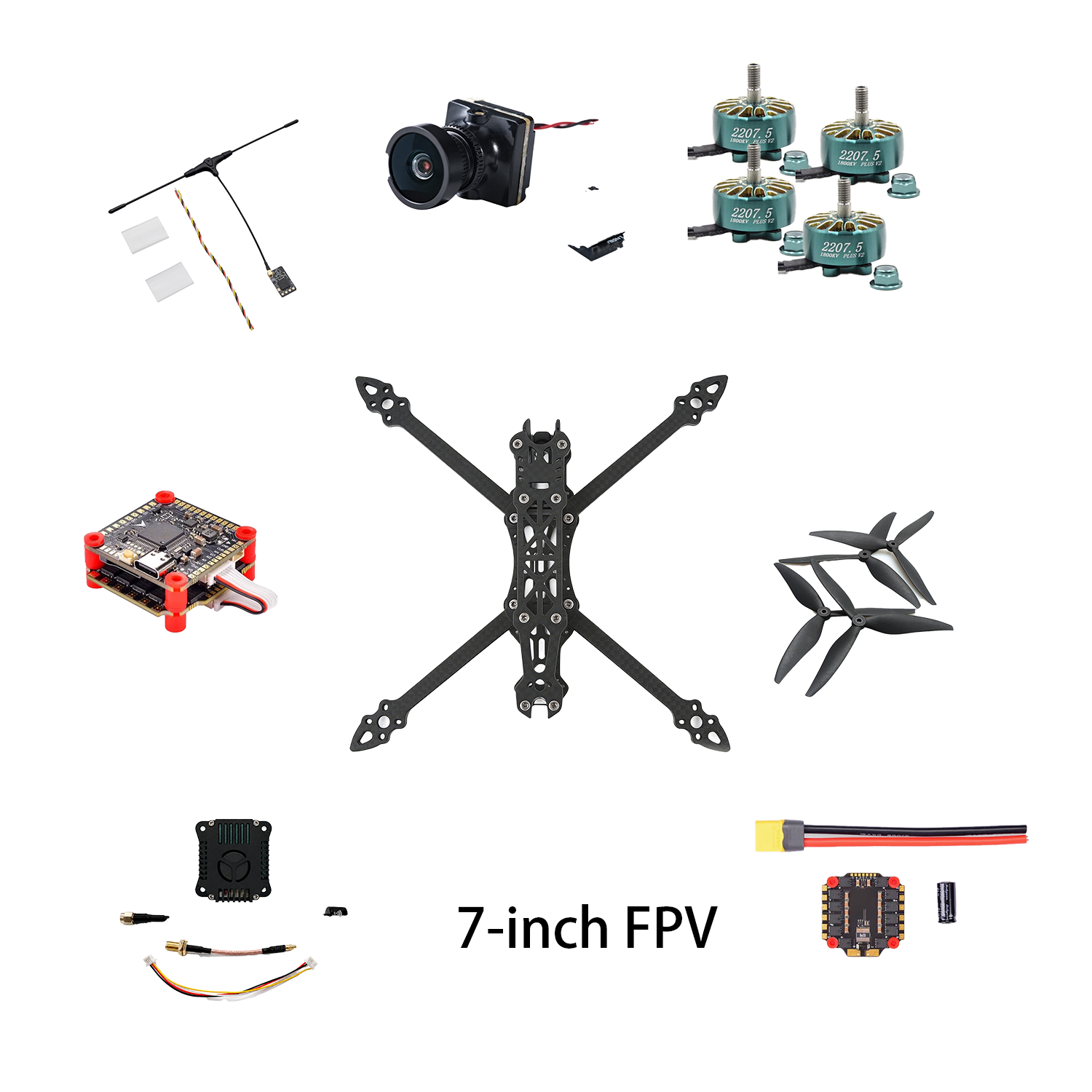

PACKAGE INCLUDES

  • 1 × 7" True-H FPV Drone Frame (295mm Wheelbase, T700 Carbon, 7mm Arms)
  • 1 × F405 Flight Controller (30.5 x 30.5mm Mounting)
  • 1 × 60A BLHeli_S 4-in-1 ESC (2–6S, Current Sensor Included)
  • 4 × 2810 1500KV Brushless Motors
  • 1 × GT-E2 Low-Light Night Vision FPV Camera (Pre-installed)
  • 1 × 5.8GHz 2.5W Analog Video Transmitter (VTX, Pre-installed)
  • 1 × ExpressLRS 915MHz Long-Range Receiver (Pre-installed)
  • 1 × Lollipop 4+ Long-Stem 150mm Antenna (MMCX, Pre-installed)
  • 4 × 7040 Tri-Blade Propellers (2x CW, 2x CCW)
