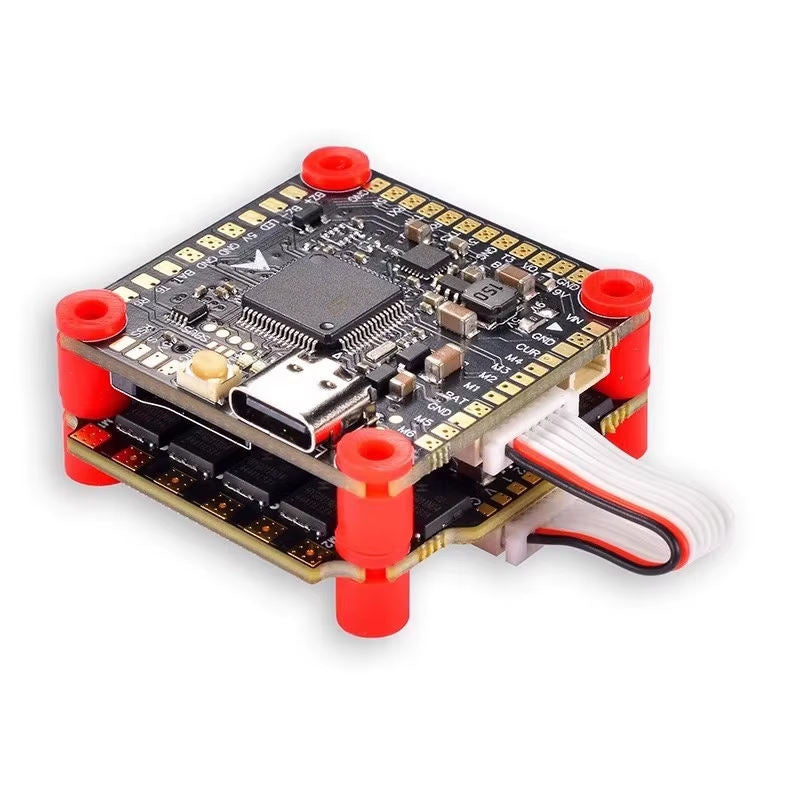

F405 Fly Stack 36x36 w/ 60A 4in1 ESC 2-6S BLHELI S
Specifications
F405 Fly Stack :
combo F405 Flight Controller+ 4in1 ESC 60A Max 70A HV2-6S BLHELI S
Model: F405V3FC Flight Control
MCU: STM32F405
Gyro: MPU6000
BEC output：5V 3A/9V 3A
Betaflight OSD with drag-and-drop layout configuration
Dshot supported
Receiver Protocols: ELRS / CRSF / SBUS / IBUS / PPM / Spektrum DSMX
Blackbox: MicroSD Card Slot
Built-in LC Filter
Physical Specifications:
FC Mounting Pattern:30.5 x 30.5mm
Dimensions:36 x 36mm
Weight:13g
Compatible with: 5–15 inch FPV drones and various UAV platforms
Supported Firmware:OMNIBUSF4SD/BF/INAV
Firmware Upgradable: Yes
Model: BLHELI -S-60A 4in1 ESC HV2-6S
Mounting Pattern:30.5 x 30.5mm
Dimensions:41 x 39 x 5mm
Weight:15g
Input Voltage: LIPO2-6S
Continuous Current: 60A
Burst Current: 70A (10s)
MCU: EF8BB21
ESC Signal Protocols: DShot150 / DShot300 / DShot600 / Multishot /
Oneshot / PWM
Current Sensor: Supported
Firmware: BLHELI-SJ_H_30_REV16_7
High-Power 60A Output: Features a heavy-duty 4-in-1 ESC delivering 60A continuous and 70A burst current, engineered to effortlessly handle high-voltage 2–6S LiPo setups.
Responsive & Reliable Core: Powered by the classic STM32F405 MCU and an industry-standard MPU6000 gyro for ultra-stable, locked-in flight control performance.
HD-Ready Dual BEC: Equipped with high-current 5V 3A and 9V 3A BEC outputs paired with a built-in LC Filter to provide clean, noise-free power for HD digital or analog VTX systems.
Versatile UAV Compatibility: Features standard 30.5x30.5mm mounting and multi-firmware support (Betaflight/INAV), making it a perfect fit for 5 to 15-inch FPV drones and UAV platforms.
