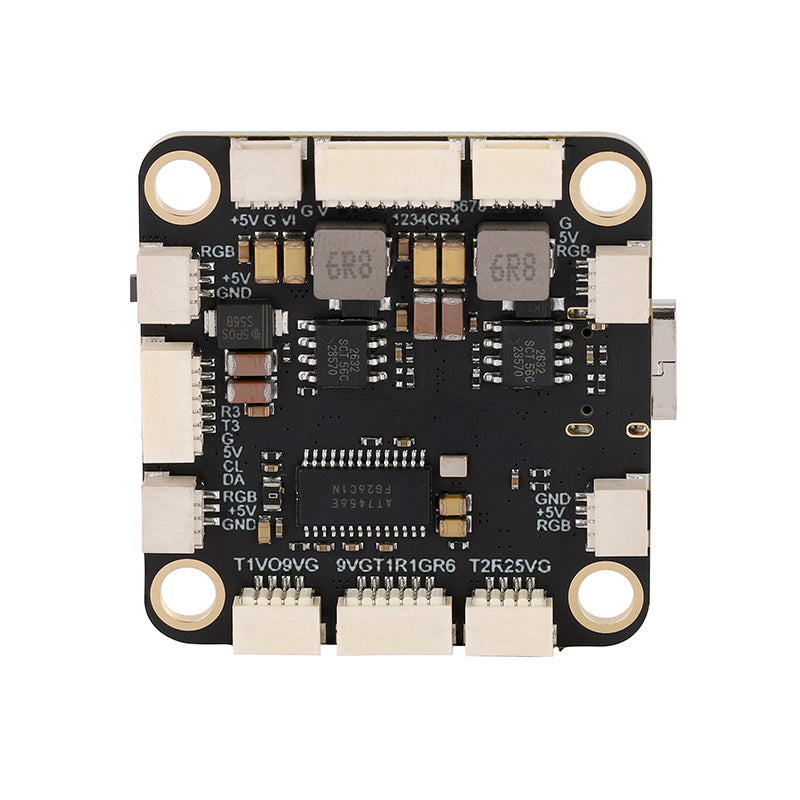

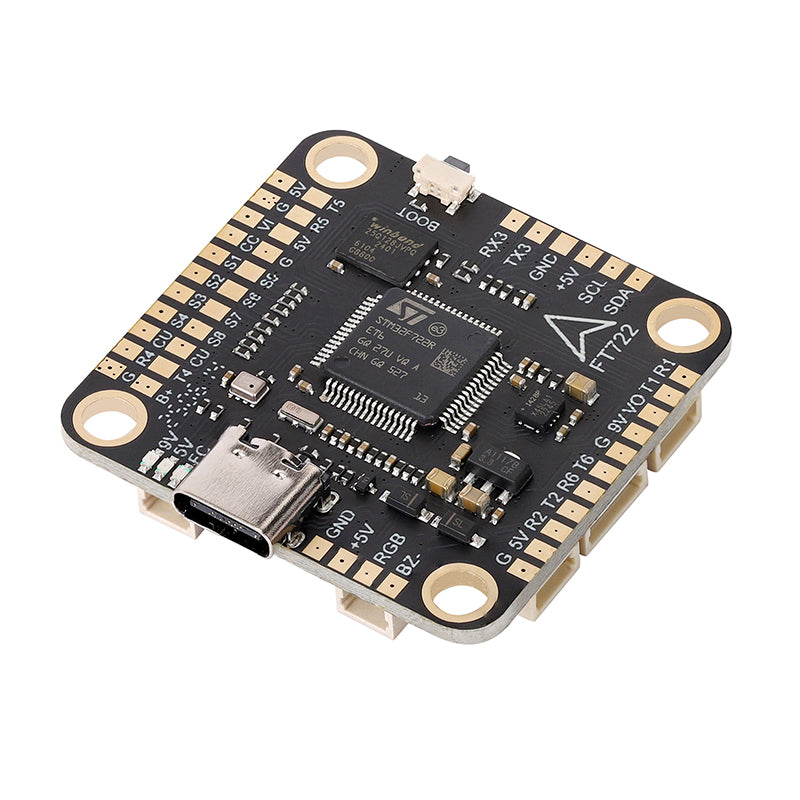

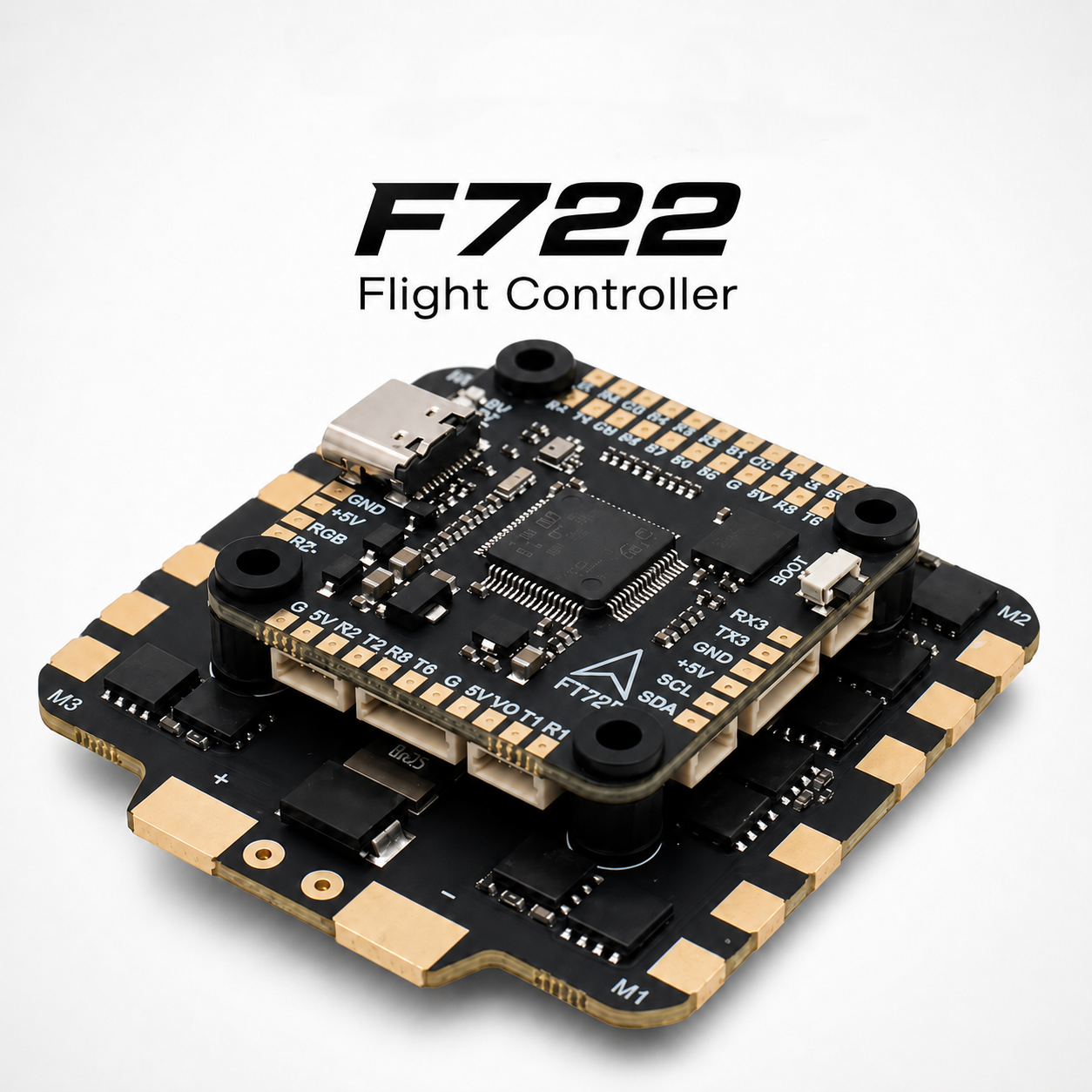

F722 Flight Controller 3-8S for FPV Drones
Specifications
Model: F722F7FC Flight Controller
MCU: STM32F722RET6
IMU (Gyro): ICM-42688
OSD: AT7456E
Barometer: SPL06-001
Blackbox: 16MB Flash Memory
USB Interface: Type-C
DFU Button: Yes
Input Voltage: 3–8S LiPo (11.4–36V)
BEC Output: 5V 3A (±0.1V) / 10V 3A (User 1)
Current & Voltage Sensors: Built-in
IO2 Port: User 2 customizable
UART Ports: 6 Sets (UART 1/2/3/4/5/6)
I2C Interface: I2C1
Receiver Protocols: ELRS (CRSF) / TBS (CRSF) / SBUS / IBUS / DSM2 / DSMX
ESC Signals: PWM, Oneshot125, Oneshot42, DShot150, DShot300, DShot600, Proshot
LED Strip Interface: Supported
Buzzer Pad: 5V Supported
Dimensions: 36 × 36mm
Mounting Pattern: 30.5 × 30.5mm (4mm hole diameter)
Weight: 8.8g
Supported Firmware: AXISFLYINGF7PRO (Betaflight) / iNav
Firmware Upgradable: Yes
F722 Flight Controller: High-performance F722 flight controller designed for cinematic, racing, and long-range FPV drones, offering ultimate responsiveness.
High-Speed Processing & Sensor Core: Features STM32F722RET6 MCU, ICM-42688 gyro, and SPL06-001 barometer for low-noise control and precise altitude hold.
3-8S Power & Dual BEC: Supports wide 3–8S LiPo input with heavy-duty 5V 3A and 10V 3A BEC outputs to cleanly power HD VTX systems.
Abundant 6 UARTs & Connectivity: Equipped with 6 full hardware UARTs and I2C interface for seamless connection of GPS, compass, and receivers.
Universal Receiver & ESC Protocols: Native compatibility with ELRS, TBS, SBUS, and DSMX links, supporting up to digital DShot600 motor signals.
Compact & User-Friendly Layout: Includes Type-C port, DFU button, 16MB blackbox, and current/voltage sensors in a lightweight 8.8g standard 30.5mm design.
Dual-Firmware Ecosystem: Fully compatible with both Betaflight and iNav platforms, providing total flexibility for freestyle tuning or long-range navigation.
