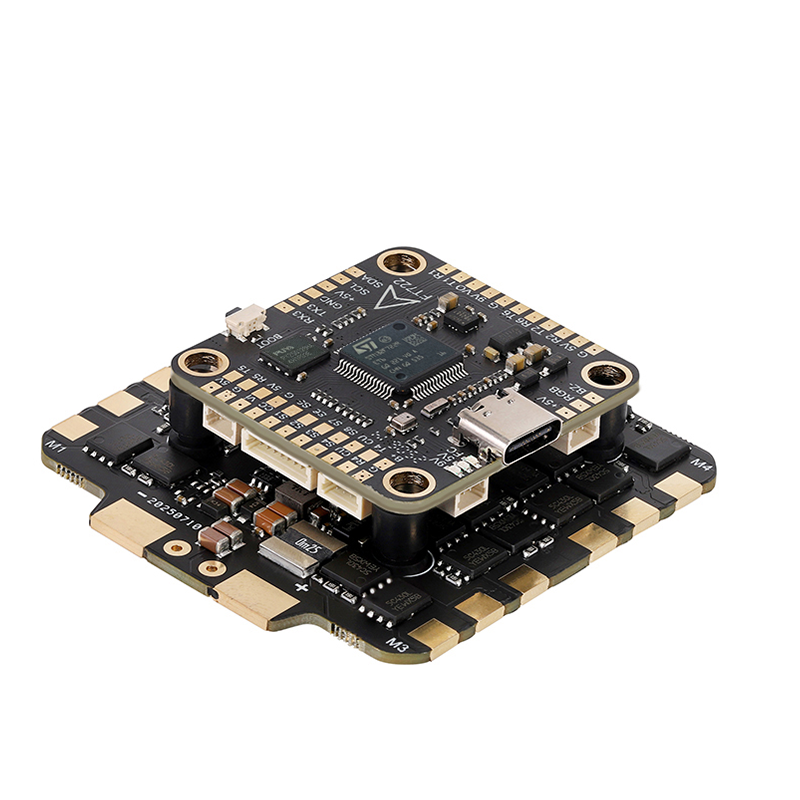

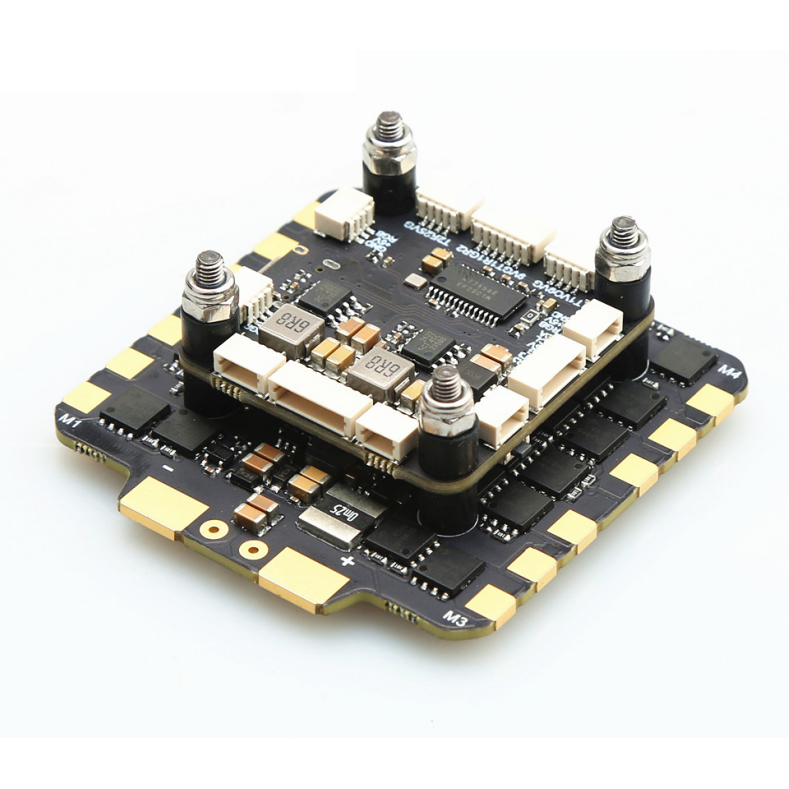

F722 80A 8S Fly Stack: A premium high-power electronics stack combining an F722 flight controller and an 80A ESC, built for heavy-lift cinematic and long-range 3–8S FPV drones.
Next-Gen Processing & Sensor Core: Features the STM32F722RET6 MCU, ultra-precise ICM-42688 gyro, and SPL06-001 barometer for low-noise filtering and accurate altitude hold.
Massive 80A Power Handling: Delivers 80A continuous per channel and 90A burst (10s), utilizing high-performance MOSFETs to handle heavy current demands safely.
High-Voltage Dual BEC System: Supports up to 8S input with 5V 3A and 10V 3A BEC outputs, including customizable User 1/User 2 switches to power HD VTXs and peripherals.
Abundant 6 UARTs & Expansion: Equipped with 6 hardware UARTs and an I2C interface, allowing full simultaneous integration of GPS, compass, and multiple sensors.
Universal Protocol Compatibility: Native support for top-tier radio links (ELRS, TBS, SBUS, DSMX) and driving signals from analog legacy up to digital DShot600.

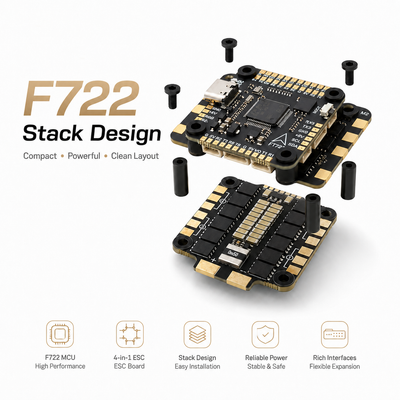

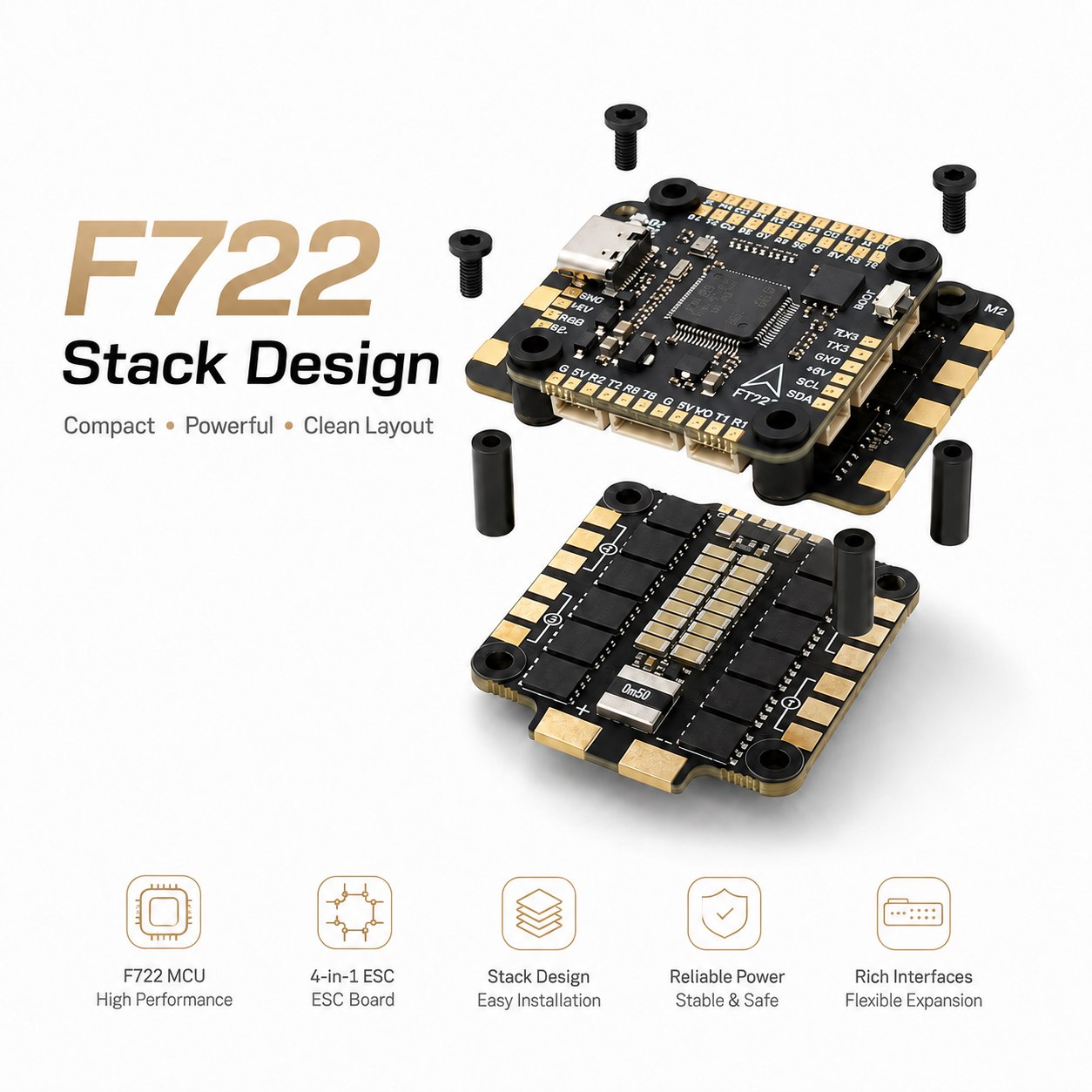

Pro-Grade Stack Layout: Includes Type-C port, DFU button, 16MB blackbox, and integrated current/voltage sensors in a heavy-duty, standard 30.5mm mounting design.
Dual-Firmware Flexibility: Fully optimized for both Betaflight and iNav ecosystems, giving pilots absolute freedom between aggressive freestyle tuning or autonomous long-range navigation.
The best way to confirm is to compare the product specifications with your build requirements. Check the product details carefully, including size, compatibility notes, connector type, and any technical information listed on the page.
Where can I find product specifications?
Product specifications are usually listed on the product page. If you need more details, review the description, technical notes, and any included compatibility information before placing your order.
