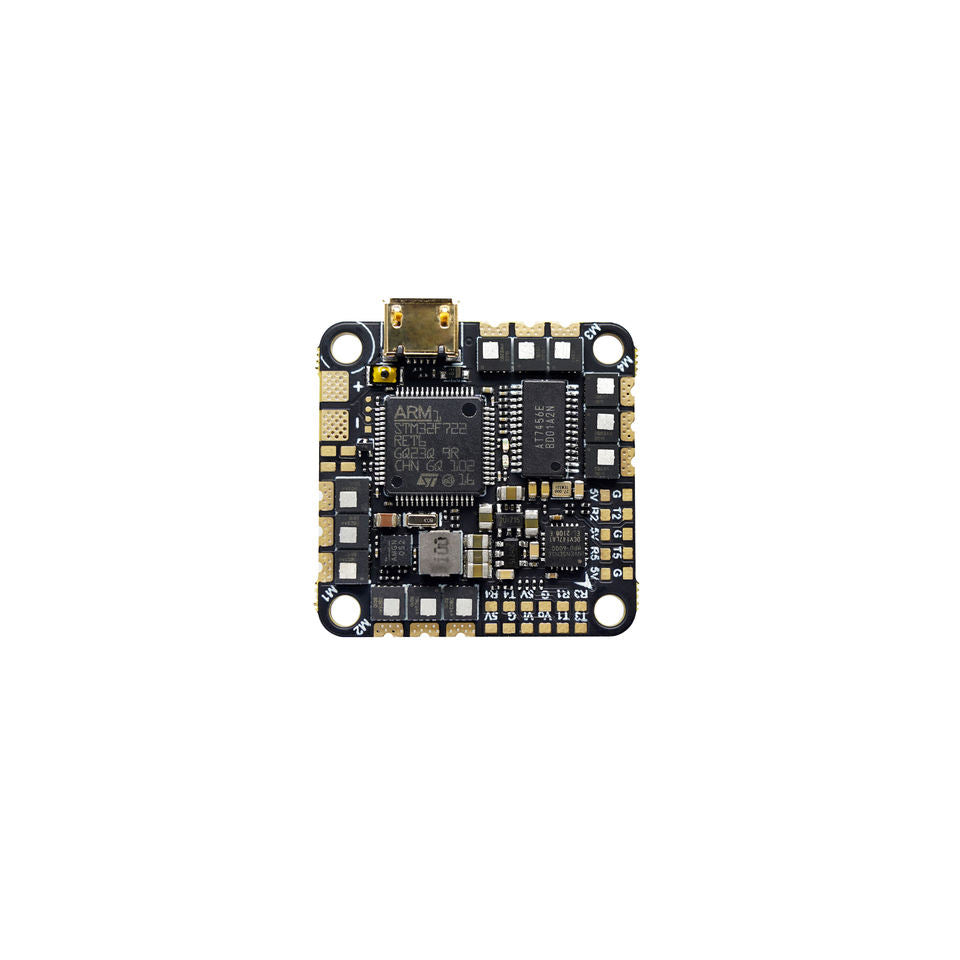

GEPRC TAKER F722 45A AIO V2 FPV Flight Controller with 4IN1 ESC Board

I am gald to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO,it is released now.

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,just plug and play.

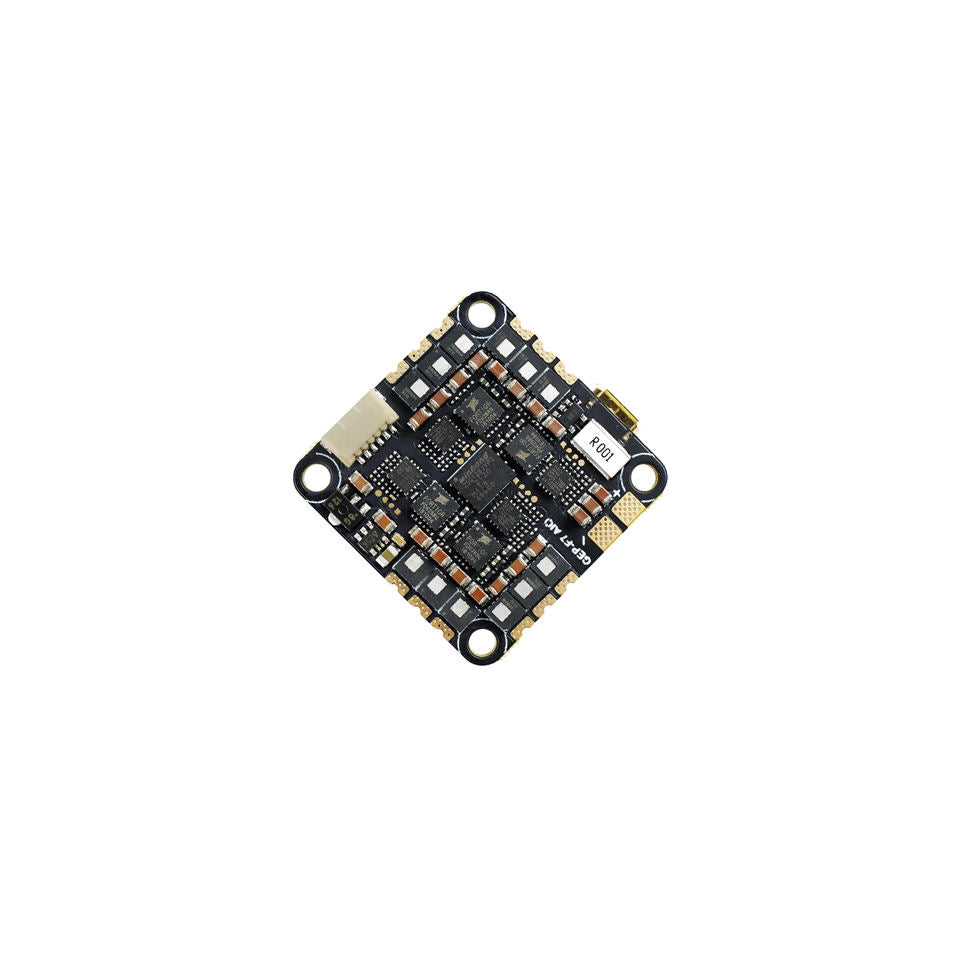

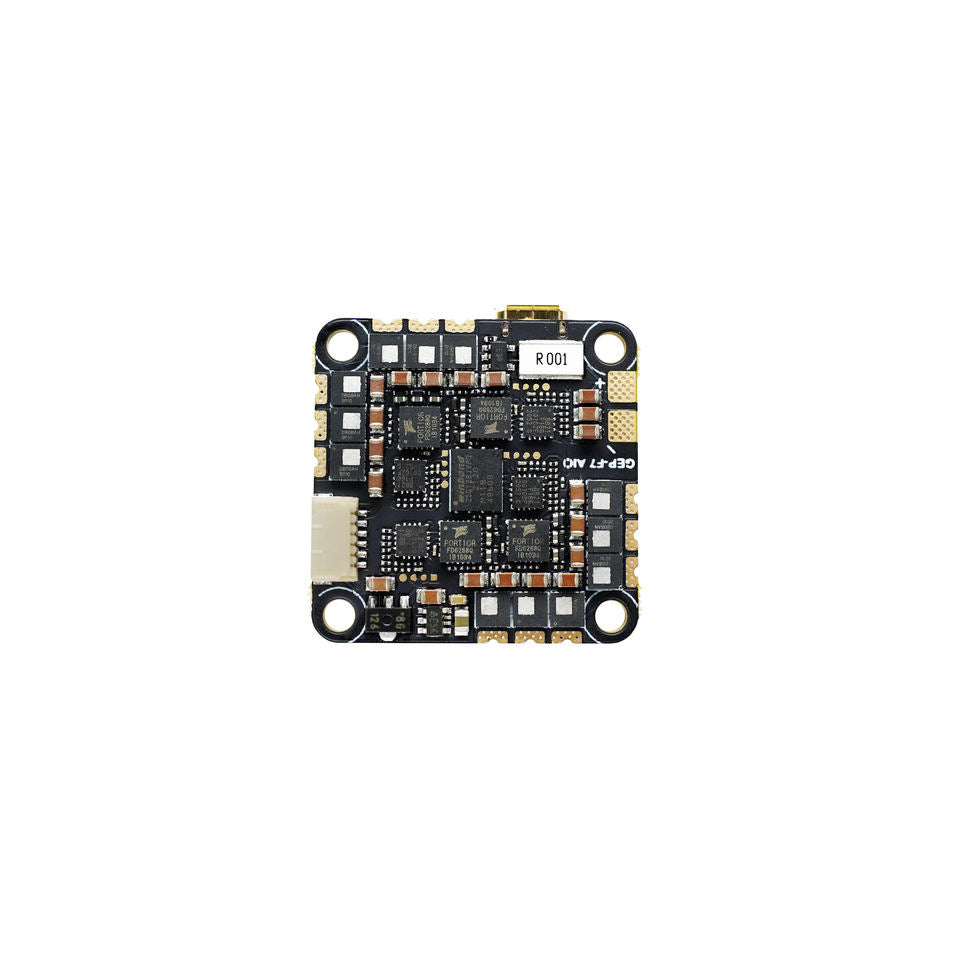

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.Support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 26.5mm * 26.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance of FC.

Specification

•  Model Name:GEP-F722-45A AIO
• MCU:STM32F722
•  IMU:MPU6000 gyro/accelerometer(SPI)
• Firmware target:GEPRC_F722_AIO
• OSD:Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
•  Beeper:YES
• LED:YES
•  USB:Micro USB
• BEC output:5V@1A
•  Intergrated LC Filter
•  ESC MCU:8BB21F16G
•  Continuous current:45A
•  MAX current:55A (10s)
•  Input:2~6S
•  Supports:Dshot600,Oneshot,Multishot
•  BlackBox: 16Mb
•  Traget:G_H_30

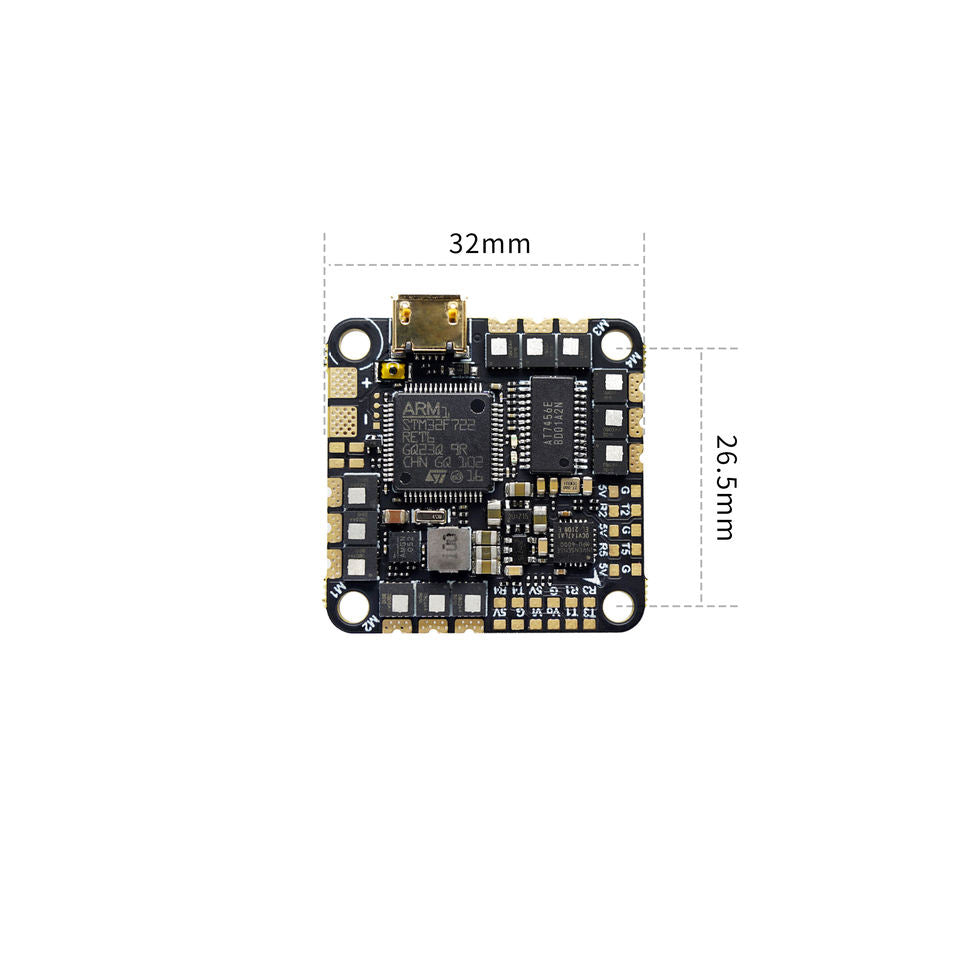

• Size:32x32mm Board
• Installing Hole:26.5×26.5mm,M2

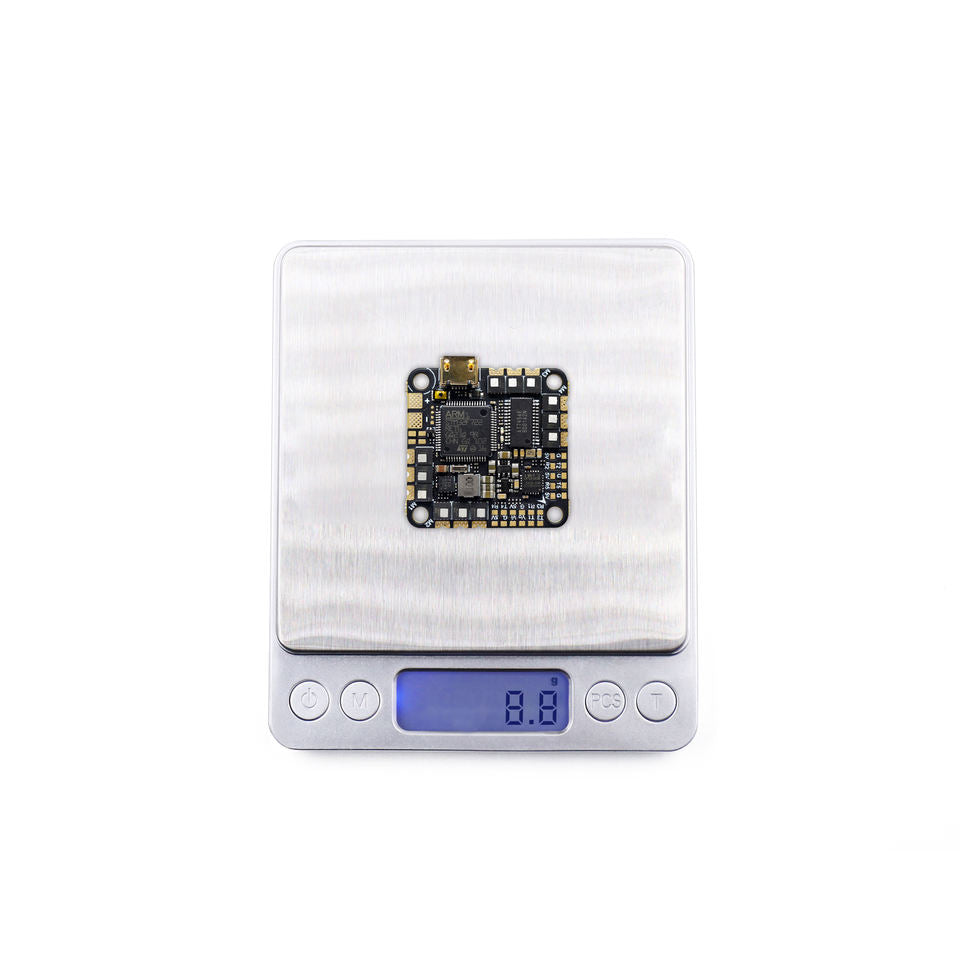

•  Weight:8.8g

Feature

• MCU:STM32F722,with strong performance and higher computing speed.
•  It has 5 full UART ports, which connect more external devices
• Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
•  The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
•  Support OSD parameter adjustment, buzzer, led and other functions.
• 8.8g ultra light weight
• 26.5mm * 26.5mm mounting hole, suitable for most frames

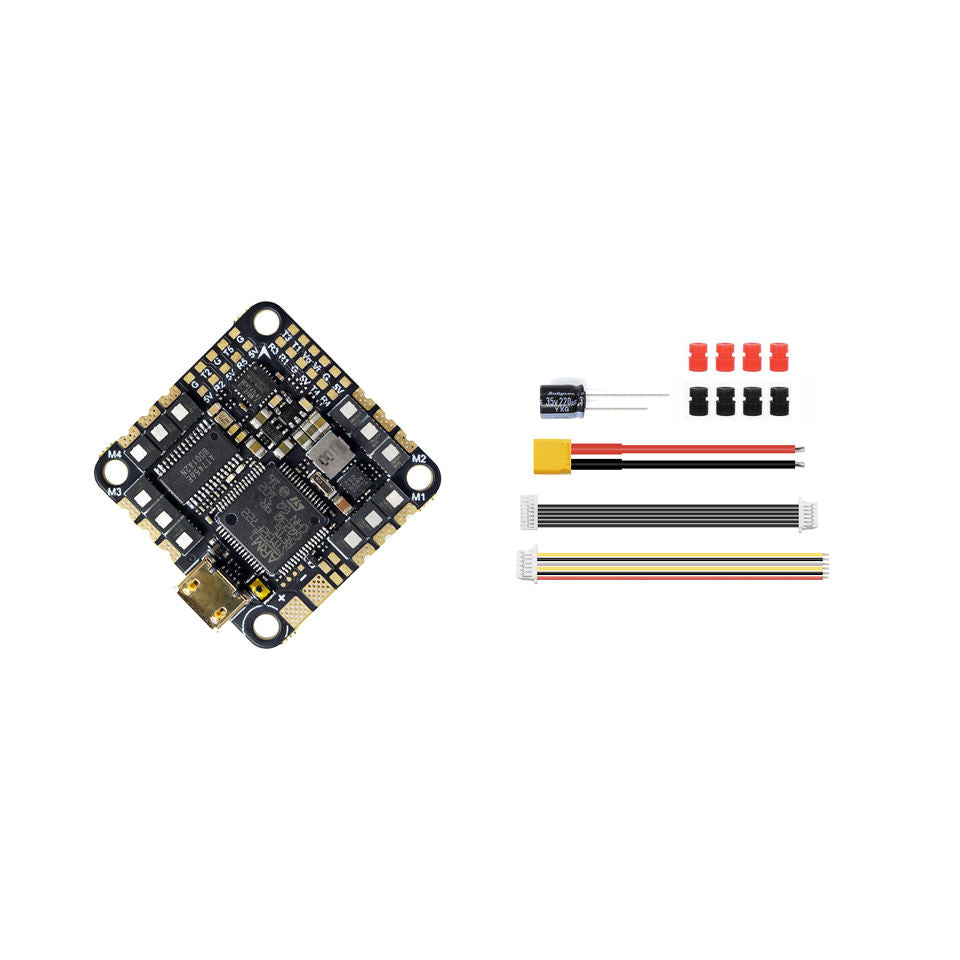

Includes

• 1 x GEP-F722-45A AIO
• 1 x XT30-7CM-18AWG Power cables
•  1 x 35V220UF capacitor
• 1 x SH1.0-6Pin to GH1.25-8Pin cables
• 8 x M2*6.5mm Damping rings
