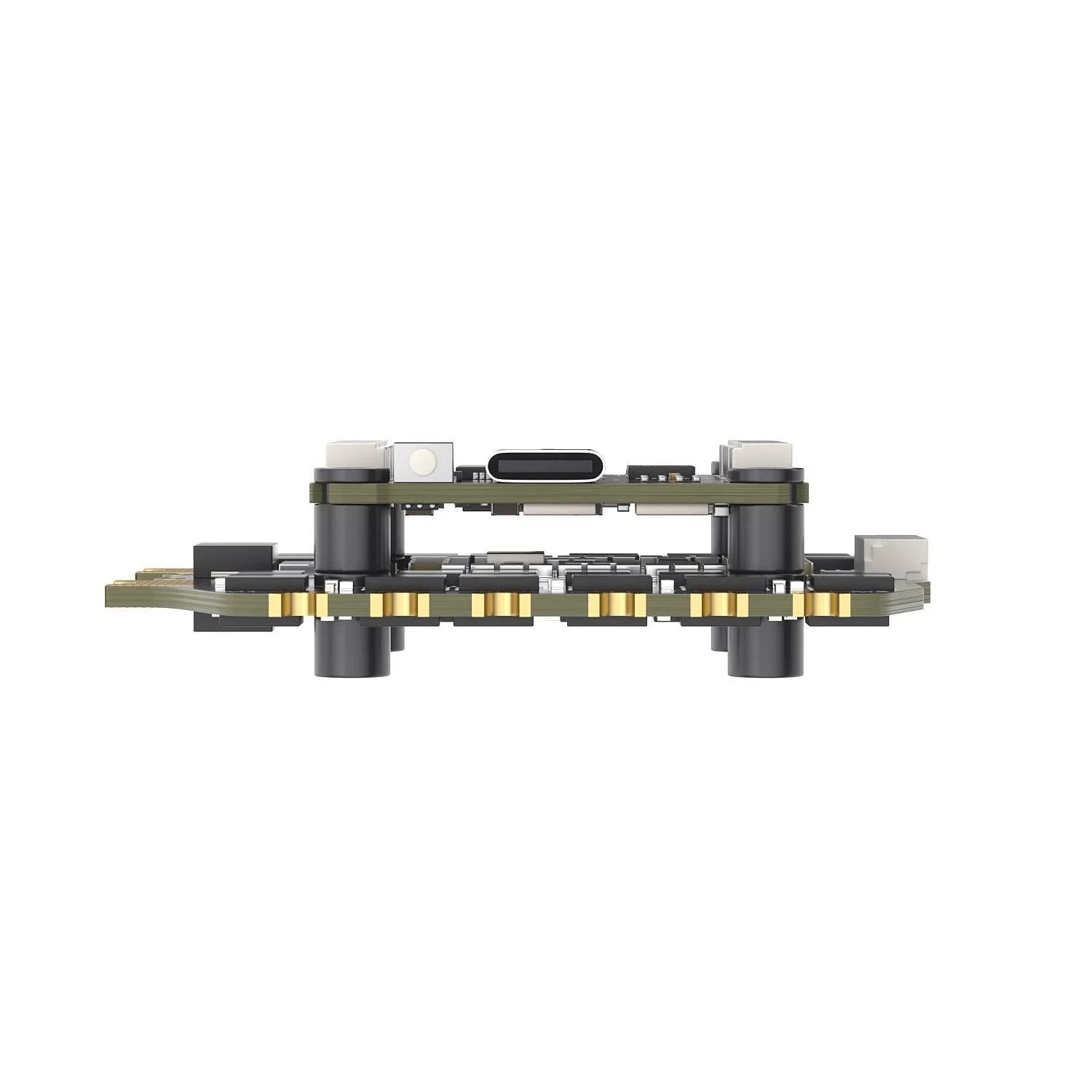

GEPRC TAKER F722 BLS 80A V2 FPV FC ESC Stack

Product Description

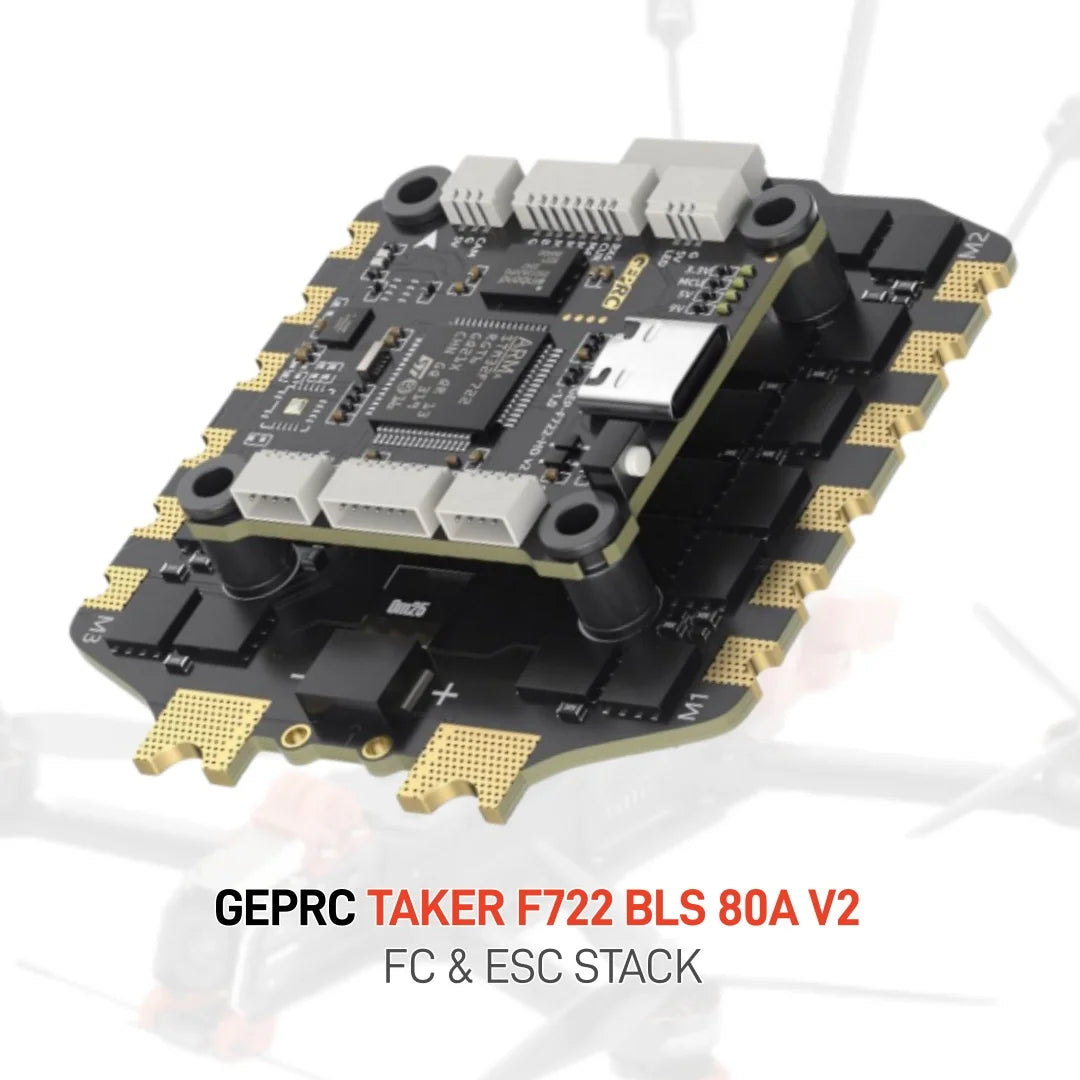

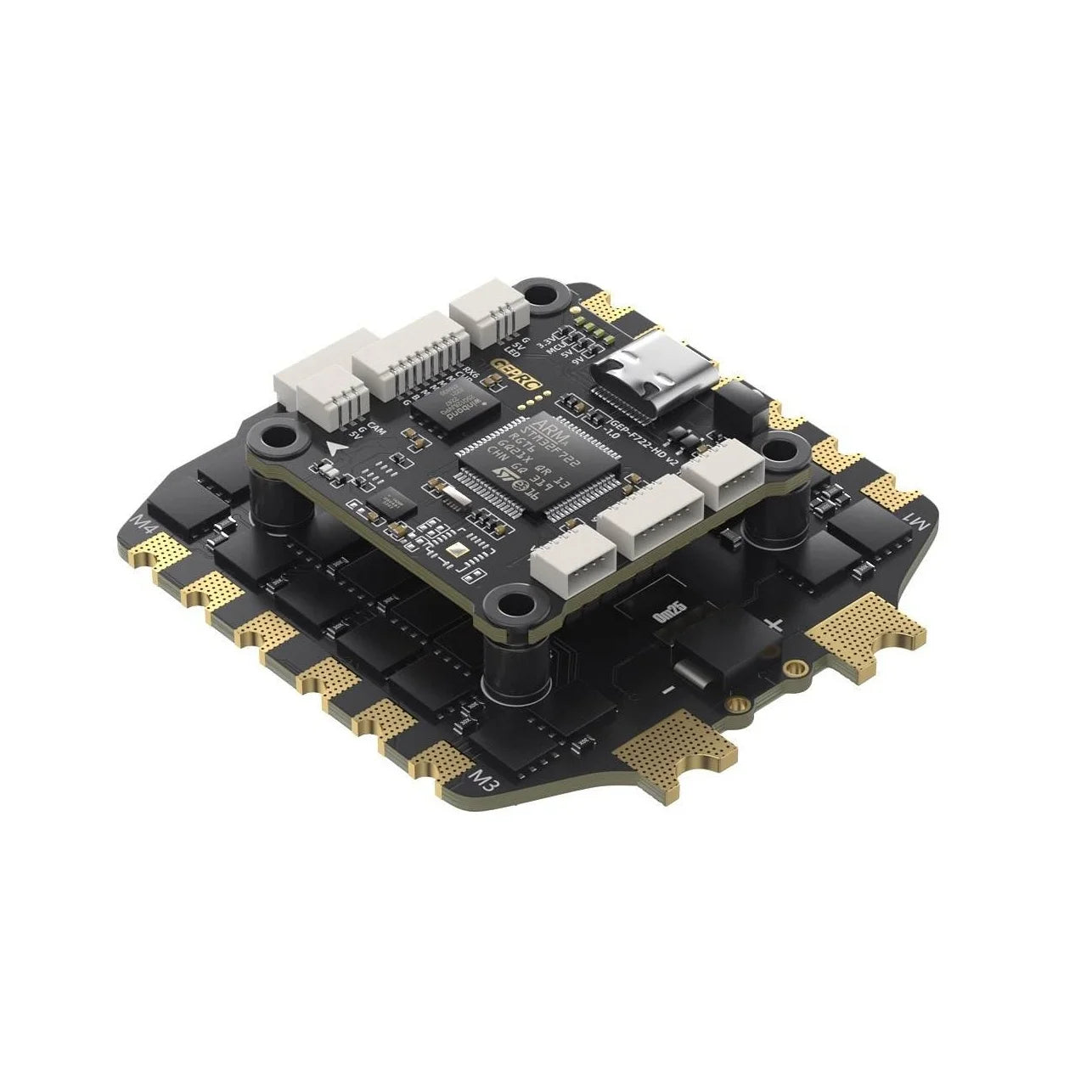

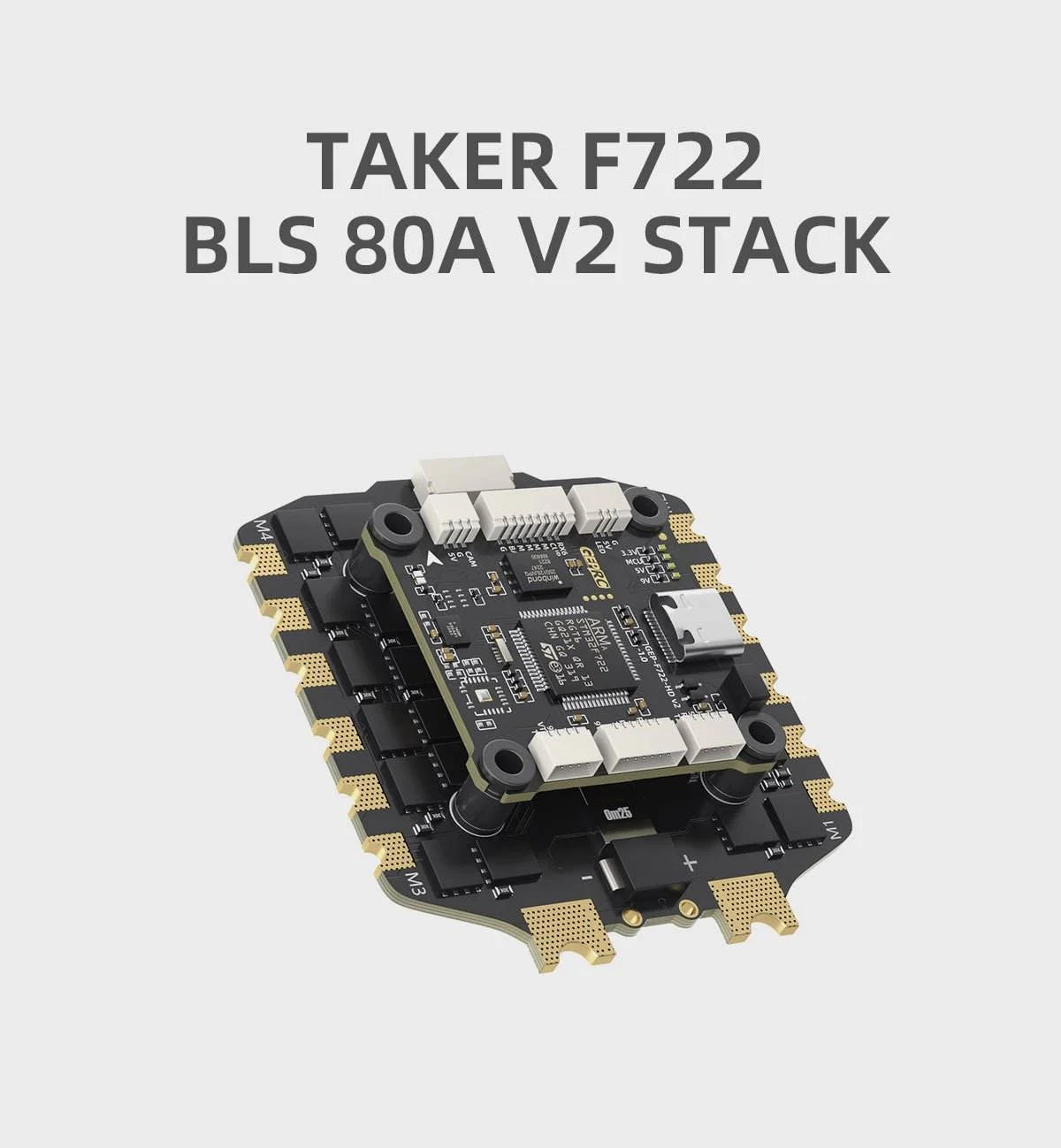

The GEPRC TAKER F722 BLS 80A V2 Stack is a high-performance flight controller and ESC combination designed for powerful FPV drones, large freestyle builds, and heavy-duty UAV applications.

Powered by the STM32F722 MCU and equipped with an ICM42688-P high-precision gyroscope, the flight controller provides fast processing, accurate attitude sensing, and smooth flight performance. It also features 16MB onboard Blackbox storage, dual independent 5V/3A and 9V/2.5A BEC outputs, and 6 UART ports for extensive peripheral connectivity.

The included 80A 4-in-1 ESC runs BLHeli_32 32-bit firmware and supports up to 80A continuous current and 85A peak current for 5 seconds, providing substantial power headroom for demanding FPV and large multirotor builds.

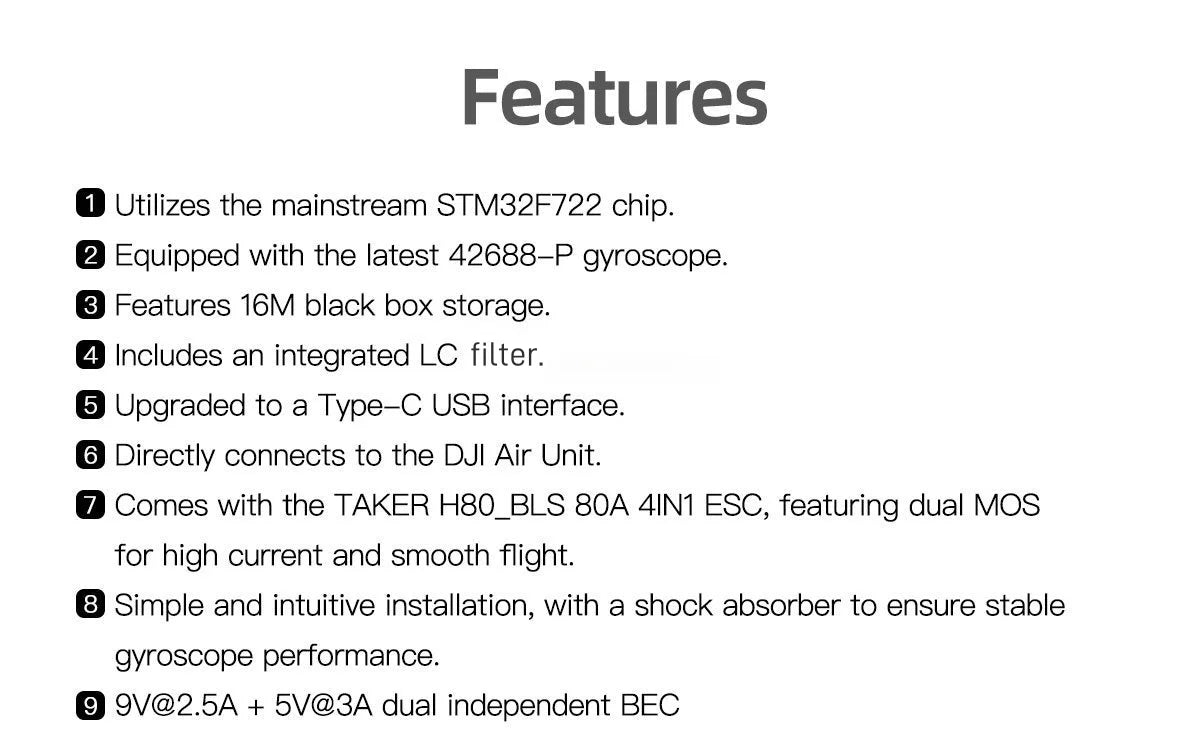

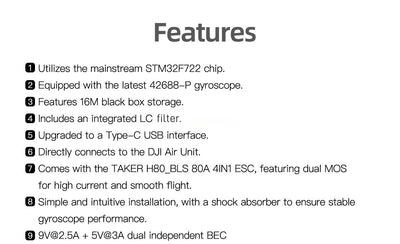

Key Features

1. Powerful STM32F722 MCU

Built around the STM32F722 main control chip, delivering abundant computing power for smooth operation with Betaflight and INAV and handling complex flight calculations efficiently.

2. ICM42688-P High-Precision Gyroscope

Equipped with the ICM42688-P gyro for accurate attitude detection, strong interference resistance, and precise flight control.

3. 16MB Onboard Blackbox

Features 16MB integrated Blackbox storage for recording detailed flight data, making tuning, analysis, and troubleshooting more convenient.

4. Dual Independent BEC Outputs

Provides independent 5V/3A and 9V/2.5A BEC outputs, delivering stable power to receivers, cameras, video transmitters, and other FPV peripherals.

5. 6 Independent UART Ports

With 6 UART ports, the flight controller provides excellent expandability for GPS, receivers, VTX systems, telemetry, and other external devices.

6. DJI Air Unit Direct Connection

Features a dedicated connector for compatible DJI Air Units, simplifying digital FPV system installation and reducing unnecessary soldering and wiring.

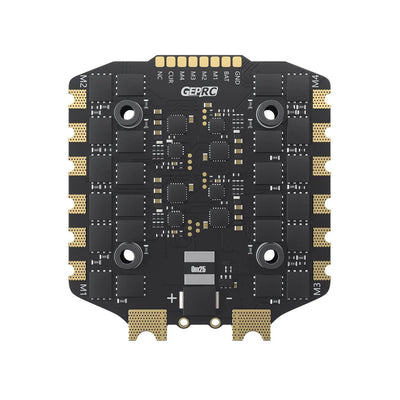

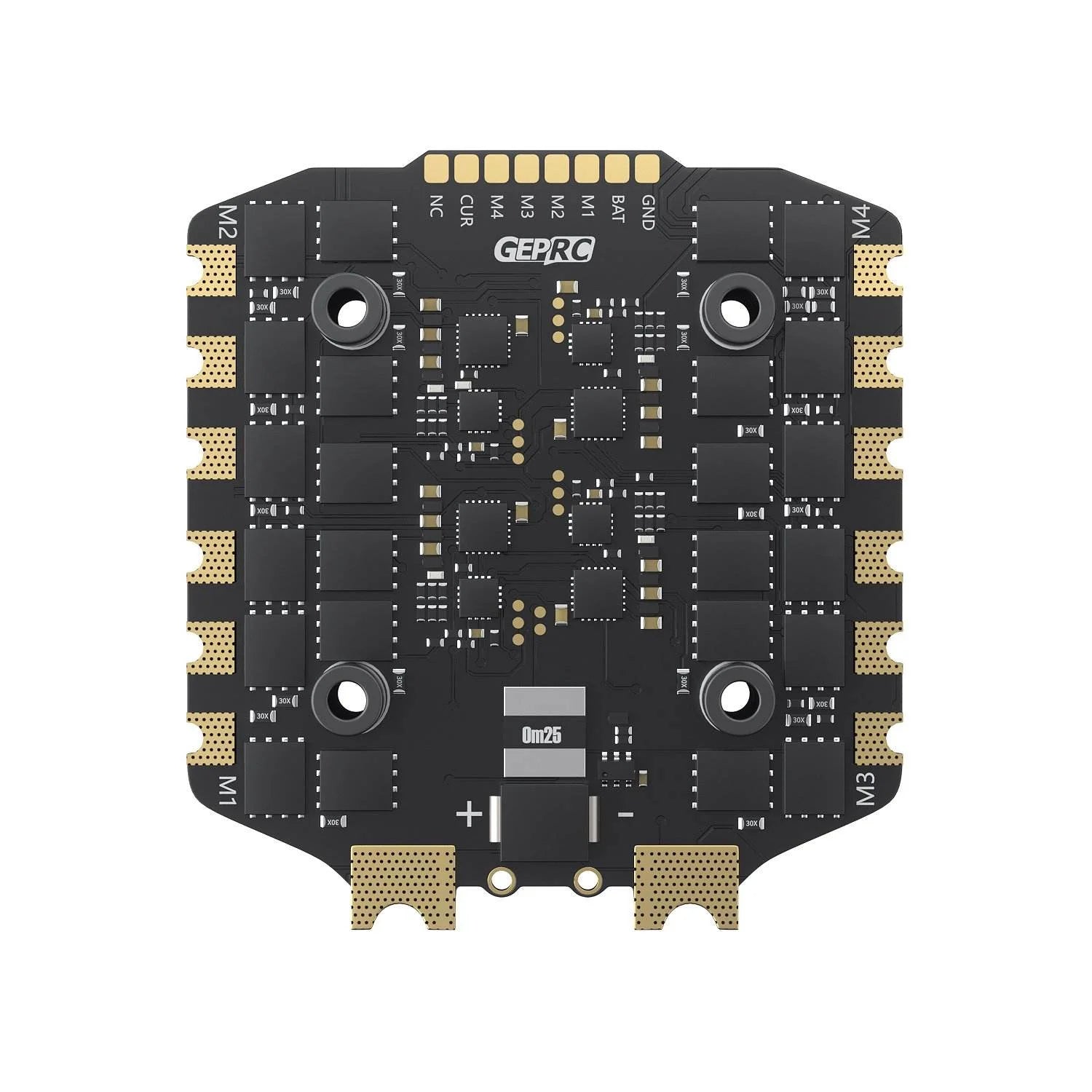

7. Powerful 80A 4-in-1 ESC

The included ESC delivers up to 80A continuous current, providing substantial power capacity for demanding motors and high-performance FPV configurations.

8. Up to 85A Peak Current

Supports up to 85A peak current for 5 seconds, providing additional power headroom during aggressive acceleration and high-load maneuvers.

9. BLHeli_32 32-Bit ESC Firmware

Powered by BLHeli_32 firmware for smooth and responsive throttle performance, with support for DShot150, DShot300, and DShot600 protocols.

10. Built for Large FPV & UAV Platforms

The high-current ESC design makes this stack particularly suitable for large FPV drones and heavy-duty multirotor platforms, including compatible 10–13 inch builds.

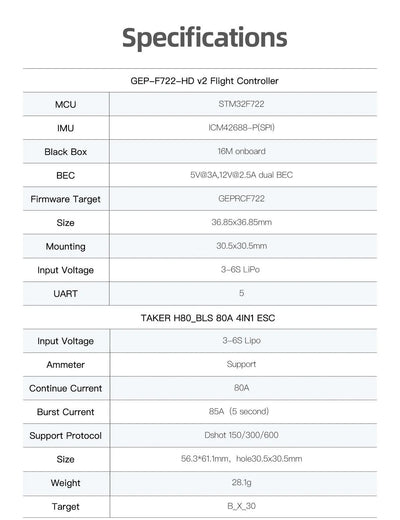

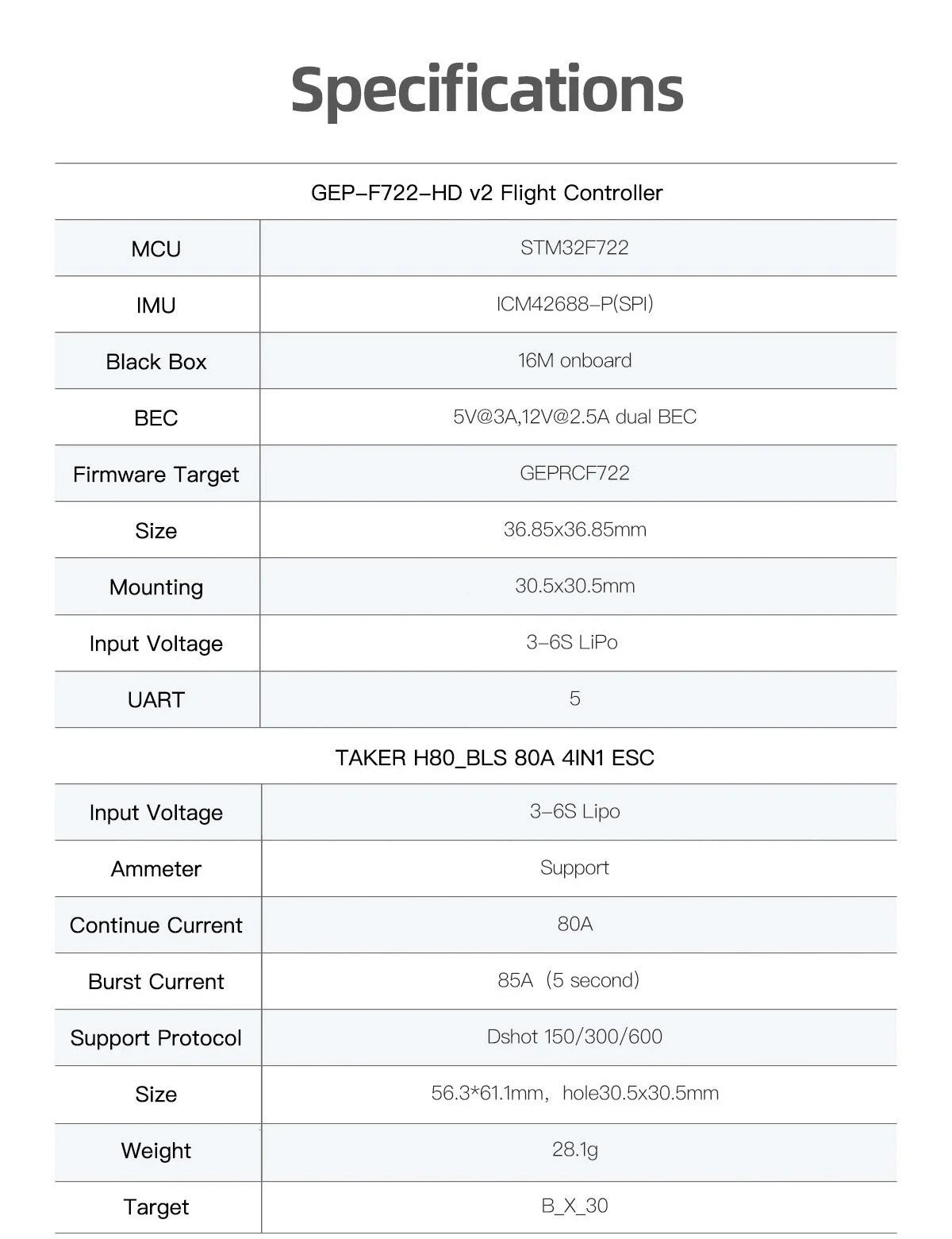

Specifications
