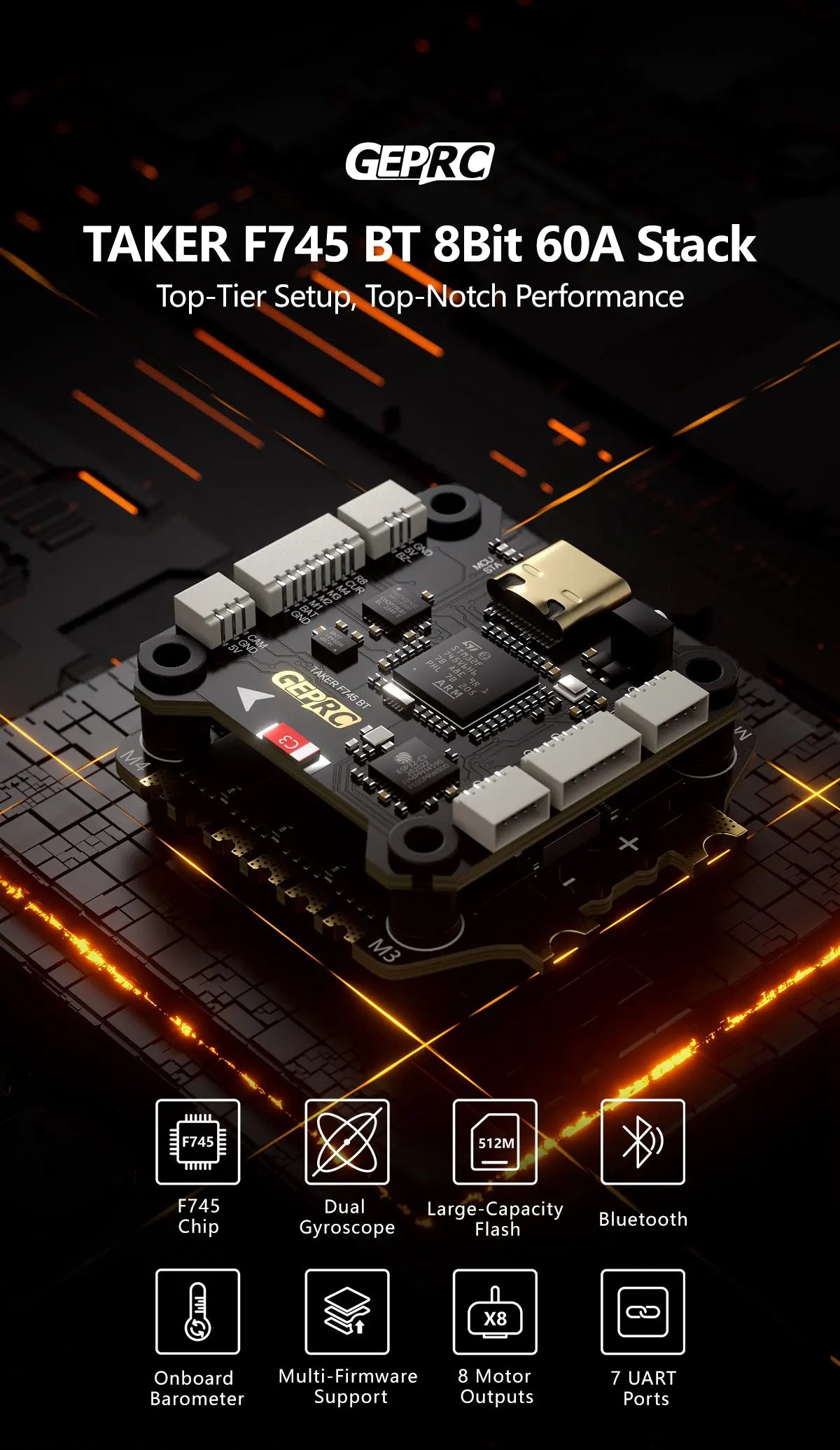

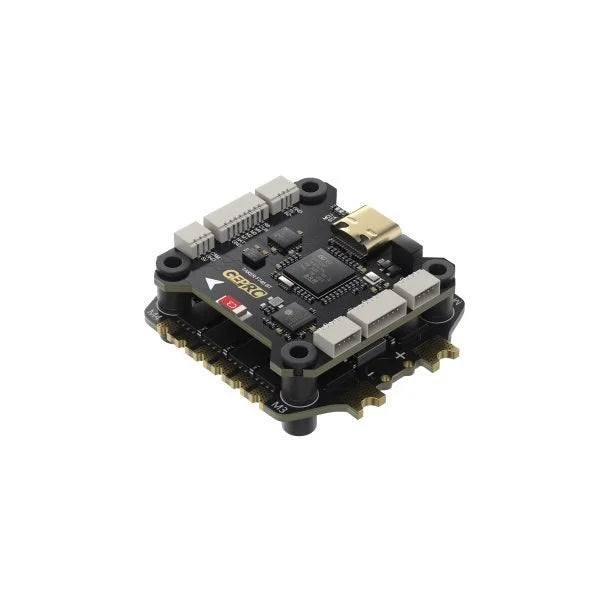

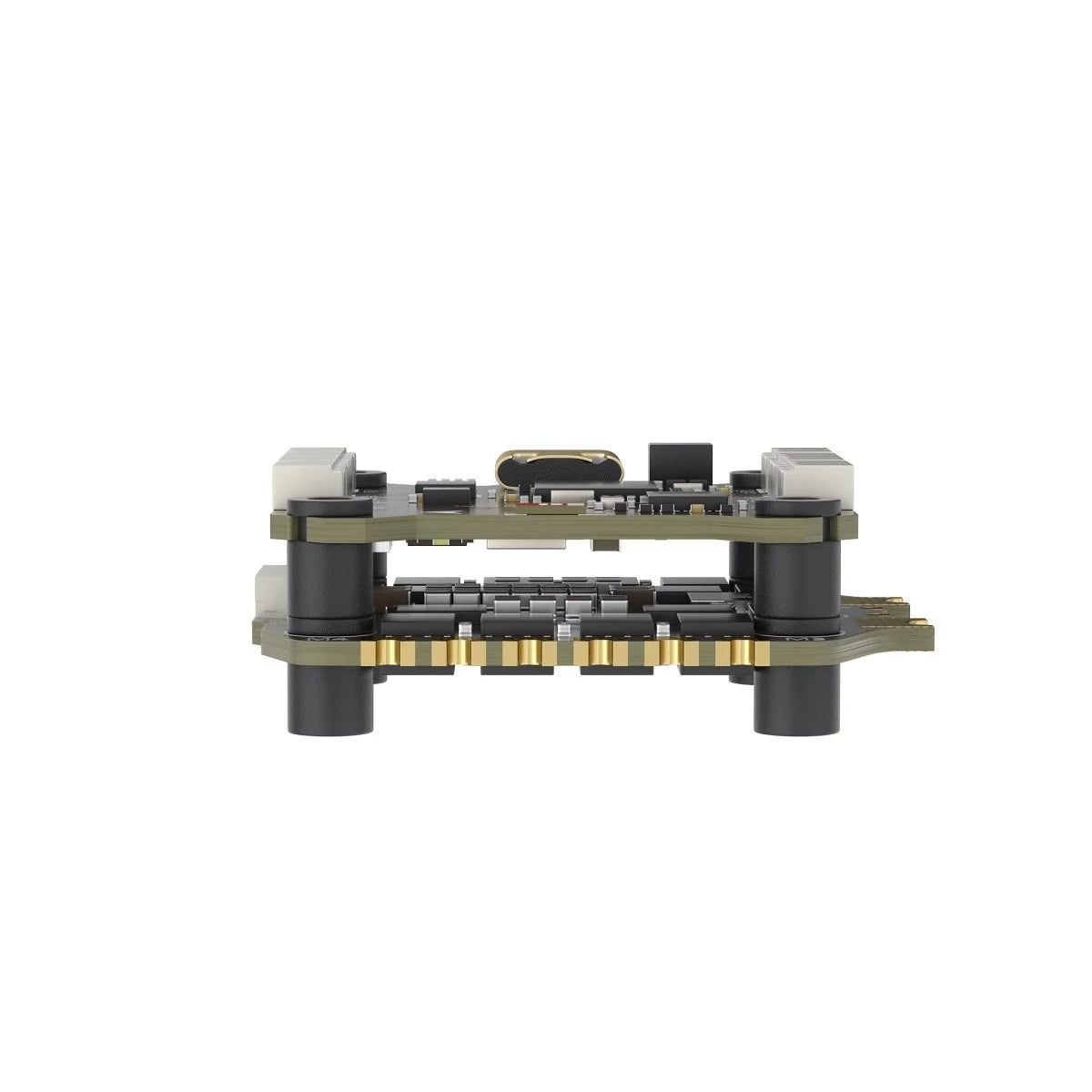

GEPRC TAKER F745 BT 60A 3-6S FC ESC Stack
Product Description
The GEPRC TAKER F745 BT 60A Stack is a high-performance flight controller and ESC combination designed for 5-inch FPV racing, freestyle, and high-performance drone builds.
Featuring an F745 flight controller, dual MPU6000 + ICM42688-P gyroscopes, integrated Bluetooth connectivity, and a massive 512MB onboard Blackbox, the stack provides precise flight control, convenient wireless tuning, and extensive flight data recording.
Paired with the TAKER H60 60A BLHeli_S 4-in-1 ESC, the system supports 3S–6S LiPo batteries with up to 65A burst current. Independent 5V/3A and 12V/2.5A BEC outputs provide stable power for peripherals and high-performance HD video systems.
Key Features

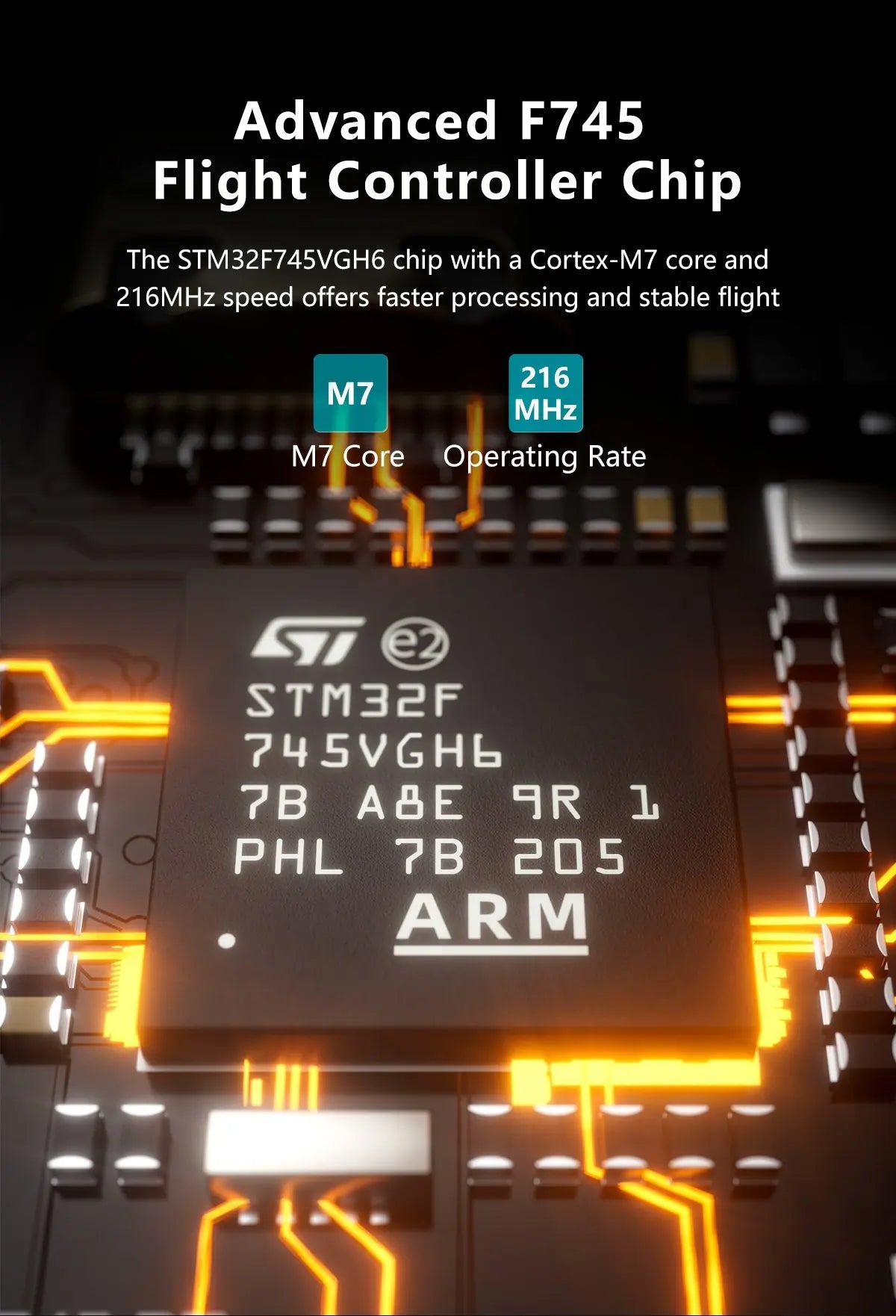

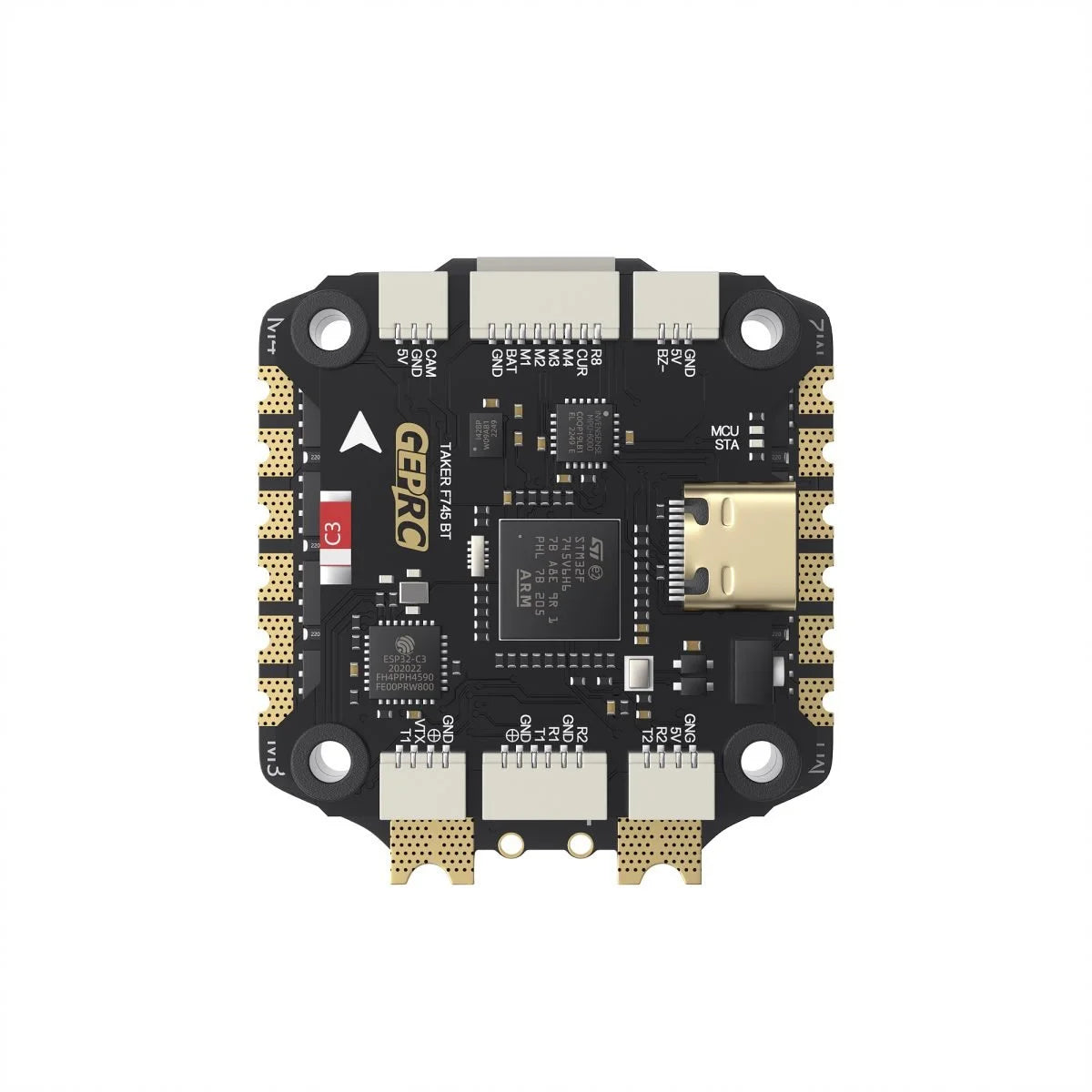

1. F745 High-Performance Flight Controller
Built around the powerful F745 MCU, providing fast processing performance for responsive and precise FPV flight control.

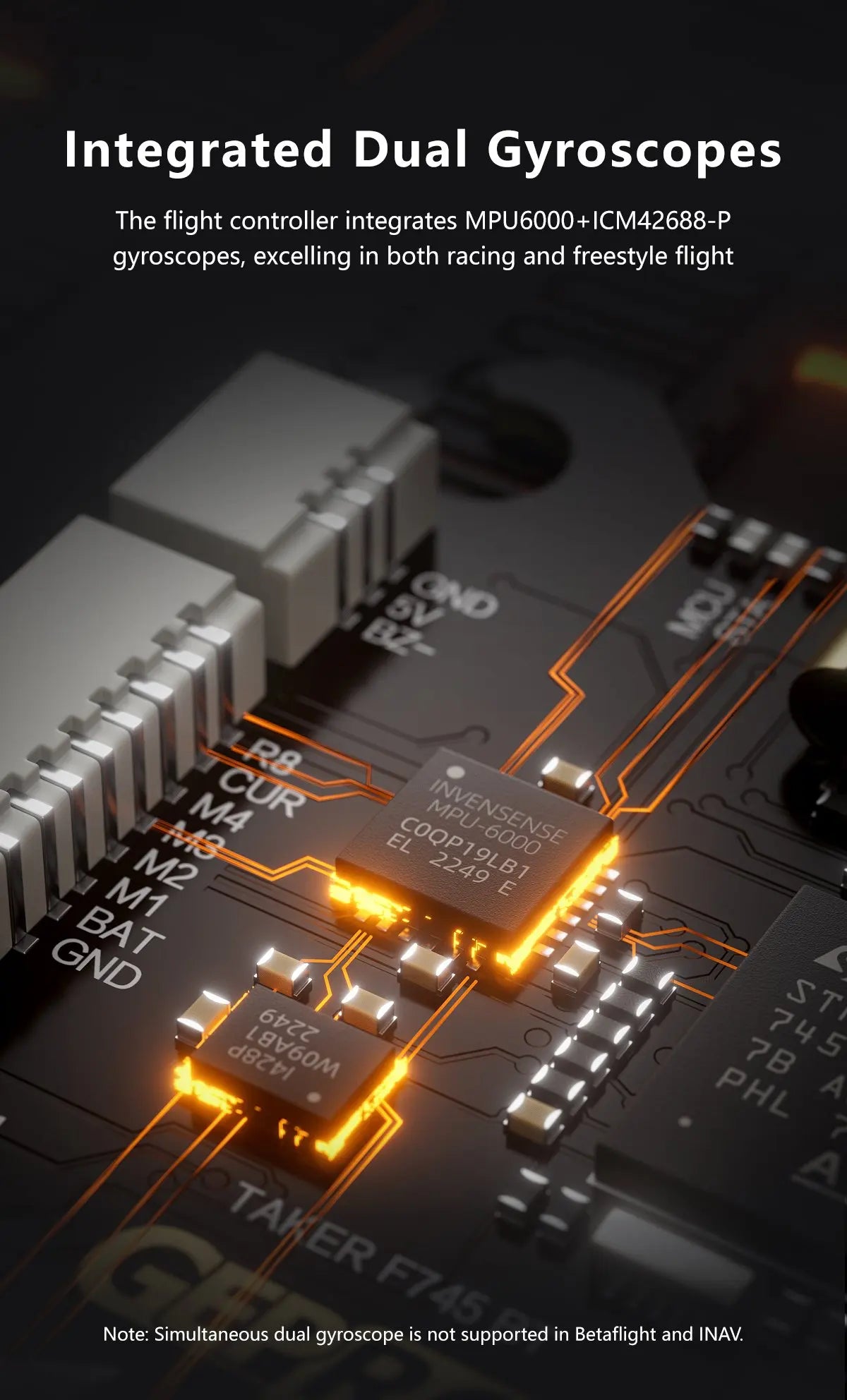

2. Dual Gyroscope – MPU6000 + ICM42688-P
Combines the proven MPU6000 with the modern ICM42688-P dual-gyro configuration for excellent vibration handling and smooth flight performance.

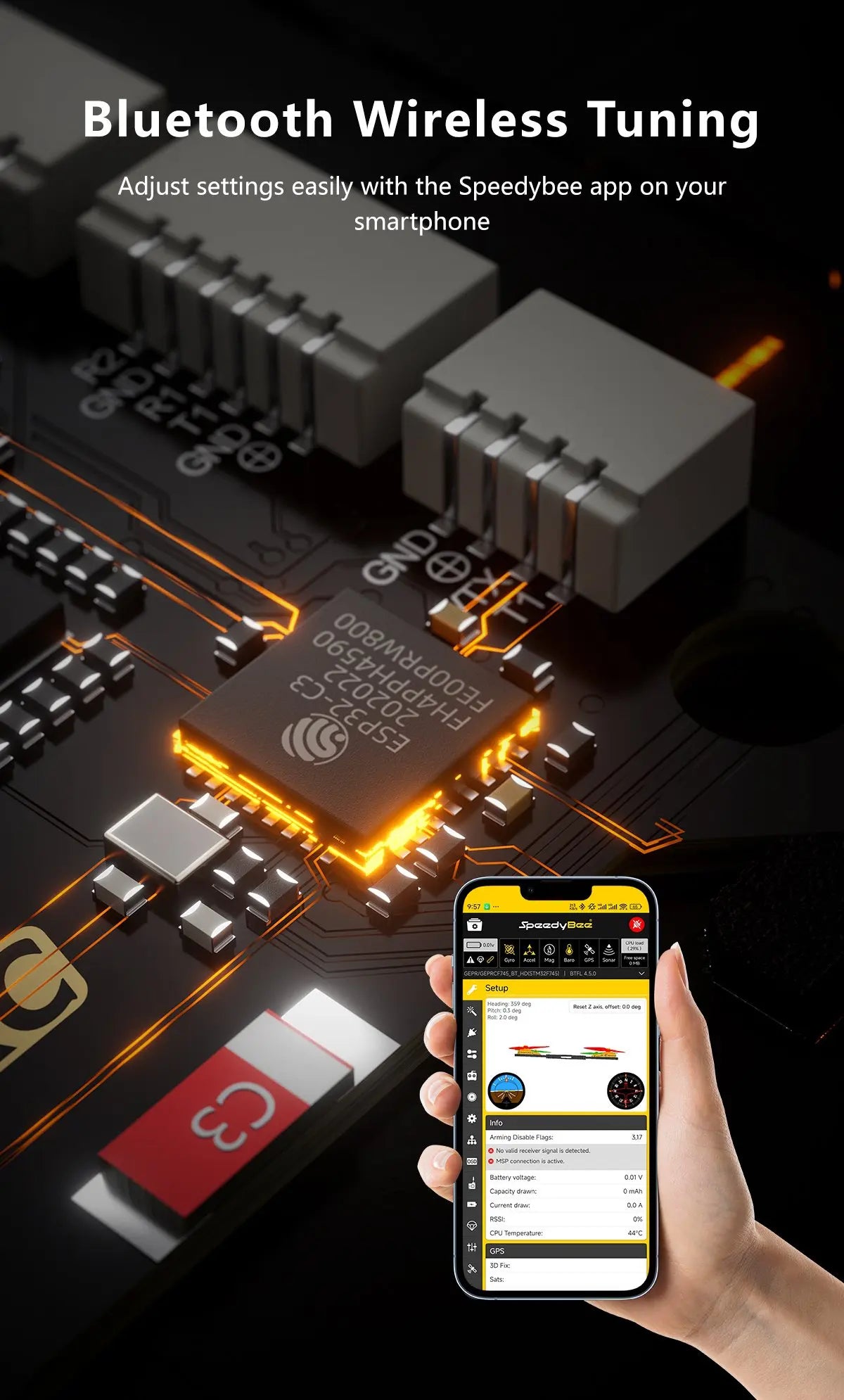

3. Built-in Bluetooth Connectivity
Integrated Bluetooth enables convenient wireless configuration. Connect to compatible Betaflight tools on your smartphone to adjust PIDs, rates, and other flight settings without a USB cable.

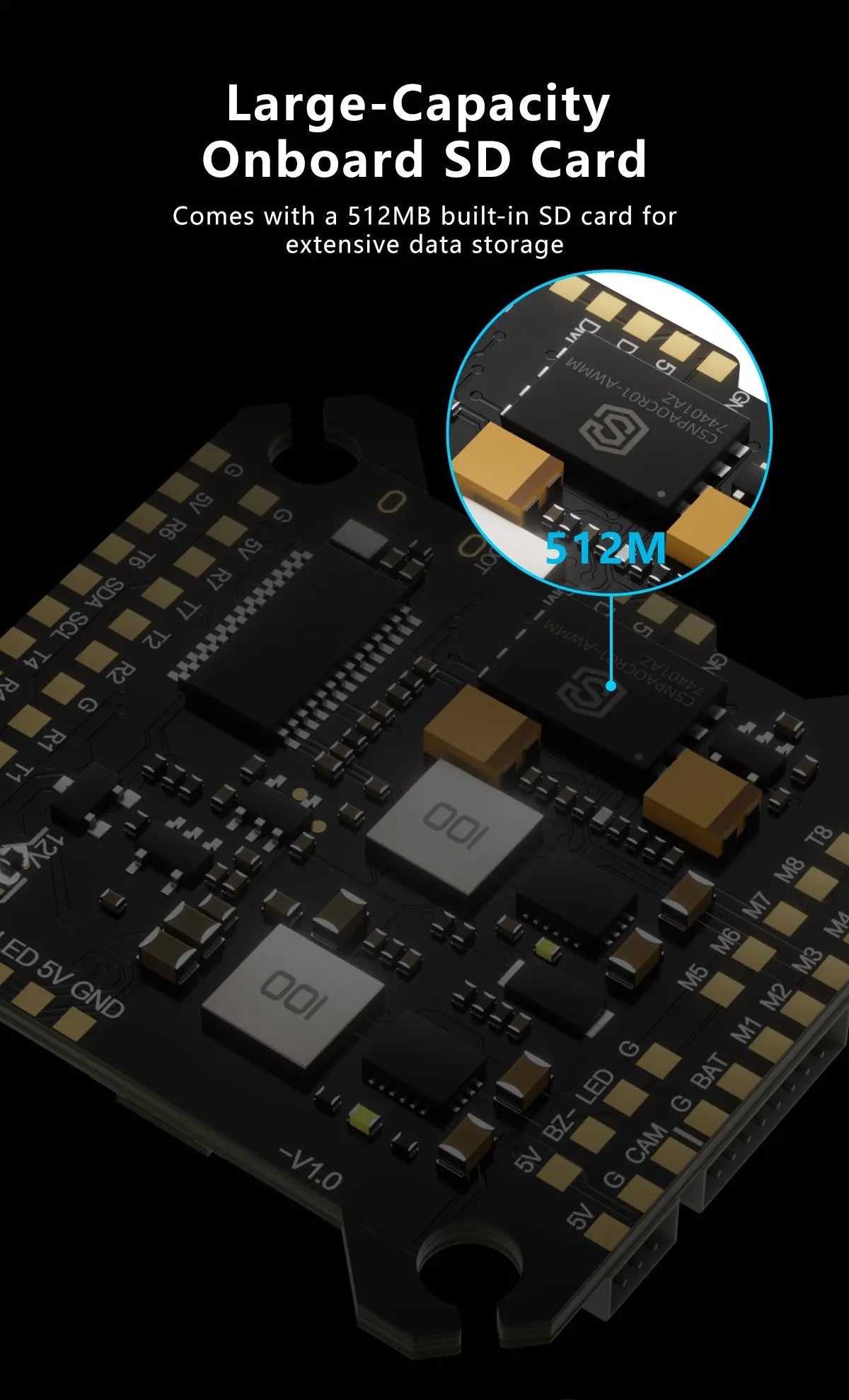

4. Massive 512MB Onboard Blackbox
Features 512MB of onboard Blackbox storage for extensive flight logging, making it easier to analyze flight data, diagnose issues, and fine-tune your FPV drone.

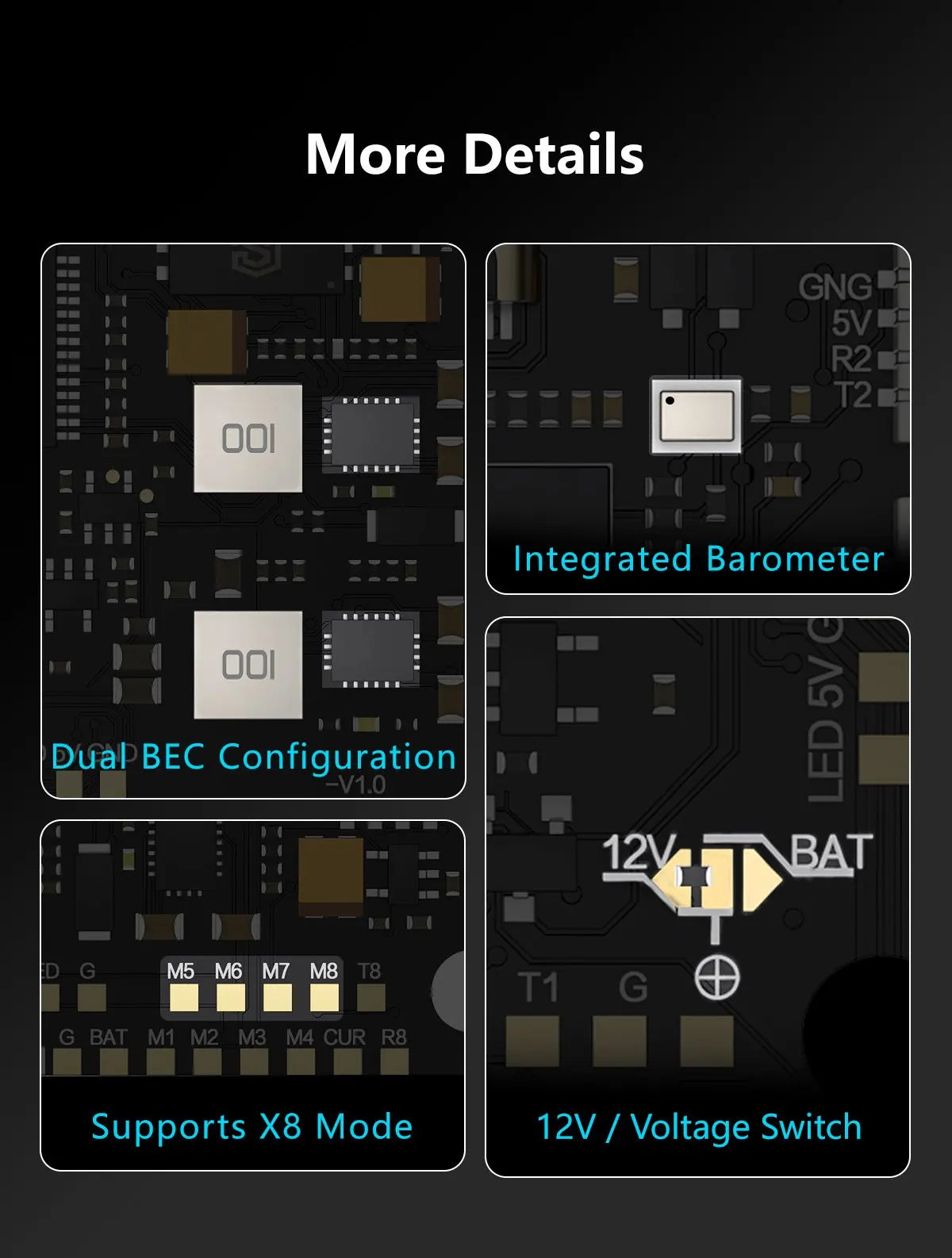

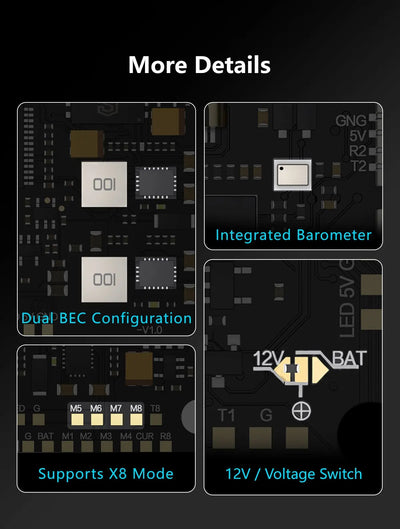

5. Independent Dual BEC Power System
Equipped with powerful 5V/3A and 12V/2.5A BEC outputs to provide stable power for receivers, cameras, VTX systems, and other FPV electronics.

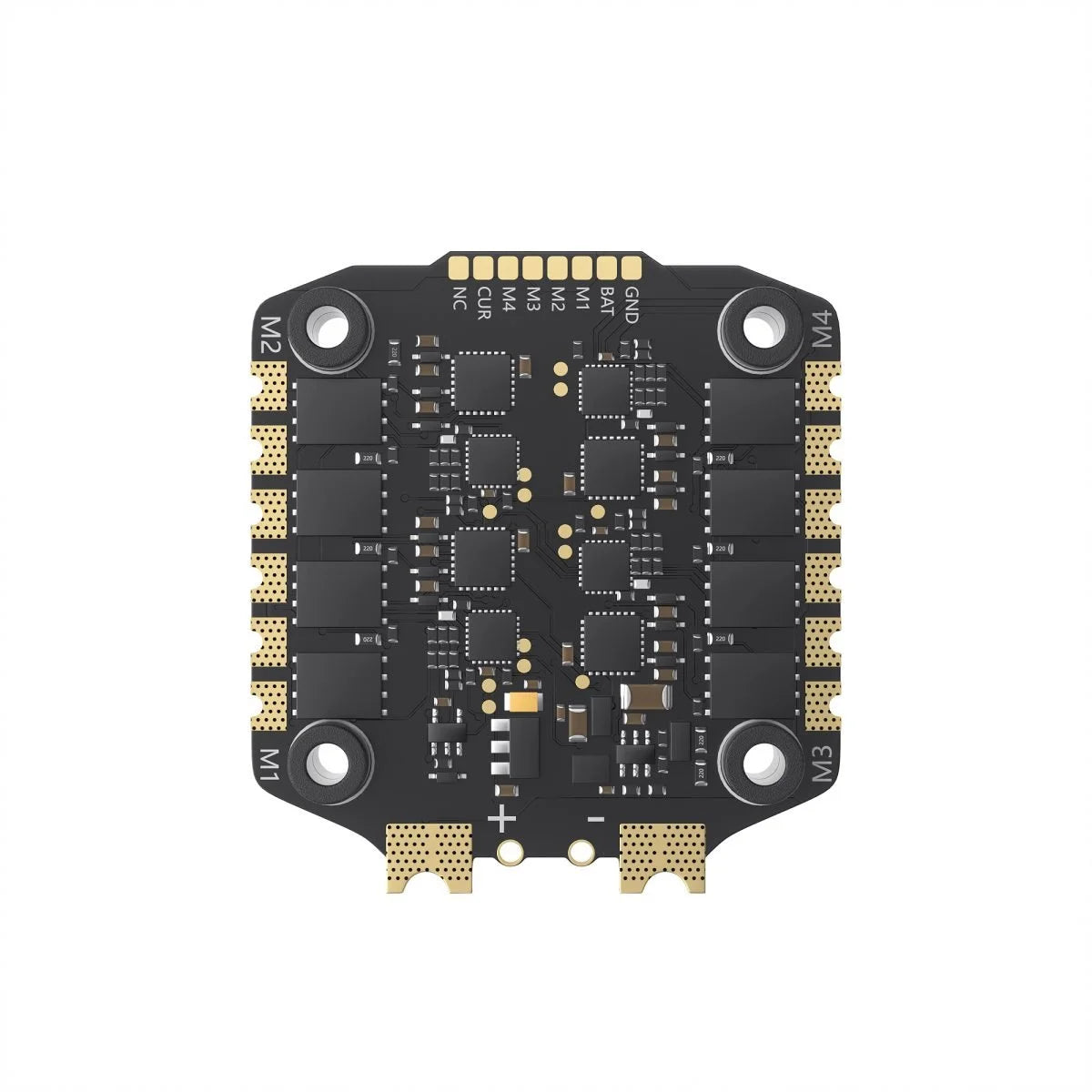

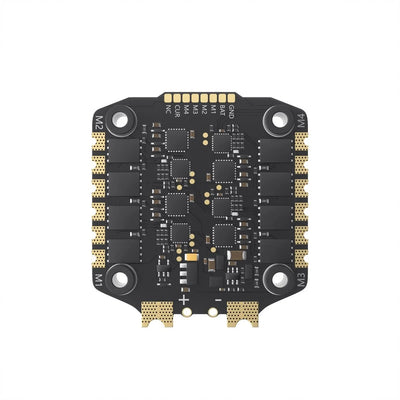

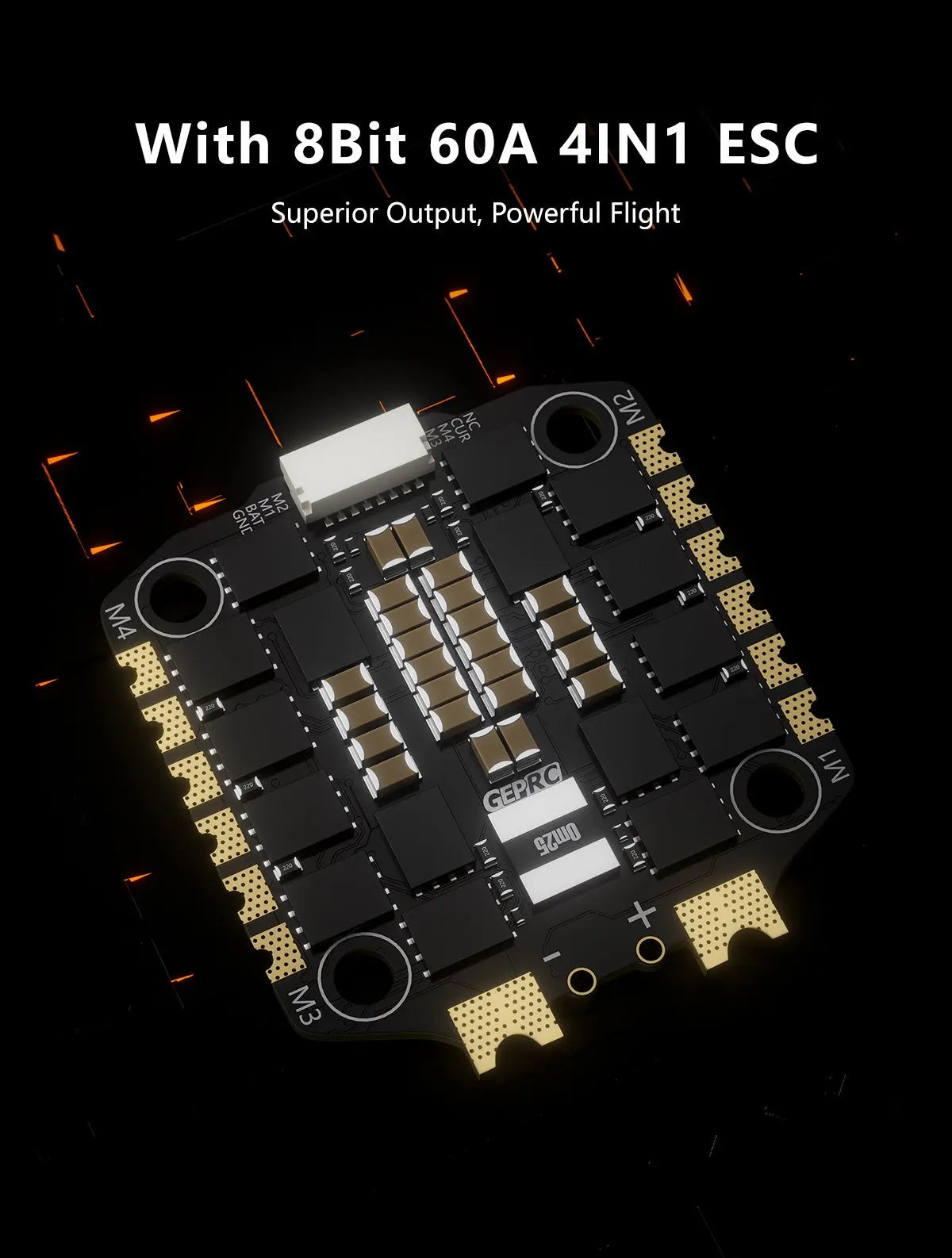

6. TAKER H60 60A 4-in-1 ESC
Includes the TAKER H60 60A BLHeli_S 4-in-1 ESC, providing reliable and efficient power delivery for demanding FPV motors.
7. 3S–6S LiPo Support
Compatible with 3S to 6S LiPo batteries, making the stack suitable for a wide variety of high-performance FPV configurations.
8. Up to 65A Burst Current
The ESC supports 60A continuous current with up to 65A burst current, providing additional power headroom for aggressive racing and freestyle maneuvers.
9. Ready for HD FPV Systems
The dedicated 12V/2.5A output provides stable power for compatible HD FPV equipment, making the stack suitable for modern digital FPV builds.

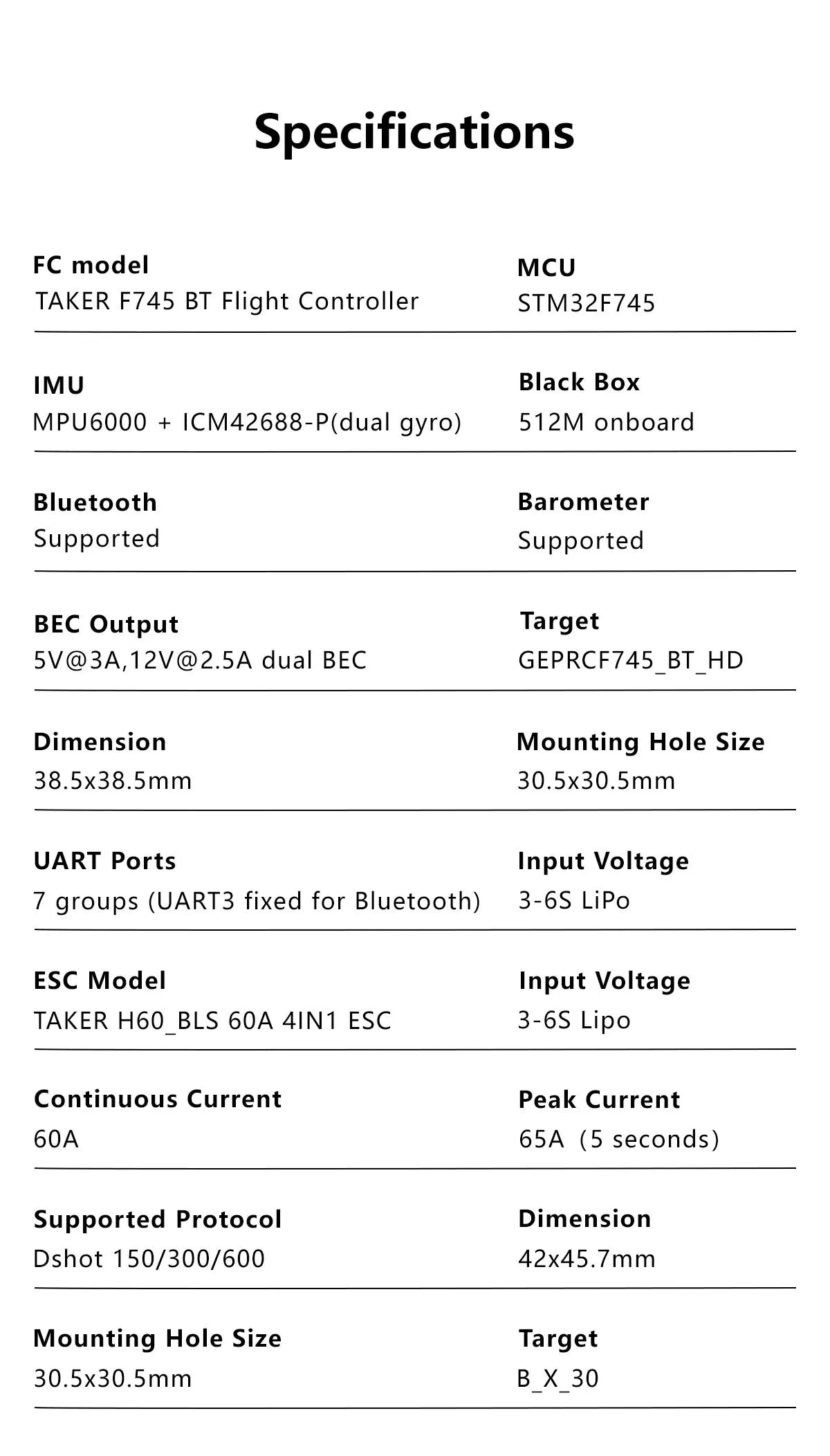

Specifications
| Item | Specification |
|---|---|
| Brand | GEPRC |
| Series | TAKER |
| Flight Controller | F745 |
| Gyroscope | MPU6000 + ICM42688-P |
| Gyro Configuration | Dual Gyro |
| Blackbox Storage | 512MB |
| Wireless Connectivity | Bluetooth |
| ESC | TAKER H60 60A 4-in-1 ESC |
| ESC Firmware | BLHeli_S |
| Continuous Current | 60A |
| Burst Current | 65A |
| Battery Support | 3S–6S LiPo |
| BEC Output | 5V/3A + 12V/2.5A |
| Application | FPV Racing / Freestyle Drone |
| Product Type | FC & ESC Stack |
