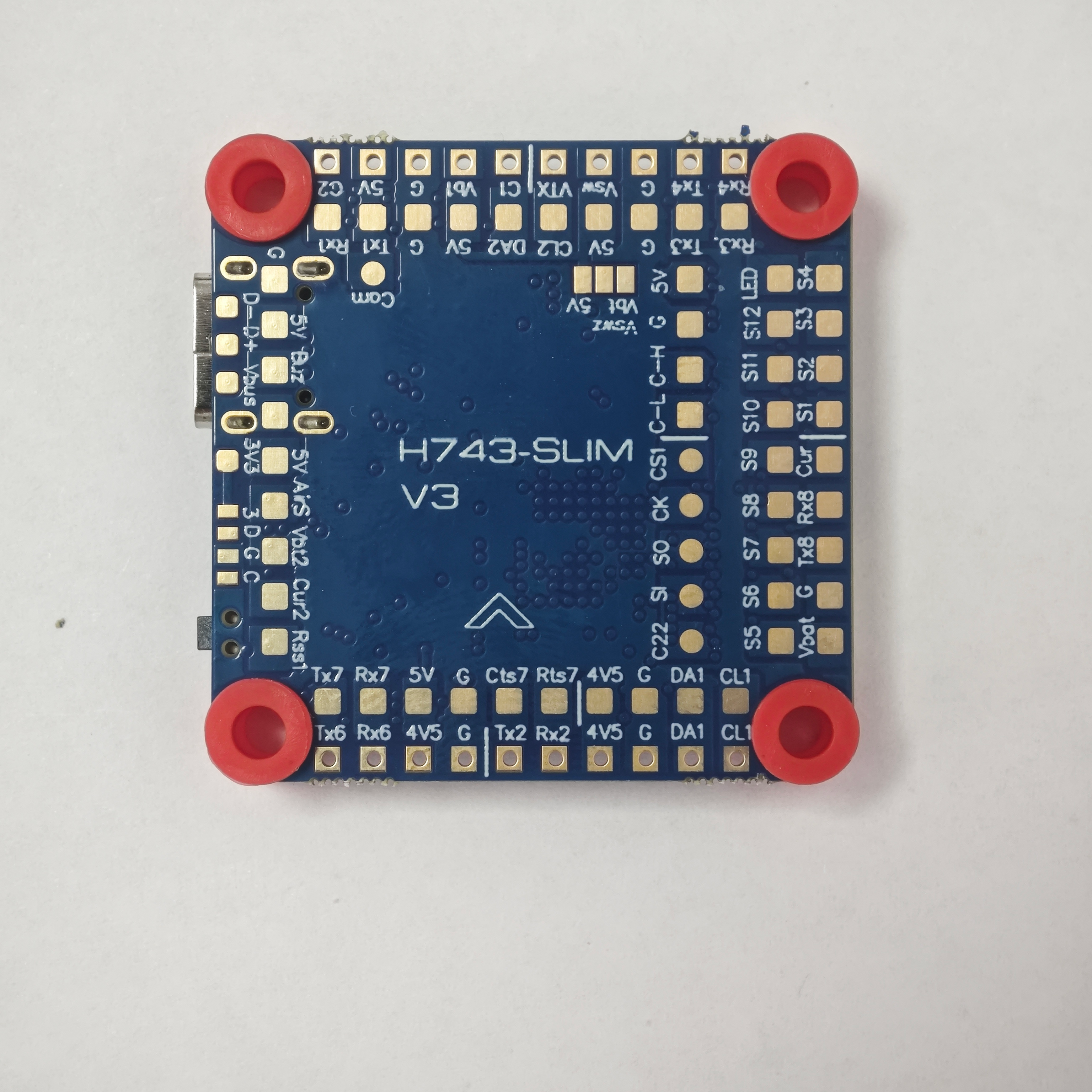

H743-SLIM V3 30.5mm FC Dual Gyros & DPS310 Baro for FPV Drone
Specifications
Model: H743-SLIM V3 Flight Controller
MCU: STM32H743VIH6 (480MHz, 1MB RAM, 2MB Flash)
IMU (Dual Gyro): MPU6000 (SPI1) & ICM20602 (SPI4)
Barometer: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD Card Slot (SDIO)
USB Interface: Type-C (USB 2.0)
UART Ports: 7 Sets (UART 1/2/3/4/6/7/8) with Built-in Inversion
PWM Outputs: 13 PWM Outputs (Includes LED Pad)
I2C Interface: 2 Sets
CAN Interface: 1 Set
ADC Channels: 6 Channels (VBAT, Current, RSSI, Airspeed, VBAT2, Current2)
SPI Interface: 1 × SPI3 Extension Port
Camera Support: Dual Camera Input Switching
Power Switch: 5V/VBAT Filtered Power On/Off Switch
HD VTX Support: DJI FPV OSD Supported via any spare UART
Status Indicators: 3 × LEDs (Blue/Red for FC Status, Red for 3.3V Power)
Connectors: 1 × JST-SH1.0 8-Pin, 1 × JST-GH1.25 4-Pin (CAN)
Dimensions: 36 × 36 × 5mm
Mounting Pattern: 30.5 × 30.5mm (4mm hole diameter)
Weight: 7g
Package Includes: 1 × H743-SLIM V3 Board, 6 × M4 to M3 Silicone Grommets, 1 × JST-SH1.0 8-Pin Cable (5cm), 2 × 8-Pin Connectors, 1 × JST-GH-4P CAN Cable (20cm)
H743 Extreme Processing Power: Driven by the ultra-fast STM32H743VIH6 MCU running at 480MHz with 2MB flash memory, providing unmatched computing capacity for complex flight algorithms and multi-tasking.
Dual IMU Sensor Redundancy: Features both the legendary low-noise MPU6000 and the high-speed ICM20602 gyros, offering premium signal filtering, redundancy, and exceptional anti-vibration performance.
Massive 7 UARTs & CAN Bus: Outfitted with 7 full hardware UARTs with built-in inversion and a dedicated CAN bus interface, ensuring unlimited connectivity for GPS, compass, ESC telemetry, and industrial peripherals.
13 PWM Outputs & MicroSD Logging: Offers up to 13 PWM channels perfect for X8 Octocopters, custom cinematic platforms, or wing servos, paired with an SDIO MicroSD card slot for high-rate blackbox logging.
Dual Camera & Filtered Power Switches: Integrated real-time switching between dual analog camera inputs, alongside a remote power switch for 5V/VBAT filtered lines to power cycle video transmitters mid-flight.
Robust 30.5mm Slim Profile: Packs high-end commercial specs into a lightweight 7g, standard 30.5mm layout with anti-vibration silicone grommets and plug-and-play JST ports for ultra-clean builds.
