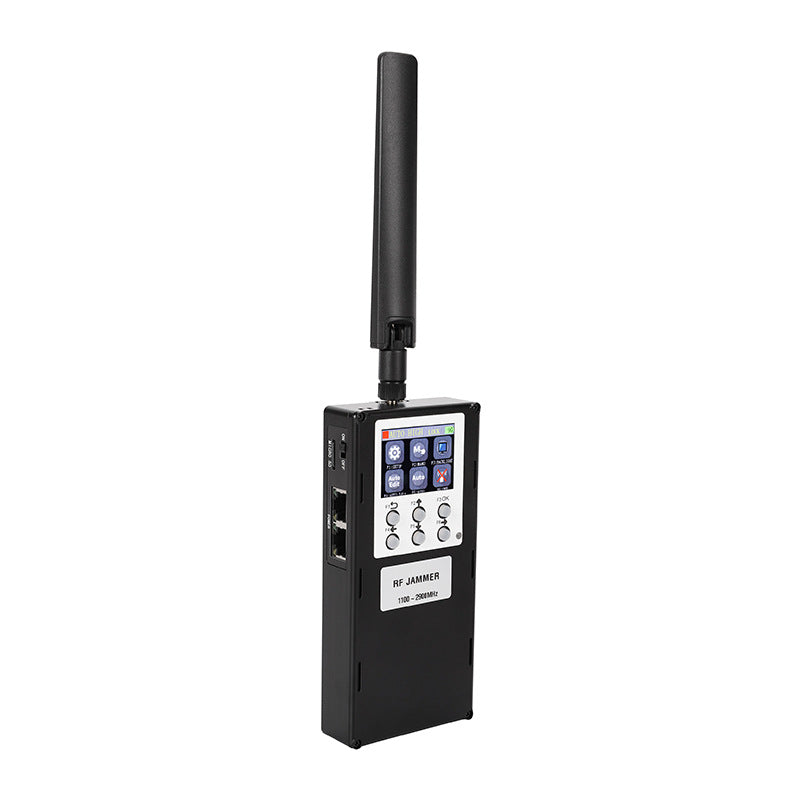

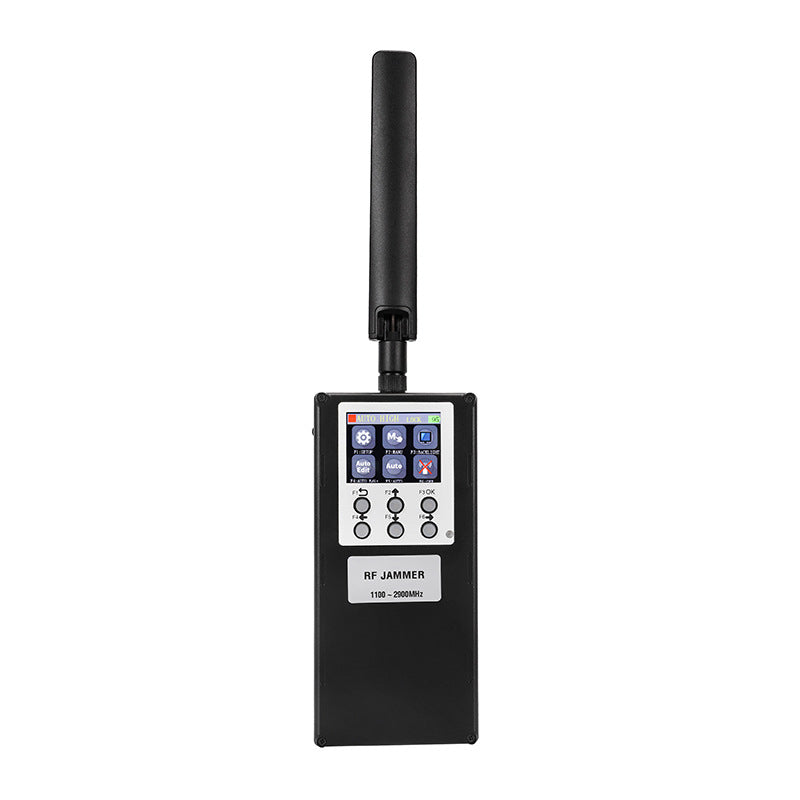

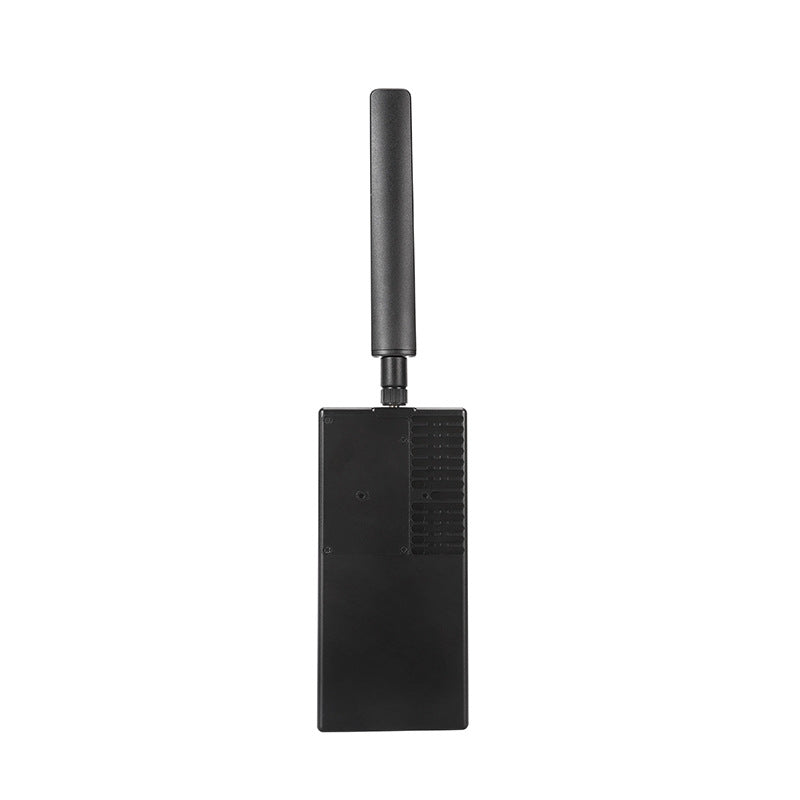

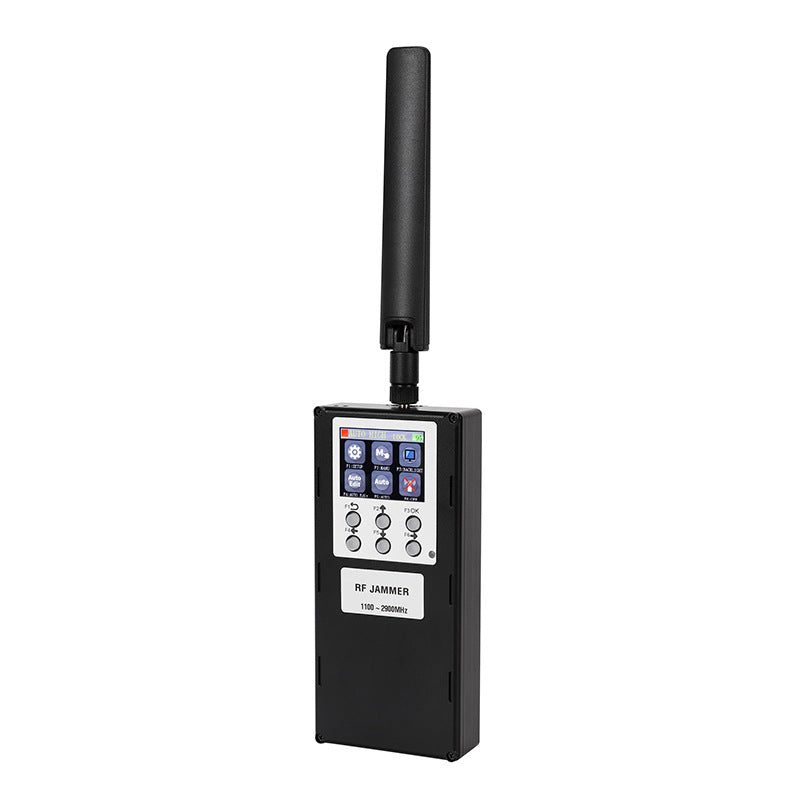

RD-GR-01 4W Wideband RF Signal Transmitter 300MHz–6GHz
RD-GR-01 4W Wideband RF Signal Transmitter 300MHz–6GHz
SKU Variants By Band & Power
-
Band A (300-3600MHz) - 1W Edition
-
Band A (300-3600MHz) - 4W Edition
-
Band B (2900-6000MHz) - 1W Edition
-
Band B (2900-6000MHz) - 4W Edition
Specifications
Model: RD-GR-01 RF Signal Transmitter
Frequency Range Band A: 300MHz - 3600MHz Version
Frequency Range Band B: 2900MHz - 6000MHz Version
Bandwidth: 0.1MHz - 90MHz Continuously Adjustable
In-Band Flatness: 2dB After Factory Calibration
Amplitude Accuracy: Plus or minus 2dBm
Signal Output Power Range: 36dBm 4 Watt Version or 30dBm 1 Watt Version
LCD Display: 2.0-Inch Screen 320 × 240 Pixels
Communication Interface: RS485 Protocol and Synchronization Protocol RJ45 Port
RF Interface: SMA-K
Waveform Library Capacity: 32GB
Battery Capacity: 4800mAh Typical Value
Battery Type: 21700 Lithium-Ion Cells
Charging Time: 4 to 5 Hours
Charging Interface: LAN Interface Port
Battery Life 1W Version: 7 Hours Continuous Operation
Battery Life 4W Version: 4 Hours Continuous Operation
Dimensions: 160mm × 70mm × 27mm Excluding Antenna Height
Operating Temperature: -20 to 45 degrees Celsius
Storage Temperature: -20 to 70 degrees Celsius
Ultra-Wide Frequency Coverage spans from 300MHz all the way up to 6GHz across Band A and Band B options, giving RF engineers and electronic combat researchers comprehensive frequency agility to test complex waveforms.
4W High-Power Output on the heavy-duty 36dBm hardware configuration provides massive signal propagation muscle, ensuring pristine transmission strength for long-range field testing and high-penetration barrier analysis.
0.1-90MHz Agile Bandwidth architecture allows for continuous micro-adjustments, empowering operators to tailor the transmission window perfectly to match specific communication standards or narrow-band signals.
32GB Built-In Waveform Storage offers a massive onboard library to load, cache, and execute custom signal protocols, complex frequency hopping patterns, and simulated environmental interference profiles directly from the hardware.
Dual Industrial Telemetry Links utilizing RS485 serial buses and RJ45 Ethernet synchronization ports enable multiple transmitter units to be chained together and precisely clocked for distributed multi-node antenna setups.
4800mAh 21700 Battery Bank delivers up to 7 hours of autonomous field operation on the 1W model, backed by an industrial LAN charging interface to support grueling deployment schedules far away from bench power grids.

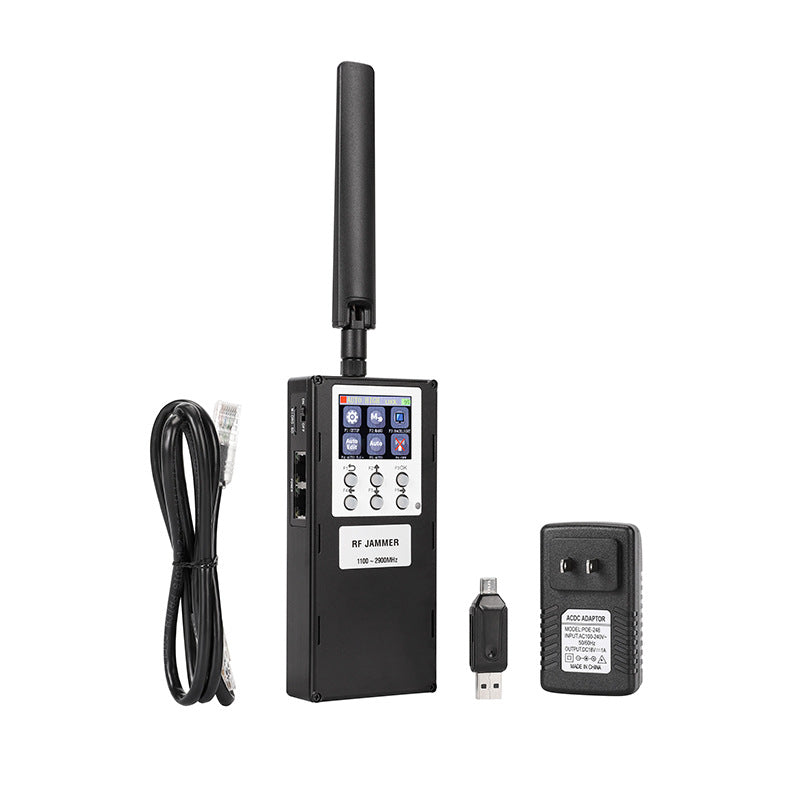

What is in the Box
1x RD-GR-01 Wideband RF Signal Transmitter
1x High-Gain Wideband SMA Antenna Set
1x Industrial Ethernet RJ45 Connection Cable
1x Heavy-Duty Protective Carrying Case Pack
